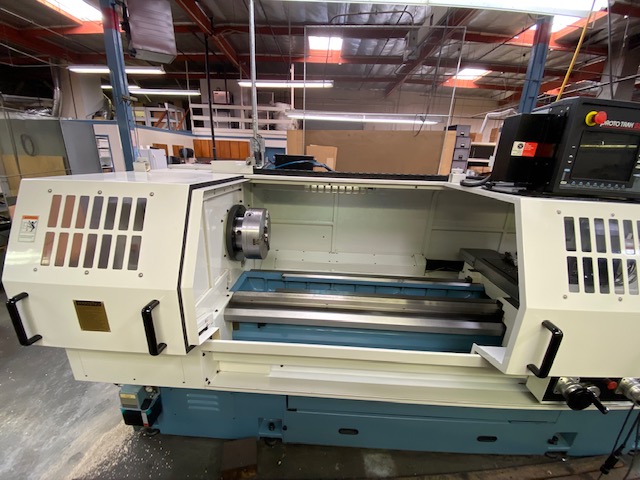

Southwestern Trak TRL 2470SX Toolroom Lathe 2015 SLX Control #5975

Southwestern Trak TRL 2470SX Toolroom Lathe 2015 SLX Control #5975

Pomona, CA

orCall 909-348-5610

Description

Used Southwestern Trak TRL 2470SX Toolroom Lathe 2015 SLX Control in excellent condition.


  • 24″ swing, 70″ between centers
  • Generous 4.09″ spindle through hole
  • 15 HP continuous spindle motor
  • Geared head for good performance at low speeds
  • Tapered roller bearings
  • High (aluminum) and low (steel) speed range settings

SPECIFICATIONS:

  • Height of Centers- 12″
  • Distance between centers- 70″
  • Swing over bed – 24″
  • Swing over saddle wings – 24″
  • Swing over cross slide – 14.5″
  • Cross slide travel – 12.5″
  • Tool section max – 1″
  • Coolant – 15 gal.
  • Bed Width – 14.57″
  • Bed Height – 15″
  • Spindle Nose – D1-8
  • Spindle through hole – 4.09″
  • Spindle Taper – MT #8
  • Taper in reduction sleeve – MT #5
  • Spindle diameter front bearing – 5.51″
  • Number of bearings – 2
  • Bearing Class (Radial Runout) – Normal
  • Number of Spindle Speed Ranges – 2
  • Spindle Speed Range (RPM) – 40-670, 100-1800
  • Spindle HP – 15


  • Power requirements, control – 110V; 1P; 12 A
  • Power requirements, machine – 220V;3P;60Hz
  • Amps Full Load Current – 42
  • Dimensions net – 129 x 60 x 77″
  • Dimensions shipping  – 134 x 64 x 77″
  • Weight net – 6500 lbs.
  • Weight ship – 6900 lbs.
  • Tail stock quill travel – 8.5″
  • Quill diameter – 3.5″
  • Quill taper hole – MT#5
  • Coolant pump motor – 1/8 HP
  • Dynamic spindle motor brake
  • Way surface hardness – 480-560 HB
  • Quiet operation
  • Dual sliding doors to control chips and coolant with one door removable
  • Meehanite cast monolithic base
  • Heavy ribbed base construction
  • Bedways hardened and ground
  • Sliding surfaces Turcite coated
  • Dovetails on cross slide, V-ways on saddle
  • Adjustable saddle gibs
  • Maximum rapid X, Z – 100, 250 IPM


Specifications

ManufacturerSouthwestern
ModelTrak TRL 2470SX T
Year2015
ConditionUsed
Serial Number151DT455
Stock Number5975
