(2014) 24" x .236" SERVOPRESSE SP SERIES SERVO COMPACT PRESS FEED LINE #8415
Have one to sell?
ConditionUsed
1 available
$79,500.00 USD
2014 SERVOPRESSE SP Series servo press feed line with double-reel payoff, straightener-feeder and Allen-Bradley servo drive control. Handles material 4.7–23.9 in. wide and 0.024–0.236 in. thick; 13,230 lb. max coil capacity. Used.
24" x .236" SERVOPRESSE SP SERIES SERVO COMPACT PRESS FEED LINE, NEW 2014
Model: SP
Brand: SERVOPRESSE
Stock Number: 117529
Condition: Not specified
Year: 2014

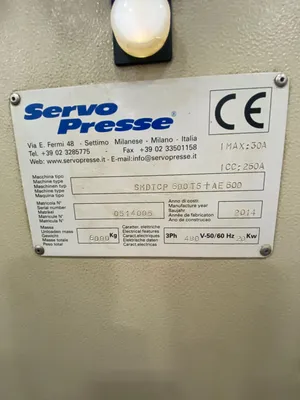

MANUFACTURER - SERVO PRESSE
MODEL - SMDTCP 600 AE T6
TYPE - SERVO PRESS FEED LINE
YEAR - 2014
MAXIMUM COIL WEIGHT - 13,230 LBS (6000 KG)
MATERIAL WIDTH RANGE - 4.7" - 23.9" (120-606MM)
MATERIAL THICKNESS RANGE - 0.024" - 0.236" (0.6MM - 6MM)
INSIDE DIAMETER - 18.5" - 22.0" (470MM - 560MM)
MAXIMUM OUTSIDE DIAMETER - 63" (1600MM)
NUMBER OF ROLLS IN STRAIGTENER-FEEDER - 11 (9 WORK & 2 ENTRY PINCH ROLLS)
ROLL DIAMETER - 3.15" (80MM) - OFFSET 3.35" (85MM)
PASSLINE - 47.6" (1210) +/- 3.94" (100MM) OVER FLOOR
VOLTAGE - 3 PH, 480 V, 50/60 HZ, 20 KW

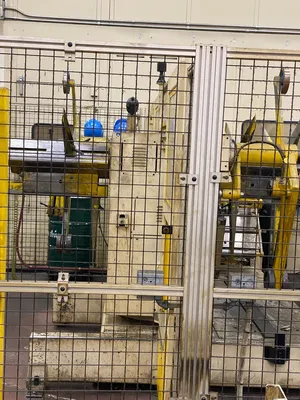

LINE CONSISTS OF:

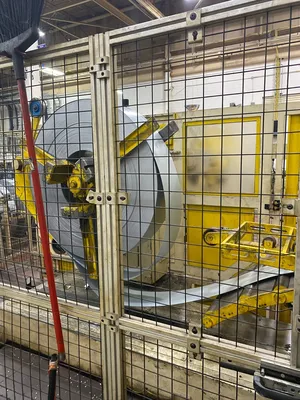

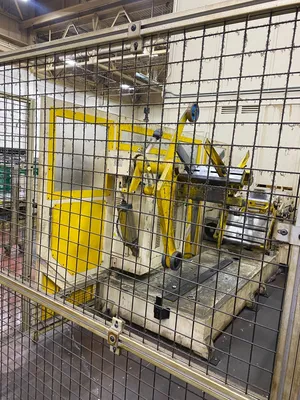

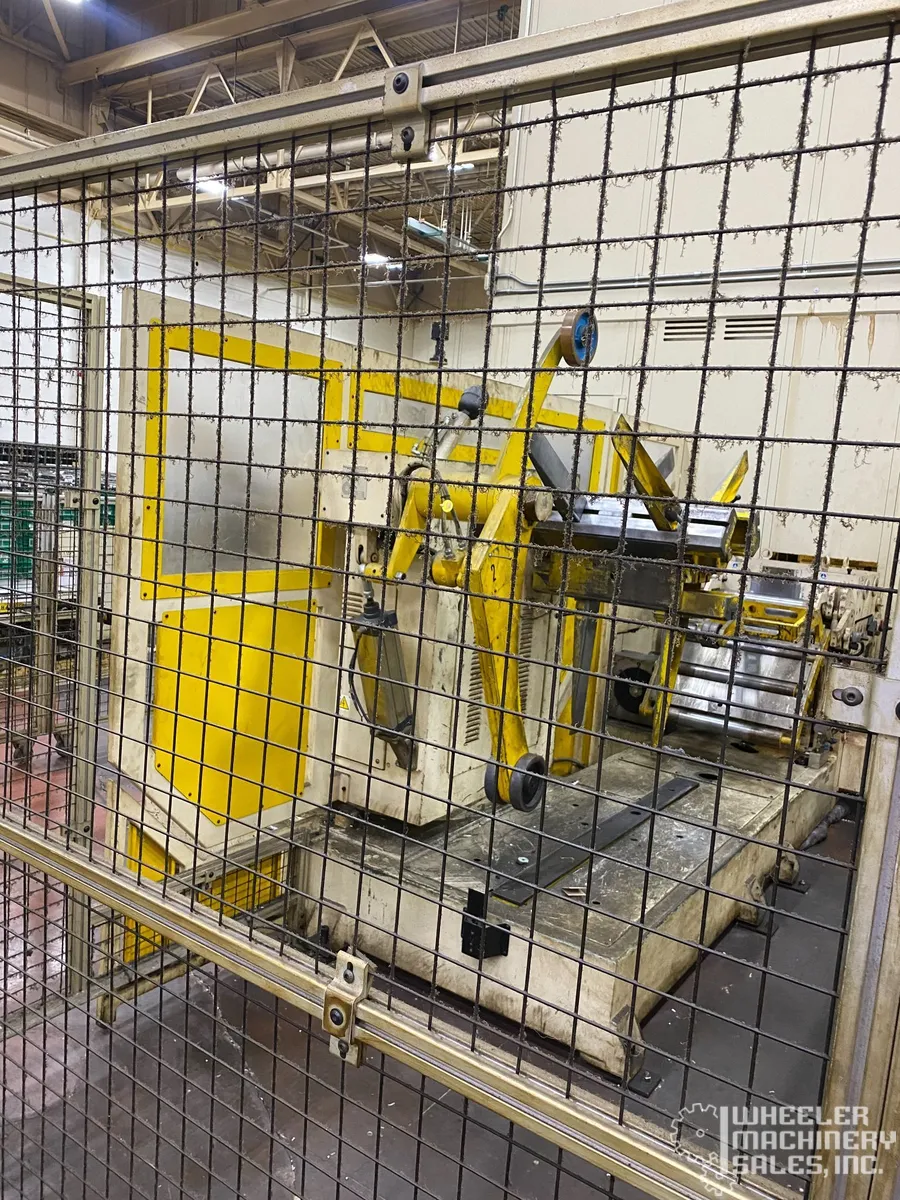

SERVOPRESSE DOUBLE REEL PAYOFF

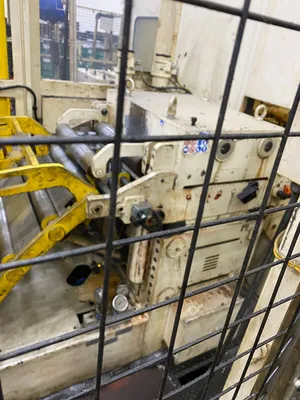

STRAIGHTENER-FEEDER
ALLEN BRADLEY SERVO DRIVE CONTROL SYSTEM
2014 SERVOPRESSE SP Series servo press feed line with double-reel payoff, straightener-feeder and Allen-Bradley servo drive control. Handles material 4.7–23.9 in. wide and 0.024–0.236 in. thick; 13,230 lb. max coil capacity. Used.
24" x .236" SERVOPRESSE SP SERIES SERVO COMPACT PRESS FEED LINE, NEW 2014
Model: SP
Brand: SERVOPRESSE
Stock Number: 117529
Condition: Not specified
Year: 2014
MANUFACTURER - SERVO PRESSE
MODEL - SMDTCP 600 AE T6
TYPE - SERVO PRESS FEED LINE
YEAR - 2014
MAXIMUM COIL WEIGHT - 13,230 LBS (6000 KG)
MATERIAL WIDTH RANGE - 4.7" - 23.9" (120-606MM)
MATERIAL THICKNESS RANGE - 0.024" - 0.236" (0.6MM - 6MM)
INSIDE DIAMETER - 18.5" - 22.0" (470MM - 560MM)
MAXIMUM OUTSIDE DIAMETER - 63" (1600MM)
NUMBER OF ROLLS IN STRAIGTENER-FEEDER - 11 (9 WORK & 2 ENTRY PINCH ROLLS)
ROLL DIAMETER - 3.15" (80MM) - OFFSET 3.35" (85MM)
PASSLINE - 47.6" (1210) +/- 3.94" (100MM) OVER FLOOR
VOLTAGE - 3 PH, 480 V, 50/60 HZ, 20 KW
LINE CONSISTS OF:
SERVOPRESSE DOUBLE REEL PAYOFF
STRAIGHTENER-FEEDER
ALLEN BRADLEY SERVO DRIVE CONTROL SYSTEM
