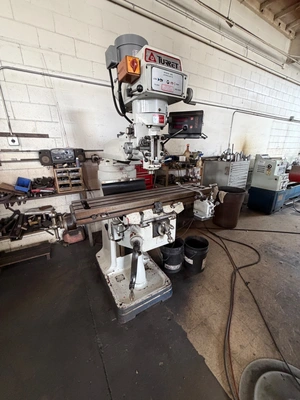

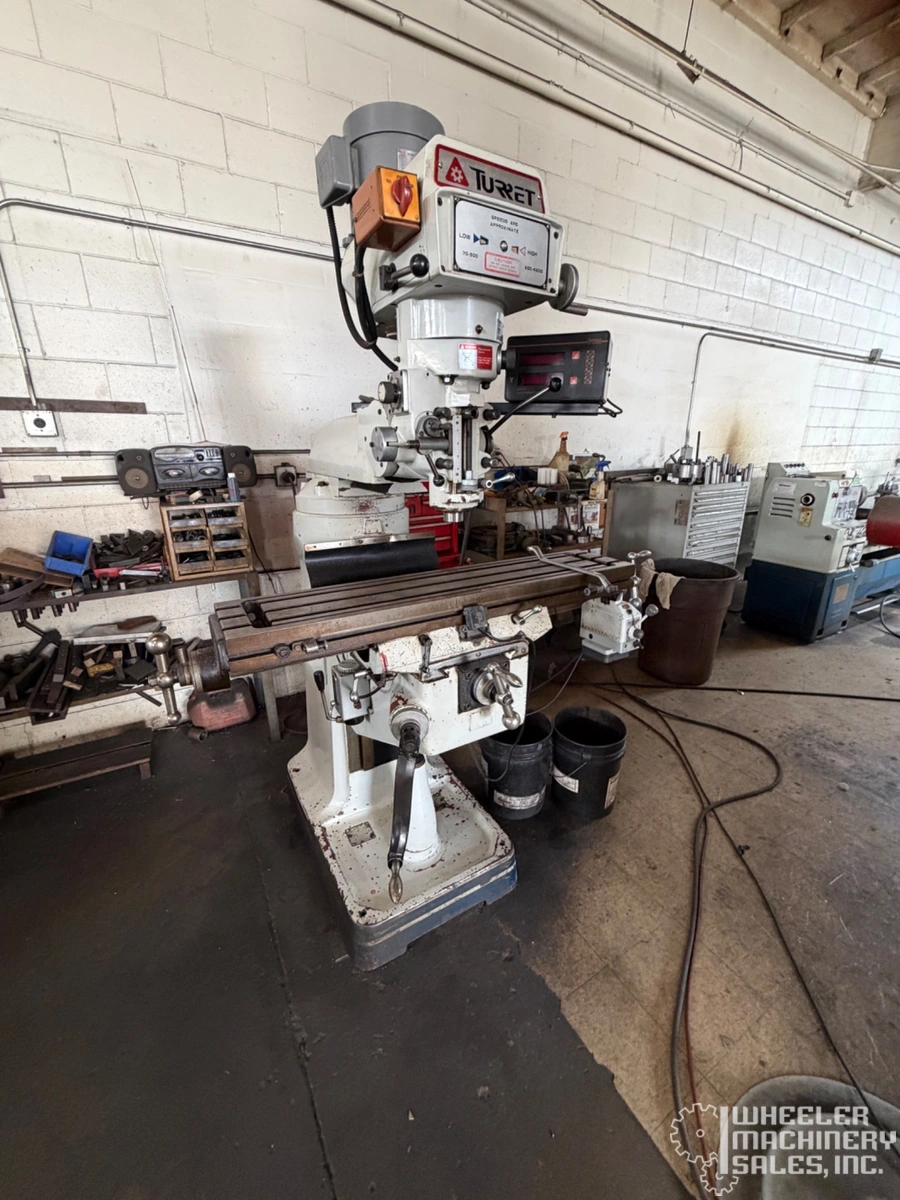

ATRUMP K3V Vertical Mill #8412 #1
Have one to sell?
ConditionUsed
1 available
$6,500.00 USD
ATRUMP K3V vertical mill available; used condition. Features a 9" x 49" table and 30.75" long travel. Powered by a 3 hp motor, perfect for precise milling tasks. Reliable performance from a trusted manufacturer.
ATRUMP K3V Vertical Mill #8412 #1
SPECIFICATIONS:
Standard Table Size: 9" x 42"
X-Axis Travel with 52" Table: 24-3/4"
Y-Axis Travel: 17"
Vertical Knee Travel: 19-5/8"
Quill Diameter: 3-3/8"
Quill Travel: 4-7/8"
Quill Power Feeds: 0.002", 0.004", 0.006" per revolution
Spindle Taper: R-8
Spindle Motor: 3 HP
Variable Spindle Speeds at 60 Hz: 70–4,200 RPM
Approximate Weight: 3,307 lbs.
Approximate Overall Dimensions: 69-1/4" W x 77-7/8"
EQUIPPED WITH:
Sargon 2-Axis Digital Read Out
X-Axis Power Feed
Variable Speed Head
One Shot Lube
ATRUMP K3V vertical mill available; used condition. Features a 9" x 49" table and 30.75" long travel. Powered by a 3 hp motor, perfect for precise milling tasks. Reliable performance from a trusted manufacturer.
ATRUMP K3V Vertical Mill #8412 #1
SPECIFICATIONS:
Standard Table Size: 9" x 42"
X-Axis Travel with 52" Table: 24-3/4"
Y-Axis Travel: 17"
Vertical Knee Travel: 19-5/8"
Quill Diameter: 3-3/8"
Quill Travel: 4-7/8"
Quill Power Feeds: 0.002", 0.004", 0.006" per revolution
Spindle Taper: R-8
Spindle Motor: 3 HP
Variable Spindle Speeds at 60 Hz: 70–4,200 RPM
Approximate Weight: 3,307 lbs.
Approximate Overall Dimensions: 69-1/4" W x 77-7/8"
EQUIPPED WITH:
Sargon 2-Axis Digital Read Out
X-Axis Power Feed
Variable Speed Head
One Shot Lube
