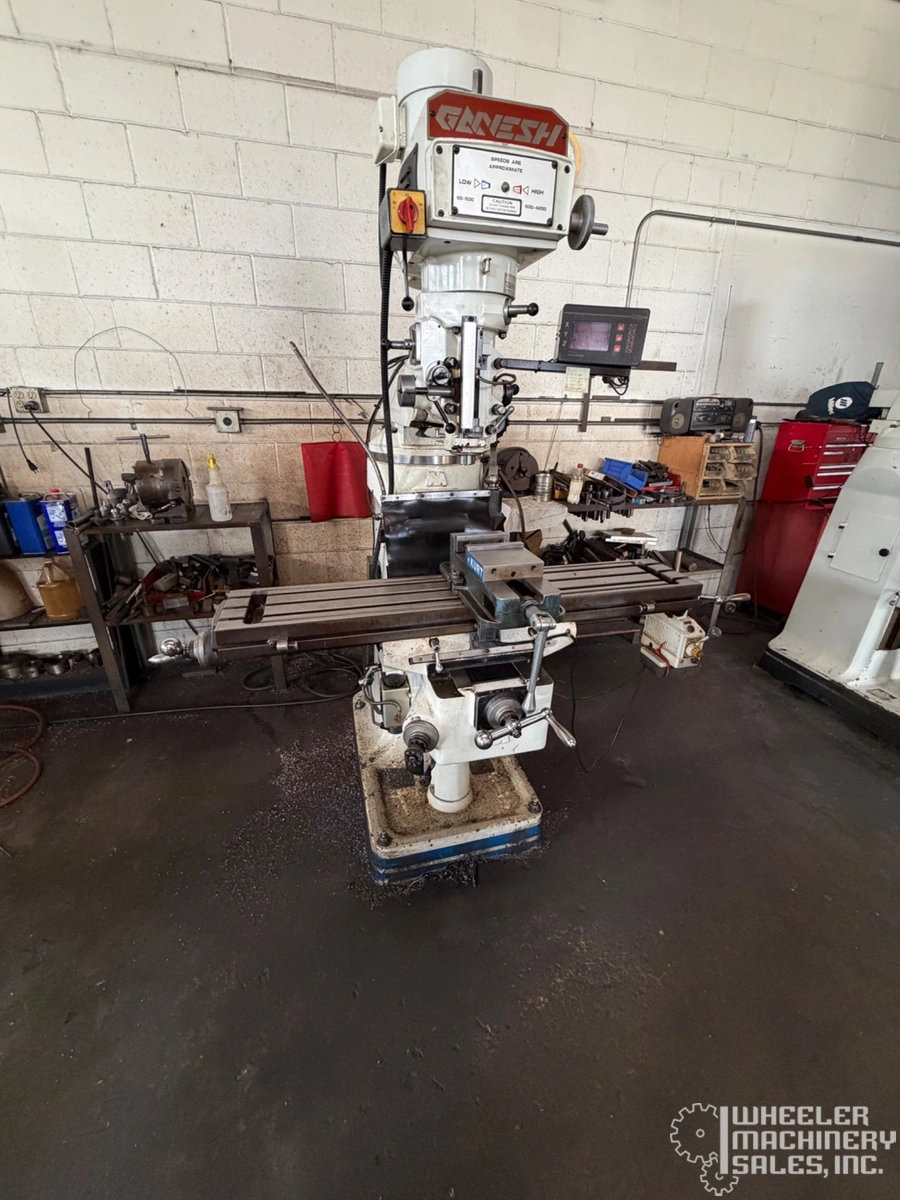

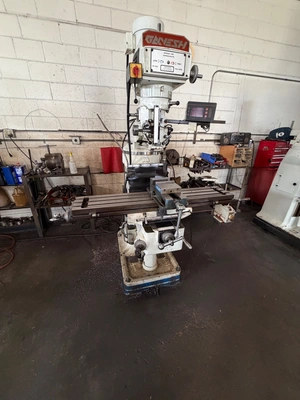

GANESH GMV-2 Vertical Mill #8411 #1
Have one to sell?
ConditionUsed
1 available
$7,950.00 USD
Used GANESH GMV-2 Vertical Mill features a 9"x49" table, 3 HP spindle motor, and speeds of 60–4,500 RPM. Equipped with X-axis power feed, DRO, and 6" Kurt vise. Ideal for precision milling tasks. Contact for details.
GANESH GMV-2 Vertical Mill #8411 #1
SPECIFICATIONS:
Table Size: 9” x 49”
X-Axis Travel: 38”
X-Axis Travel with Power Feed: 35”
Y-Axis Travel: 12”
Vertical Knee Travel: 16”
Ram Travel: 12”
Quill Travel: 5”
Spindle Motor: 3 HP
Spindle Speeds: 60–4,500 RPM
Spindle Taper: R-8
Spindle Nose to Table: 0–18.5”
Quill Power Feeds: 0.0015”, 0.003”, 0.006” per revolution
T-Slots: Three, 5/8” wide
Electrical: 208–240 V, 3-Phase, 60 Hz, 9.5 Amps
Approximate Weight: 2,222 lbs.
Approximate Overall Dimensions: 58” W x 63–75” D x 79” H
EQUIPPED WITH:
Variable Speed Head
X-Axis Power Feed
X, Y & Quill Digital Read Out
6" Kurt Vise
One Shot Lube
Used GANESH GMV-2 Vertical Mill features a 9"x49" table, 3 HP spindle motor, and speeds of 60–4,500 RPM. Equipped with X-axis power feed, DRO, and 6" Kurt vise. Ideal for precision milling tasks. Contact for details.
GANESH GMV-2 Vertical Mill #8411 #1
SPECIFICATIONS:
Table Size: 9” x 49”
X-Axis Travel: 38”
X-Axis Travel with Power Feed: 35”
Y-Axis Travel: 12”
Vertical Knee Travel: 16”
Ram Travel: 12”
Quill Travel: 5”
Spindle Motor: 3 HP
Spindle Speeds: 60–4,500 RPM
Spindle Taper: R-8
Spindle Nose to Table: 0–18.5”
Quill Power Feeds: 0.0015”, 0.003”, 0.006” per revolution
T-Slots: Three, 5/8” wide
Electrical: 208–240 V, 3-Phase, 60 Hz, 9.5 Amps
Approximate Weight: 2,222 lbs.
Approximate Overall Dimensions: 58” W x 63–75” D x 79” H
EQUIPPED WITH:
Variable Speed Head
X-Axis Power Feed
X, Y & Quill Digital Read Out
6" Kurt Vise
One Shot Lube
