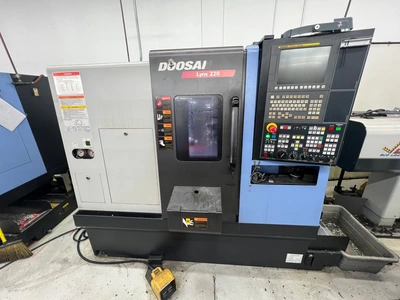

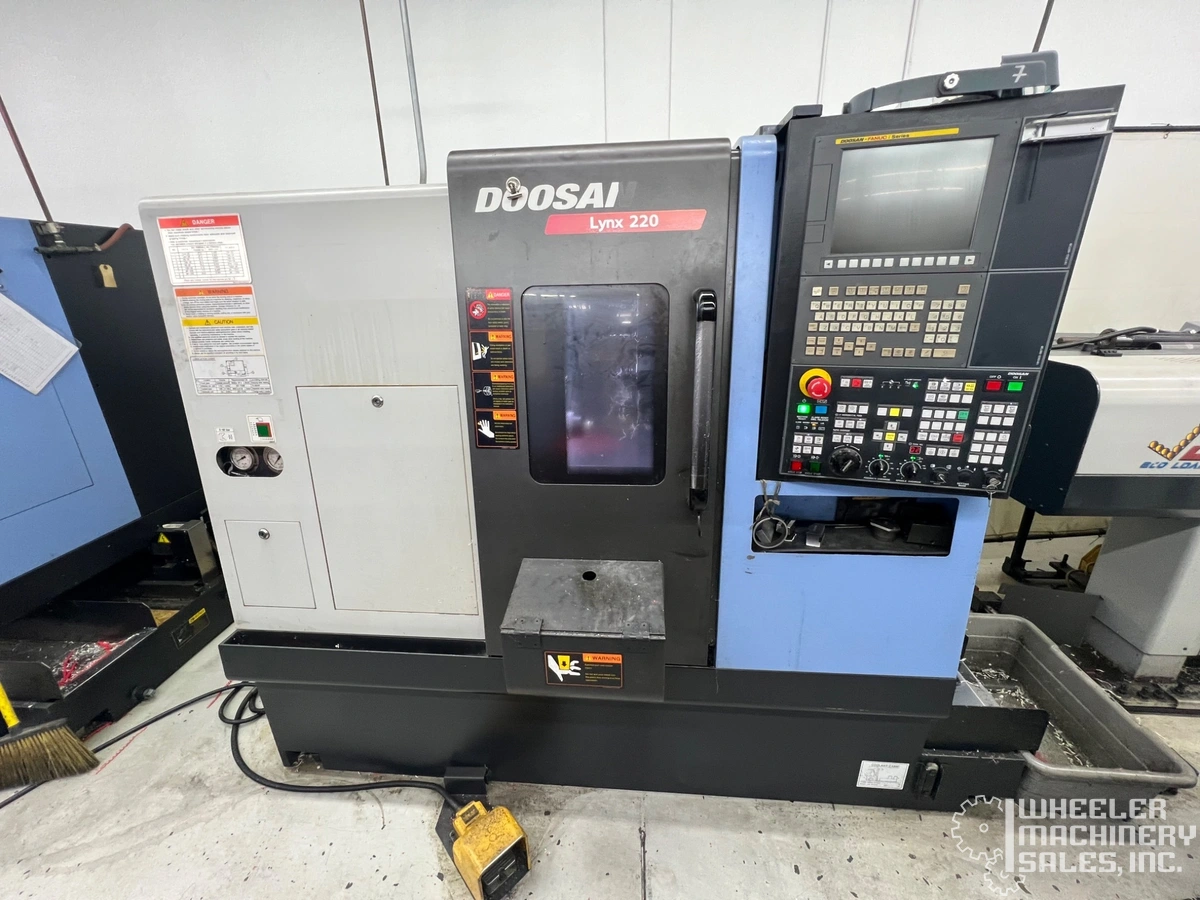

2014 DOOSAN Lynx 220A CNC Lathe #8405 #2
SPECIFICATIONS:
Capacity & Cutting Dimensions
Max Swing Over Bed: 20.1 inches (510 mm)
Max Turning Diameter: 12.6 inches (320 mm)
Max Machining Length: 12.7 inches (322 mm)
Max Bar Capacity: 1.8 inches (45 mm)

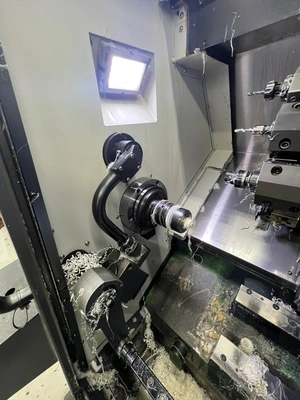

Chuck Size: 6 inches to 6.5 inches (hydraulic 3-jaw)
Spindle Specifications
Spindle Speed: 60 – 6,000 RPM
Spindle Motor: 20 HP (15 kW)
Spindle Bore: 2.1 – 2.2 inches (approx. 53 mm – 55 mm)
Spindle Nose: A2-5
Travels & Feedrates
X-Axis Travel: 6.9 inches (175 mm)
Z-Axis Travel: 12.6 to 13 inches (330 mm)
X-Axis Rapid Traverse: 1,181 IPM (30 m/min)
Z-Axis Rapid Traverse: 1,417 IPM (36 m/min)

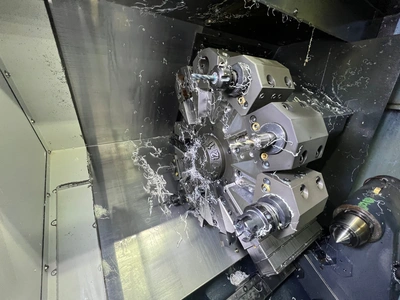

Turret & Tooling
Turret Stations: 12 positions
Turret Index Time: ~0.15 seconds (single step)
Size & Weight
Machine Dimensions: Approx. 91" – 101" L x 63" W x 63" – 65" H (2,311 x 1,600 x 1,650 mm)
Machine Weight: Approx. 6,400 – 7,700 lbs (2,900 kg)

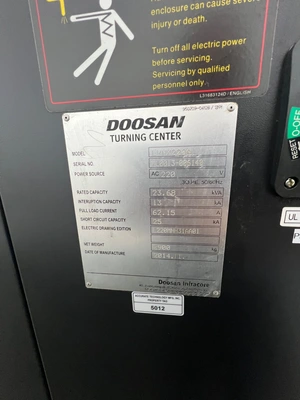

Electrical Requirements: 220V / 3-Phase / 50-60 Hz (~23.7 KVA, 62.15 Amps)

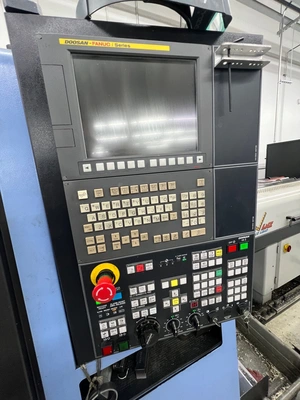

CNC Control: Fanuc i Series
This equipment has been sold. Similar equipment available now is shown below.
