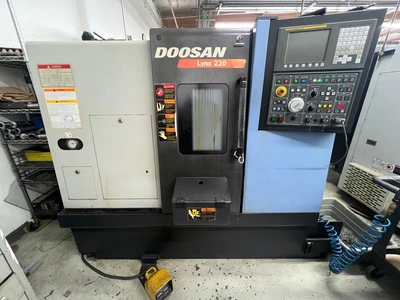

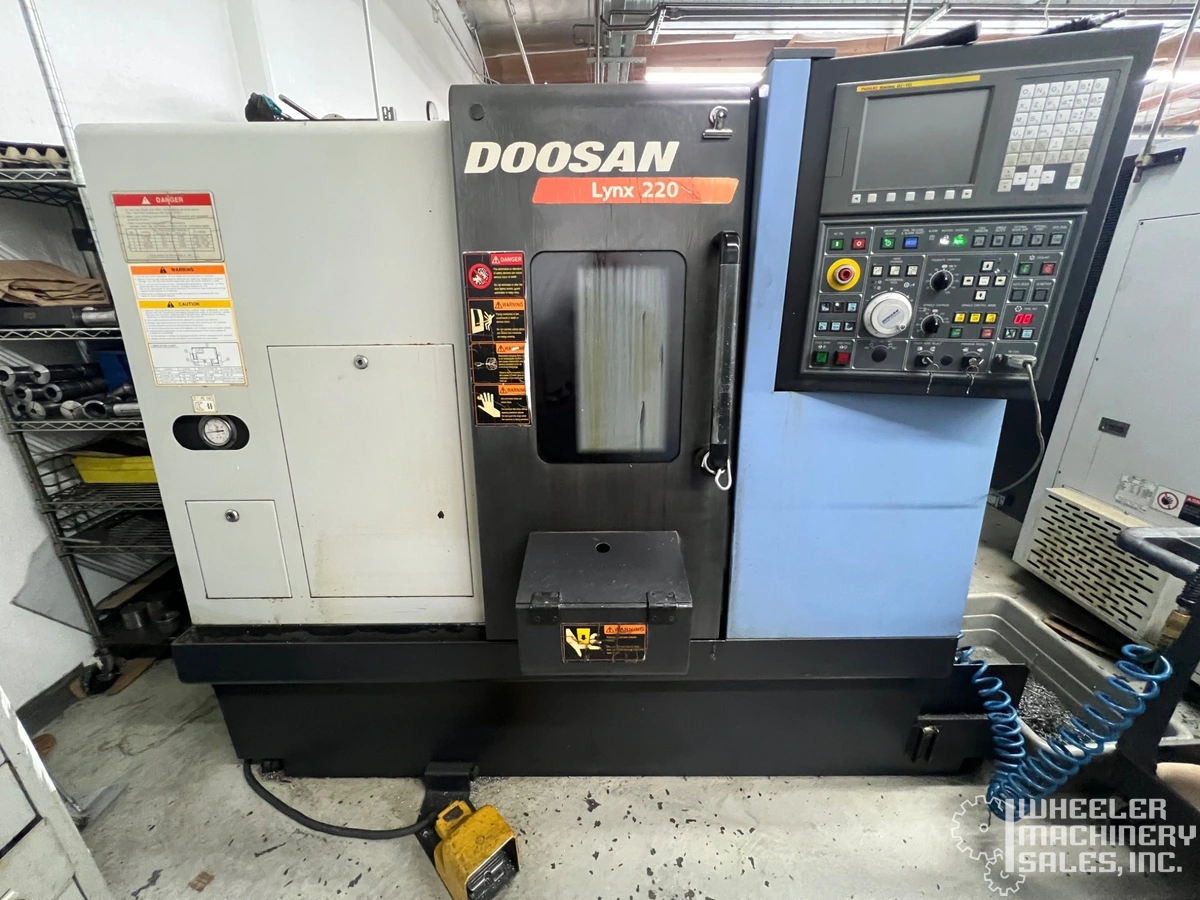

2007 DOOSAN Lynx 220A CNC Lathe #8404 #2
Have one to sell?
ConditionUsed
1 available
$29,500.00 USD
2007 DOOSAN Lynx 220A CNC Lathe available. Features include 20.1" swing, 12.7" machining length, 6.5" chuck, and 1.81" bar capacity. Powered by 20 hp and reaches up to 6,000 RPM with a turning diameter of 12.6". Used condition.
2007 DOOSAN Lynx 220A CNC Lathe #8404 #2
SPECIFICATIONS:
Capacity & Cutting Dimensions
Max Swing Over Bed: 20.1 inches (510 mm)
Max Turning Diameter: 12.6 inches (320 mm)
Max Machining Length: 12.7 inches (322 mm)
Max Bar Capacity: 1.8 inches (45 mm)

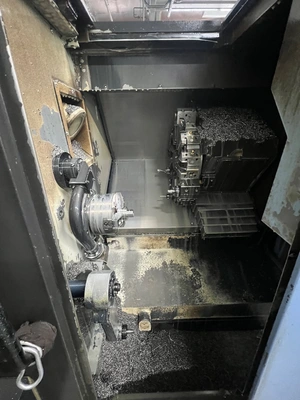

Chuck Size: 6 inches to 6.5 inches (hydraulic 3-jaw)
Spindle Specifications
Spindle Speed: 60 – 6,000 RPM
Spindle Motor: 20 HP (15 kW)
Spindle Bore: 2.1 – 2.2 inches (approx. 53 mm – 55 mm)
Spindle Nose: A2-5
Travels & Feedrates
X-Axis Travel: 6.9 inches (175 mm)
Z-Axis Travel: 12.6 to 13 inches (330 mm)
X-Axis Rapid Traverse: 1,181 IPM (30 m/min)
Z-Axis Rapid Traverse: 1,417 IPM (36 m/min)

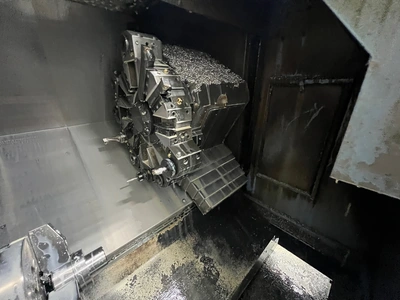

Turret & Tooling
Turret Stations: 12 positions
Turret Index Time: ~0.15 seconds (single step)
Size & Weight
Machine Dimensions: Approx. 91" – 101" L x 63" W x 63" – 65" H (2,311 x 1,600 x 1,650 mm)
Machine Weight: Approx. 6,400 – 7,700 lbs (2,900 kg)

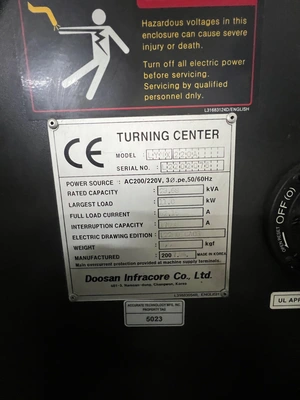

Electrical Requirements: 220V / 3-Phase / 50-60 Hz (~23.7 KVA, 62.15 Amps)

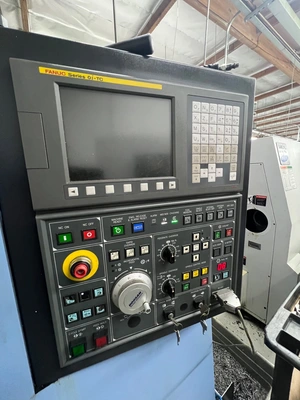

CNC Control: Fanuc i Series
2007 DOOSAN Lynx 220A CNC Lathe available. Features include 20.1" swing, 12.7" machining length, 6.5" chuck, and 1.81" bar capacity. Powered by 20 hp and reaches up to 6,000 RPM with a turning diameter of 12.6". Used condition.
2007 DOOSAN Lynx 220A CNC Lathe #8404 #2
SPECIFICATIONS:
Capacity & Cutting Dimensions
Max Swing Over Bed: 20.1 inches (510 mm)
Max Turning Diameter: 12.6 inches (320 mm)
Max Machining Length: 12.7 inches (322 mm)
Max Bar Capacity: 1.8 inches (45 mm)
Chuck Size: 6 inches to 6.5 inches (hydraulic 3-jaw)
Spindle Specifications
Spindle Speed: 60 – 6,000 RPM
Spindle Motor: 20 HP (15 kW)
Spindle Bore: 2.1 – 2.2 inches (approx. 53 mm – 55 mm)
Spindle Nose: A2-5
Travels & Feedrates
X-Axis Travel: 6.9 inches (175 mm)
Z-Axis Travel: 12.6 to 13 inches (330 mm)
X-Axis Rapid Traverse: 1,181 IPM (30 m/min)
Z-Axis Rapid Traverse: 1,417 IPM (36 m/min)
Turret & Tooling
Turret Stations: 12 positions
Turret Index Time: ~0.15 seconds (single step)
Size & Weight
Machine Dimensions: Approx. 91" – 101" L x 63" W x 63" – 65" H (2,311 x 1,600 x 1,650 mm)
Machine Weight: Approx. 6,400 – 7,700 lbs (2,900 kg)
Electrical Requirements: 220V / 3-Phase / 50-60 Hz (~23.7 KVA, 62.15 Amps)
CNC Control: Fanuc i Series
