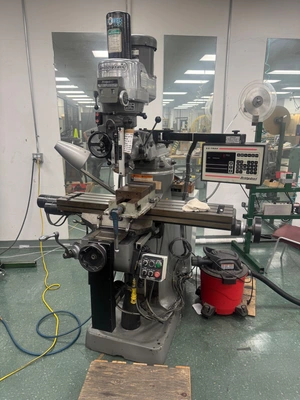

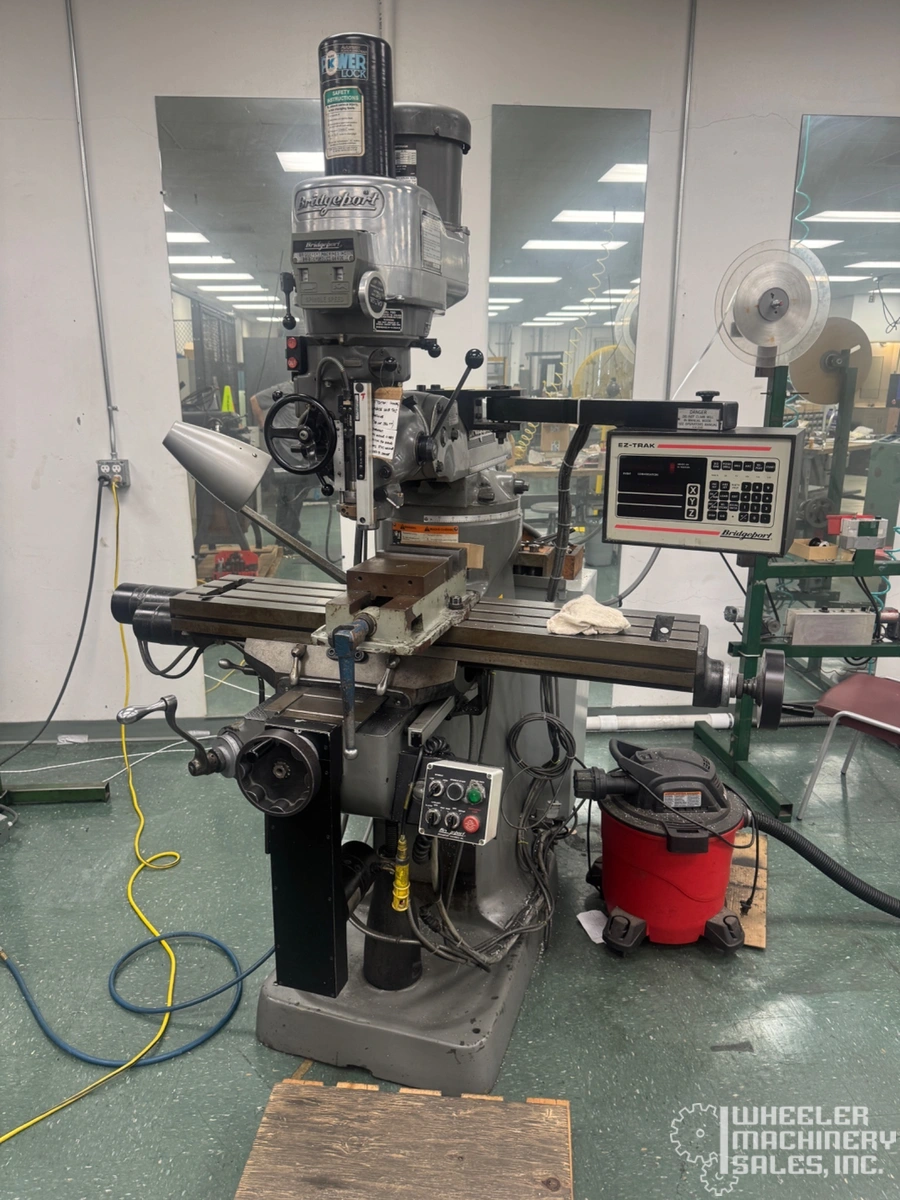

BRIDGEPORT EZ TRAK 2-AXIS TOOLROOM MILLING MACHNE 9" X 42" #8389 #1
Have one to sell?
ConditionUsed
1 available
$10,500.00 USD
Used Bridgeport 2-AXIS EZ Trak Toolroom Milling Machine, 9" x 42". Variable spindle speeds (60-4200 RPM), and R-8 spindle taper.
BRIDGEPORT 2-AXIS EZ TRAK TOOLROOM MILLING MACHNE 9" X 42" #8342
SPECIFICATIONS:
Table Size 9" x 42"
Longitudinal Travel 30"
Cross Travel 12"
Vertical Knee Travel 16"
Spindle Speeds (Variable) 60-4200 RPM
Spindle Taper R-8
Spindle Quill Travel 5"
Positioning Speed (X-Y Axis) 100 IPM
Feed Rate (X-Y Axis, Variable) 0.1-100 IPM
Spindle Quill Feeds (3) 0.0015" - 0.003" - 0.006"
Ram Travel 12"
Distance, Table To Spindle Nose 2 1/2" - 18 1/4"
Throat Distance 6 3/4" - 18 3/4"
Weight 2300 Lbs.
EQUIPPED WITH:
Bridgeport EZ TRAK Control
Bijur Spray Mist Coolant System
Auto-Lube System
Chrome Ways
2 H.P. Motor
Used Bridgeport 2-AXIS EZ Trak Toolroom Milling Machine, 9" x 42". Variable spindle speeds (60-4200 RPM), and R-8 spindle taper.
BRIDGEPORT 2-AXIS EZ TRAK TOOLROOM MILLING MACHNE 9" X 42" #8342
SPECIFICATIONS:
Table Size 9" x 42"
Longitudinal Travel 30"
Cross Travel 12"
Vertical Knee Travel 16"
Spindle Speeds (Variable) 60-4200 RPM
Spindle Taper R-8
Spindle Quill Travel 5"
Positioning Speed (X-Y Axis) 100 IPM
Feed Rate (X-Y Axis, Variable) 0.1-100 IPM
Spindle Quill Feeds (3) 0.0015" - 0.003" - 0.006"
Ram Travel 12"
Distance, Table To Spindle Nose 2 1/2" - 18 1/4"
Throat Distance 6 3/4" - 18 3/4"
Weight 2300 Lbs.
EQUIPPED WITH:
Bridgeport EZ TRAK Control
Bijur Spray Mist Coolant System
Auto-Lube System
Chrome Ways
2 H.P. Motor
