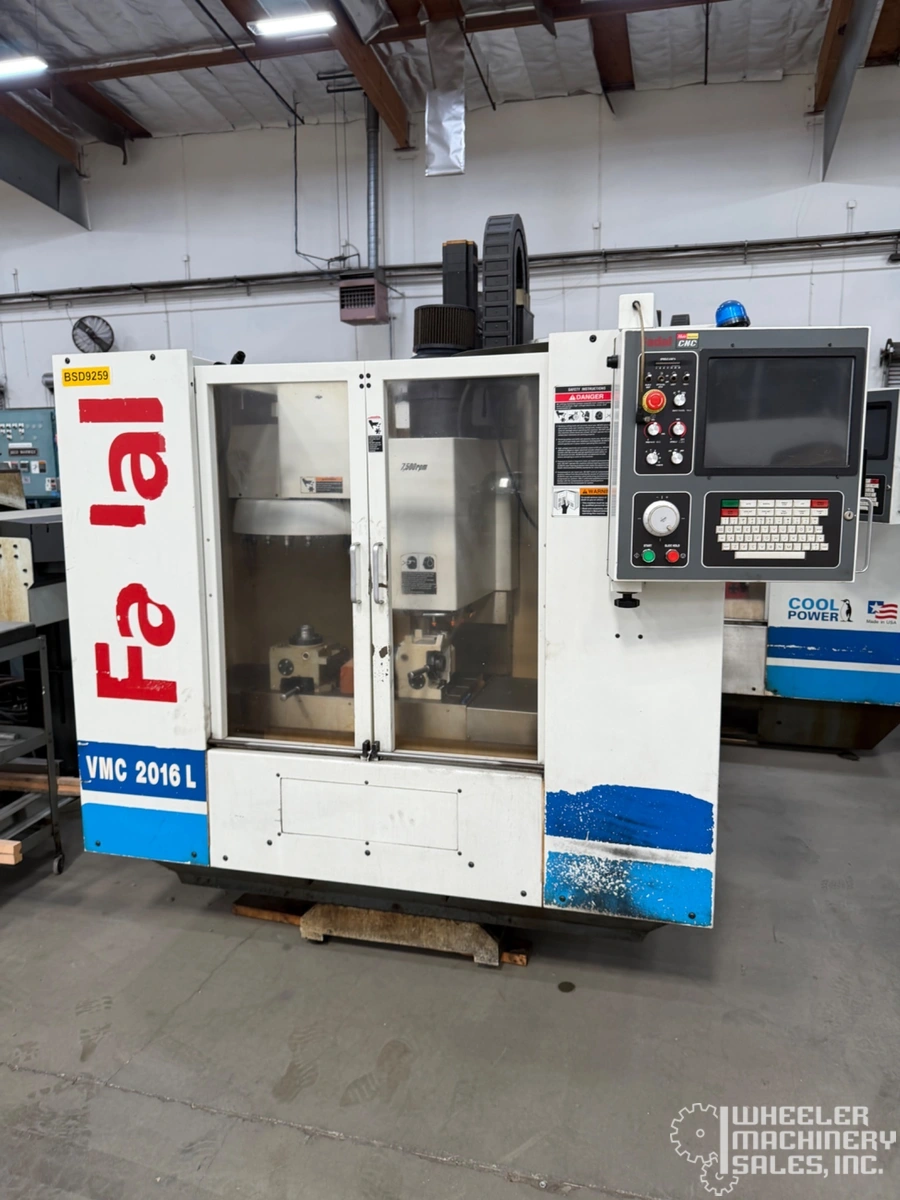

FADAL VMC-2016L Vertical Machining Center #8385 #1

FADAL VMC-2016L Vertical Machining Center #8385 #1

SPECIFICATIONS:
Longitudinal (X Axis) Travel: 20″
Cross (Y Axis) Travel: 16″
Vertical (Z Axis) Travel: 28″
Table Size: 29.5″ x 16″
Floor to Table: 30.5″
Cutting Feed Rate: 0.01-250 ipm (375 @ 150%)
Rapid Feed Rate (X/Y/Z): 500 ipm (X/Y/Z)
Max. Weight on Table: 2,000 lbs.

Spindle Nose to Table: 4″- 32″
Spindle Center to Column Ways: 17″
Main Motor (Auto 2 Speed Vector): 15 HP, 11.2 KW
Spindle Speed 10 – 15,000 rpm
Spindle Taper: 40
Auto Tool Changer: 20 + 1
ATC, Tool Selection: Random, Bi-directional
Max. Tool Diameter: 3″ (4.5″ w/o adjacent tools)

Power: 230/440 VAC, 3 Ph, 60 Hz
Air required (Momentary): 120 psi, 15 scfm
Machine Dimensions (l x w x h): 77″ x 75″ x 101″
Machine Weight 5,800 lbs.

EQUIPPED WITH:
Fadal CNC 32MP Control
Extended Z Axis
15,000 RPM Spindle
Automatic 2 Speed Vector Drive
Linear Ways
