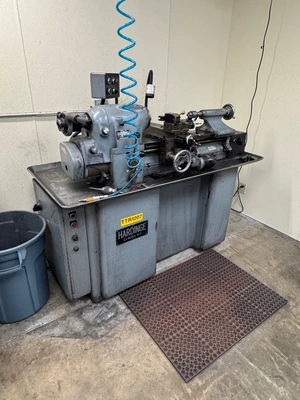

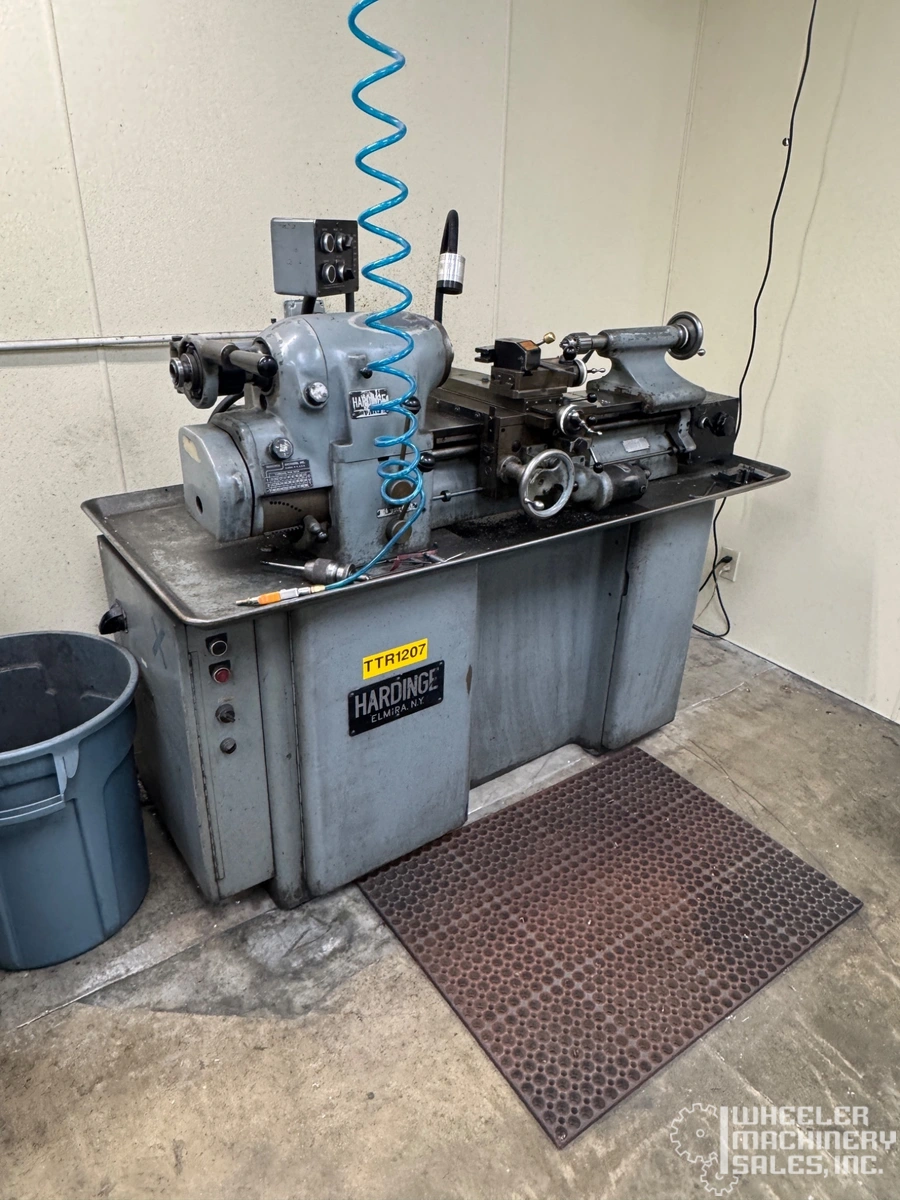

Hardinge HLV-H Precision Tool Room Lathe #8384 #1
Have one to sell?
ConditionUsed
1 available
$13,500.00 USD
Hardinge HLV-H Precision Tool Room Lathe, used. Specifications: 11" swing over bed, 18" distance between centers, variable spindle speeds 125-3000 RPM, 1.5 HP motor. Dimensions: 71" x 38" x 65". Weight: 1,800 lbs.
Hardinge HLV-H Precision Tool Room Lathe #8384 #1
SPECIFICATIONS:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4"
Threads Inch: 11- 108 TPI
Feeds (Variable): 1/4- 7 IPM
Tailstock Quill Taper: #2 MT
Tailstock Quill Travel: 3 3/4"
Motor: 1 1/2 HP
Dimensions (L x W x H): 71" X 38" X 65"
Weight: 1,800 Lbs.
EQUIPPED WITH:
Coolant
Tailstock
Hardinge HLV-H Precision Tool Room Lathe, used. Specifications: 11" swing over bed, 18" distance between centers, variable spindle speeds 125-3000 RPM, 1.5 HP motor. Dimensions: 71" x 38" x 65". Weight: 1,800 lbs.
Imperial
| Swing | 11" |
| Centers | 18" |
| Threading | 11- 108 TPI |
| Taper | 4 Degree |
| Power | 1.5 hp |
| RPM | 0 RPM |
| Dimensions | 71 x 38 x 65 |
| Weight | 1,800 |
Hardinge HLV-H Precision Tool Room Lathe #8384 #1
SPECIFICATIONS:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4"
Threads Inch: 11- 108 TPI
Feeds (Variable): 1/4- 7 IPM
Tailstock Quill Taper: #2 MT
Tailstock Quill Travel: 3 3/4"
Motor: 1 1/2 HP
Dimensions (L x W x H): 71" X 38" X 65"
Weight: 1,800 Lbs.
EQUIPPED WITH:
Coolant
Tailstock
