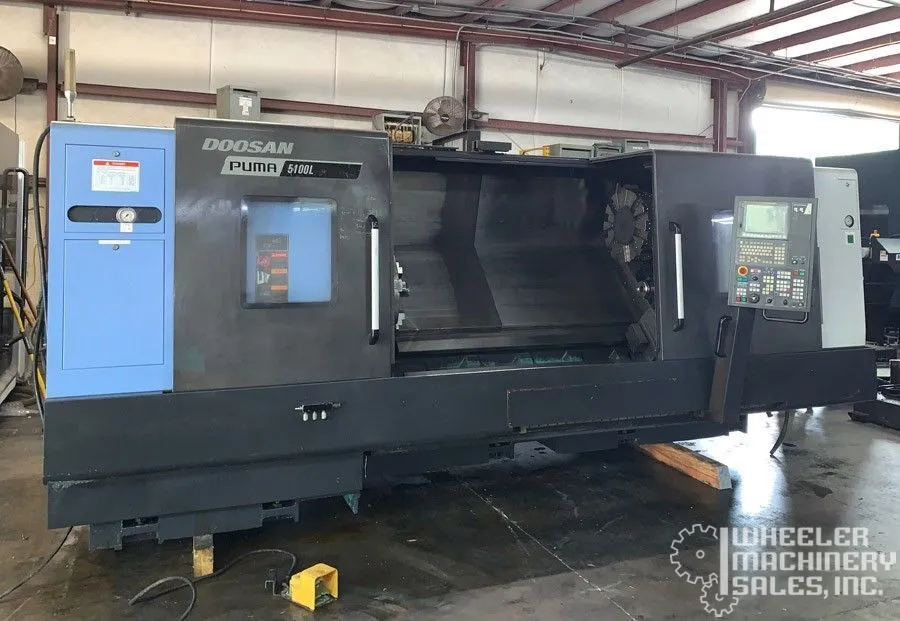

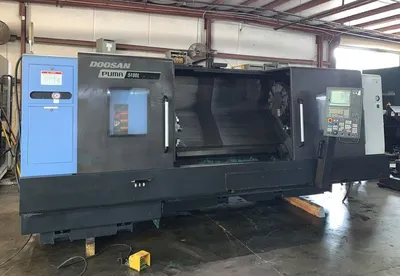

2015 DOOSAN PUMA 5100LC w/ 10.82" Through Hole #8381
Have one to sell?
ConditionUsed
1 available
DOOSAN PUMA 5100LC lathe, slant bed, N/C & CNC, 2015, used condition. Featuring 35.0 swing and 84.0 machining length. Ideal for enhancing precision in complex machining tasks. Professional-grade equipment at an attractive offer.
2015 DOOSAN PUMA 5100LC w/ 10.82" Through Hole #8381
Specifications (subject to buyer verification):
Capacity
Swing over bed: 35.4”
Swing over saddle: 27.2”
Recom. Turning diameter: 15”
Max. Turning diameter: 25.6”
Max. Turning length: 80.4”
Bar working diameter: 10.82”
Travels
Travel distance X-axis: 14.3”
Travel Distance Z-axis: 84.8”
Feedrates
Rapid Traverse Rate
X-axis: 629 IPM
Z-axis: 708 IPM
Main spindle
Max. Spindle speed: 1000 RPM
Spindle nose: ISO 702-4 NO.20
Spindle through hole: 10.8”
Turret
No. of tool stations: 12
Turret Indexing time ( 1 station swivel ) .25 sec
Tail Stock
Quill diameter: 4.7”
Quill bore taper: MT#6
Quill travel: 4.7”
Equipped With (subject to buyer verification):

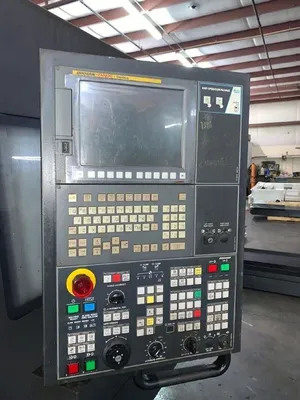

Doosan-FANUC i Series

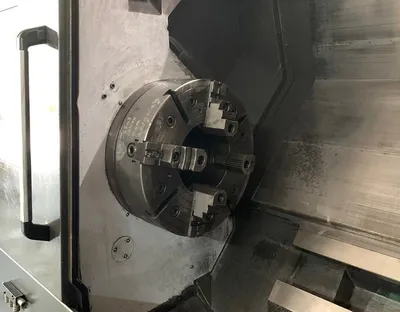

24” 4-Jaw Manual Chuck
Chip Conveyor

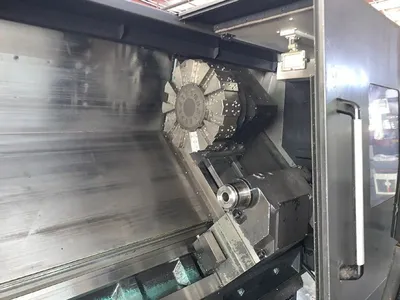

12 St. Turret
Tailstock
DOOSAN PUMA 5100LC lathe, slant bed, N/C & CNC, 2015, used condition. Featuring 35.0 swing and 84.0 machining length. Ideal for enhancing precision in complex machining tasks. Professional-grade equipment at an attractive offer.
Imperial
| Swing | 35" |
| Machining Length | 84" |
2015 DOOSAN PUMA 5100LC w/ 10.82" Through Hole #8381
Specifications (subject to buyer verification):
Capacity
Swing over bed: 35.4”
Swing over saddle: 27.2”
Recom. Turning diameter: 15”
Max. Turning diameter: 25.6”
Max. Turning length: 80.4”
Bar working diameter: 10.82”
Travels
Travel distance X-axis: 14.3”
Travel Distance Z-axis: 84.8”
Feedrates
Rapid Traverse Rate
X-axis: 629 IPM
Z-axis: 708 IPM
Main spindle
Max. Spindle speed: 1000 RPM
Spindle nose: ISO 702-4 NO.20
Spindle through hole: 10.8”
Turret
No. of tool stations: 12
Turret Indexing time ( 1 station swivel ) .25 sec
Tail Stock
Quill diameter: 4.7”
Quill bore taper: MT#6
Quill travel: 4.7”
Equipped With (subject to buyer verification):
Doosan-FANUC i Series
24” 4-Jaw Manual Chuck
Chip Conveyor
12 St. Turret
Tailstock
