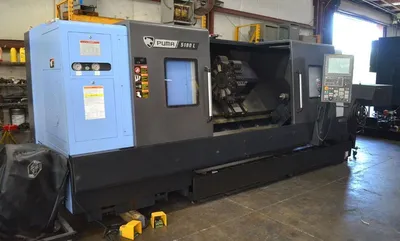

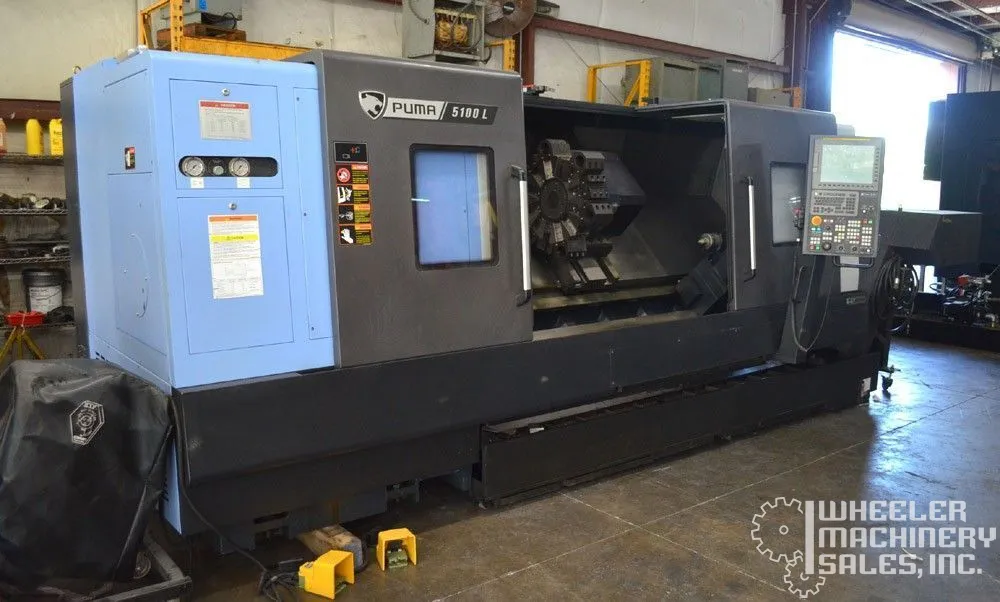

DN SOLUTIONS Puma 5100LC CNC Turning Center w/ 10.8in Through Hole #8380
Have one to sell?
ConditionUsed
1 available
$269,000.00 USD
DN SOLUTIONS Puma 5100LC Used CNC Lathe, Slant Bed. Ideal for precision machining tasks. Reliable and versatile, perfect for enhancing your manufacturing operations. Contact for more details and pricing.
DN SOLUTIONS Puma 5100LC CNC Turning Center w/ 10.8in Through Hole #8380
Specifications (subject to buyer verification):
Swing Over Bed: 35.4”
Swing Over Saddle: 27.2”
Recom. Turning Dia: 15.0”
Max Turning Diameter: 25.6”
Max turning Length: 80.4”
Chuck Work Weight (Including Chuck) : 4400 lbs
Shaft Work Weight (Including Chuck) : 7936 lbs
Bar Working Diameter: 10.82”
X-Axis Travel Distance: 14.3”
Z-Axis Travel Distance: 84.8”
Rapid Traverse Rate X / Z: 629 / 787 IPM
Max Spindle Speed: 1000 RPM
Main Spindle Motor 30min / Cont: 60 / 50 HP
Max Spindle Torque: 3293 ft-lbs
Spindle Nose: ASA-ISO 703-4 No. 20
Max Spindle Through Hole Diameter 10.8”

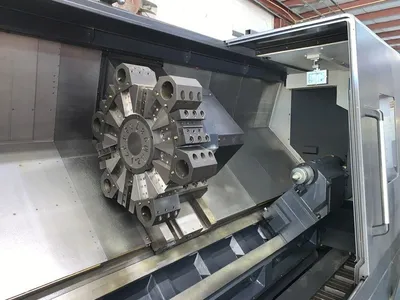

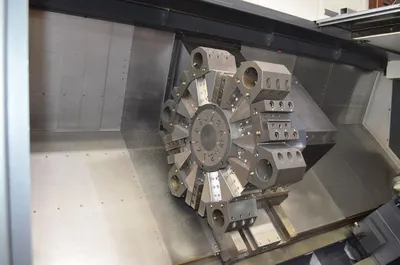

No. of Tools Stations: 12
Tailstock Travel: 80.7”
Quill Diameter / Quill Travel: 4.7” / 4.7”
Quill Bore Taper: MT#6
Dimensions: 232” x 89.6” x 89.4”
Weight: 26,700 lbs
Equipped With (subject to buyer verification):

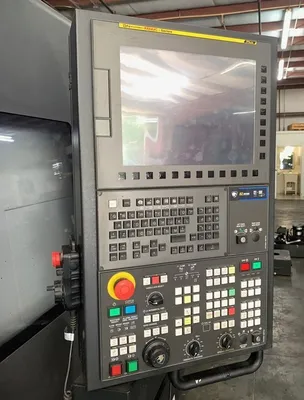

DN Solutions Fanuc I Series Plus CNC Control
Tailstock
Turbo Side Discharge Chip Conveyor

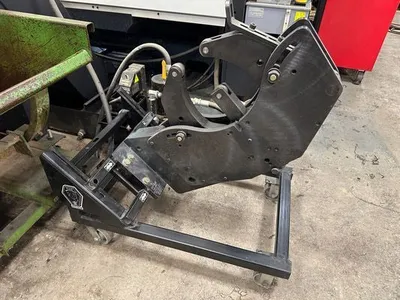

RIP-216Pass thru manual steady rest .5-16"
(2) 2443-2A20EX24" 4 jaw independent King bore manual chuck (Front and Rear Manual Chuck
DN SOLUTIONS Puma 5100LC Used CNC Lathe, Slant Bed. Ideal for precision machining tasks. Reliable and versatile, perfect for enhancing your manufacturing operations. Contact for more details and pricing.
DN SOLUTIONS Puma 5100LC CNC Turning Center w/ 10.8in Through Hole #8380
Specifications (subject to buyer verification):
Swing Over Bed: 35.4”
Swing Over Saddle: 27.2”
Recom. Turning Dia: 15.0”
Max Turning Diameter: 25.6”
Max turning Length: 80.4”
Chuck Work Weight (Including Chuck) : 4400 lbs
Shaft Work Weight (Including Chuck) : 7936 lbs
Bar Working Diameter: 10.82”
X-Axis Travel Distance: 14.3”
Z-Axis Travel Distance: 84.8”
Rapid Traverse Rate X / Z: 629 / 787 IPM
Max Spindle Speed: 1000 RPM
Main Spindle Motor 30min / Cont: 60 / 50 HP
Max Spindle Torque: 3293 ft-lbs
Spindle Nose: ASA-ISO 703-4 No. 20
Max Spindle Through Hole Diameter 10.8”
No. of Tools Stations: 12
Tailstock Travel: 80.7”
Quill Diameter / Quill Travel: 4.7” / 4.7”
Quill Bore Taper: MT#6
Dimensions: 232” x 89.6” x 89.4”
Weight: 26,700 lbs
Equipped With (subject to buyer verification):
DN Solutions Fanuc I Series Plus CNC Control
Tailstock
Turbo Side Discharge Chip Conveyor
RIP-216Pass thru manual steady rest .5-16"
(2) 2443-2A20EX24" 4 jaw independent King bore manual chuck (Front and Rear Manual Chuck
