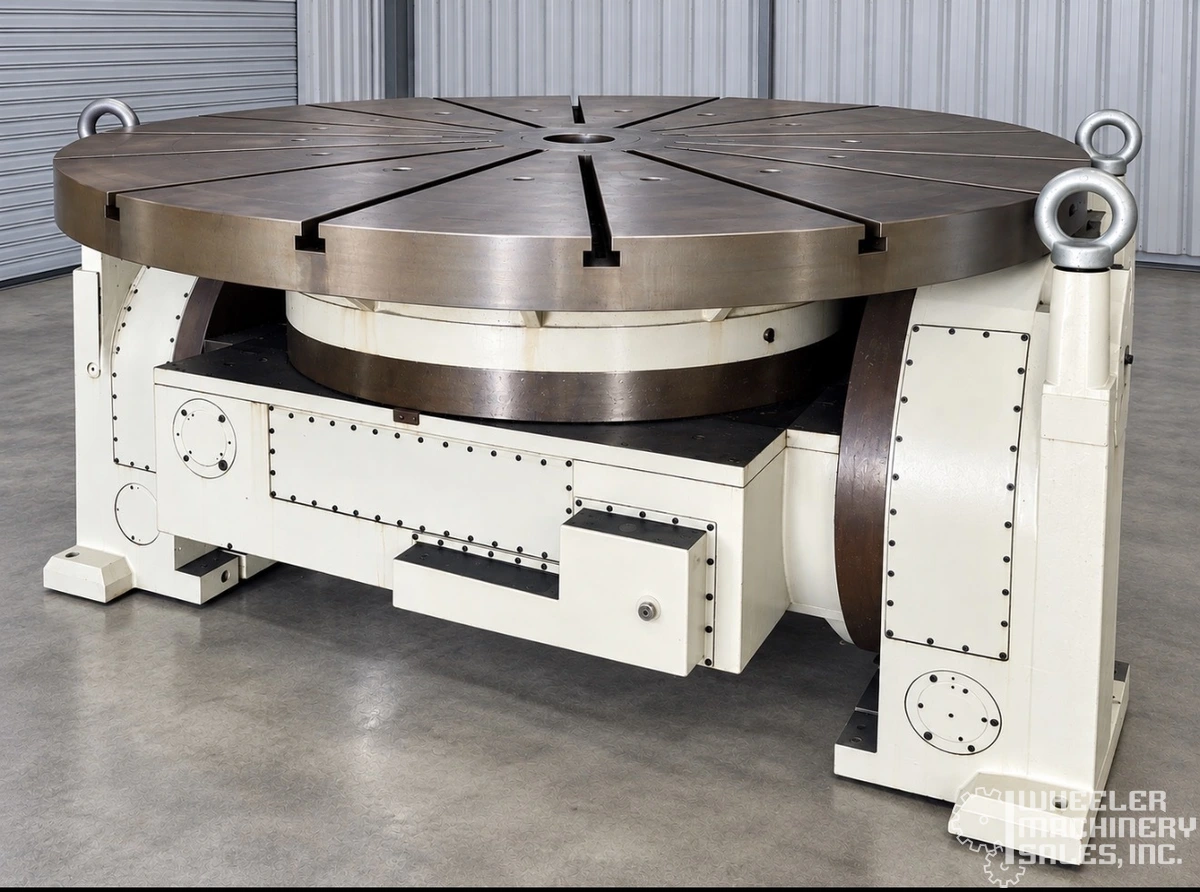

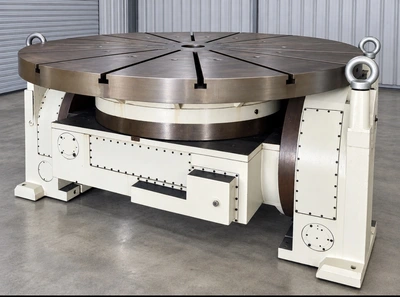

ZEATZ PT2 ACNE 2300 CNC Tilting Rotary Table #8376 #1
Have one to sell?
ConditionUsed
1 available
$19,500.00 USD
ZEATZ PT2 ACNE 2300 CNC rotary table, used but in good shape. Ideal for precision engineering tasks, this tilting model combines robust design with reliable performance. Perfect for enhancing CNC machining efficiency.
ZEATZ PT2 ACNE 2300 CNC Tilting Rotary Table #8376 #1
SPECIFICATIONS:
Type: CNC Powered Rotary & Tilting Table (Fanuc Drives)
Number of controlled axes: 2 - rotation & tilt
Table rotation: 360° continuous
Tilt range: +90° to 30°
Rotary drive: Worm / worm-wheel type; ZEATZ PT design uses Dual Lead
Clamping: Automatic hydraulic
CNC capability: Yes

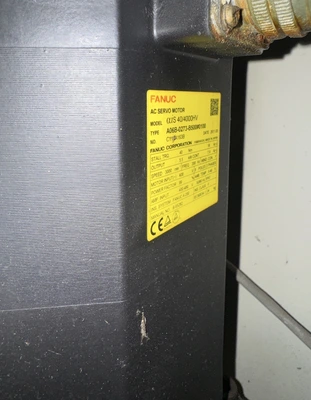

Encoder: CNC position-feedback encoder; Fanuc
Table size: 2300 mm / 90.55”
Maximum workpiece diameter: 2500 - 2800 mm / 98” – 110”
Load capacity: 17,600 to 33,000 lbs.
Rotation speed: 1 - 3 RPM
Tilt speed: 0.5 - 1.5 RPM
Braking / locking: Hydraulic clamping on rotary/tilting axes
