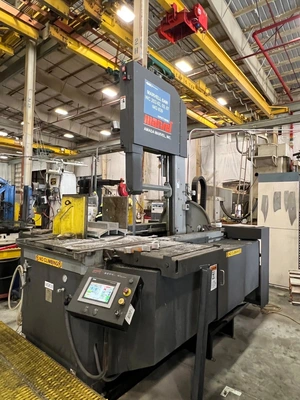

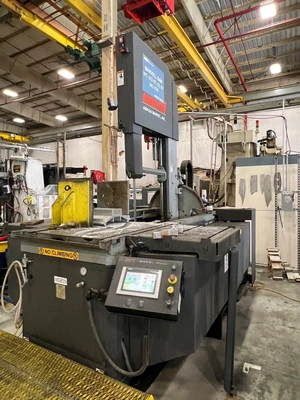

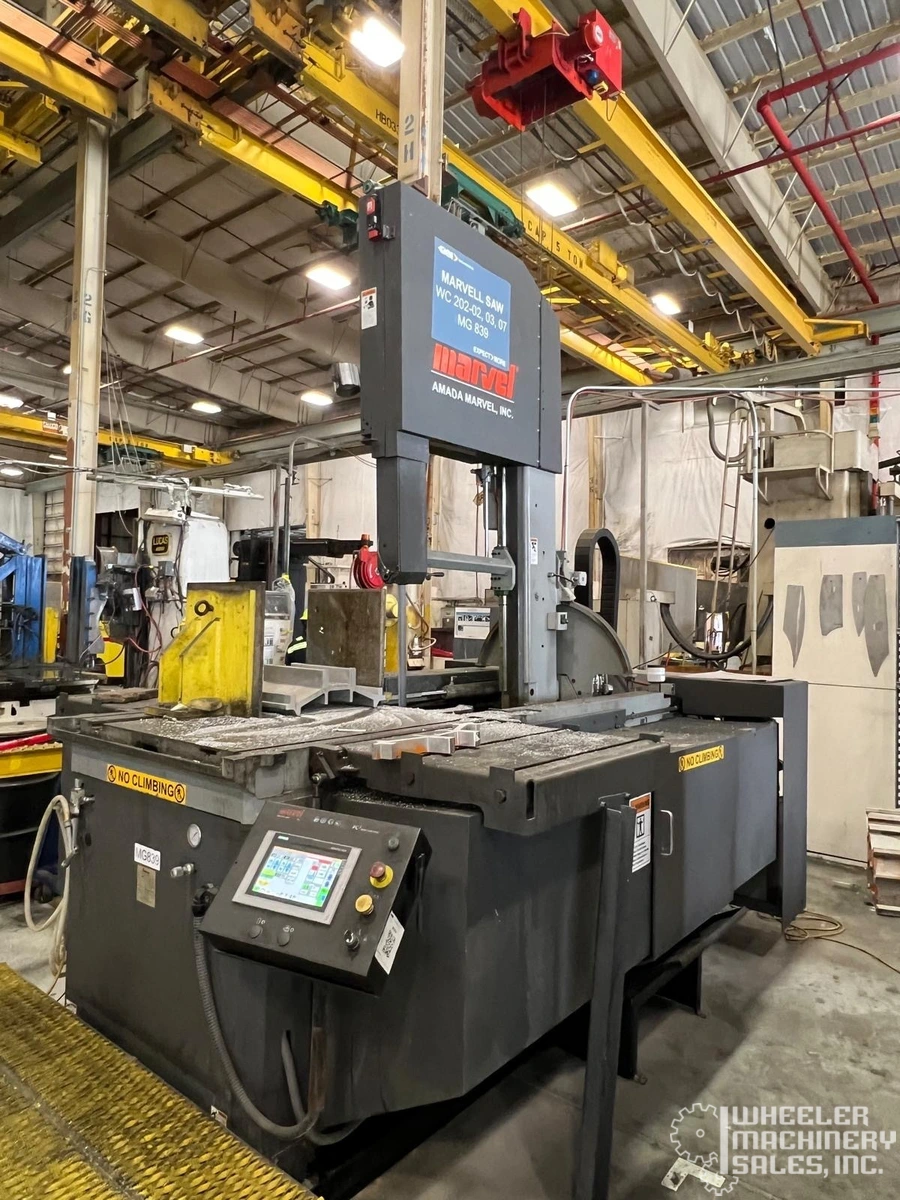

2020 AMADA MARVEL G800M Semi-Auto Vertical Tilting Frame Bandsaw #8363
Have one to sell?
ConditionUsed
1 available
$159,500.00 USD
2020 AMADA MARVEL G800M Semi-Auto Vertical Tilting Frame Bandsaw in used condition. Ideal for precision cutting tasks, this reliable model comes ready for action. Perfect addition for workshops seeking quality and efficiency.
2020 AMADA MARVEL G800M Semi-Auto Vertical Tilting Frame Bandsaw #8363
SPECIFICATIONS:
Cutting Capacities
Round at 0°: 31.25″ (794 mm)
Rectangle at 0°: 31.25″ x 37.5″ (794 x 952 mm)
Round at 45° Right / Left: 25.5″ / 24″
Round at 60° Right / Left: 17.5″ / 15.75″
Miter Cutting: Up to ±60° left and right of vertical with electronic tilt and encoder feedback
Saw Blade & Performance
Blade Dimensions: 25′ x 0.063″ x 2″ (300" total length)
Blade Speed: 60–400 ft./min (variable via inverter)
Blade Tension Control: Hydraulic
Feed Force: 0 to 350 lbs (Direct Force Sensing Electric Ball Screw)
Work Load Capacity: 5,000 lbs (2,268 kg)
Motor & Power
Saw Blade Motor: 15 HP (11.2 kW)
Hydraulic Pump Motor: 5 HP (3.7 kW)
Cutting Fluid Pump: 1/2 HP (0.4 kW)
Electrical Requirements: AC230V or AC460V, 3-phase, 60 Hz
Key Features

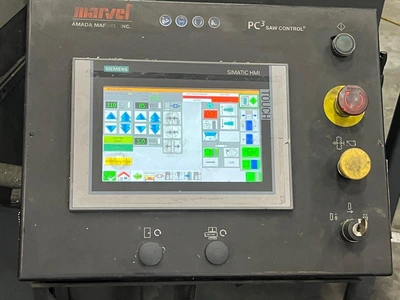

PC3 Programmable Control: Features a 12-inch color touch screen with memory for up to 500 jobs.
Tilting Column: Electrically powered, chain-driven column for precision miter adjustments.
Canted Column: Standard 3-degree forward canted head to improve cutting efficiency on structural materials.
