CLAUSING 5914 ENGINE LATHE 12" x 36" #8351 #1
Have one to sell?
ConditionUsed
1 available
$1,950.00 USD

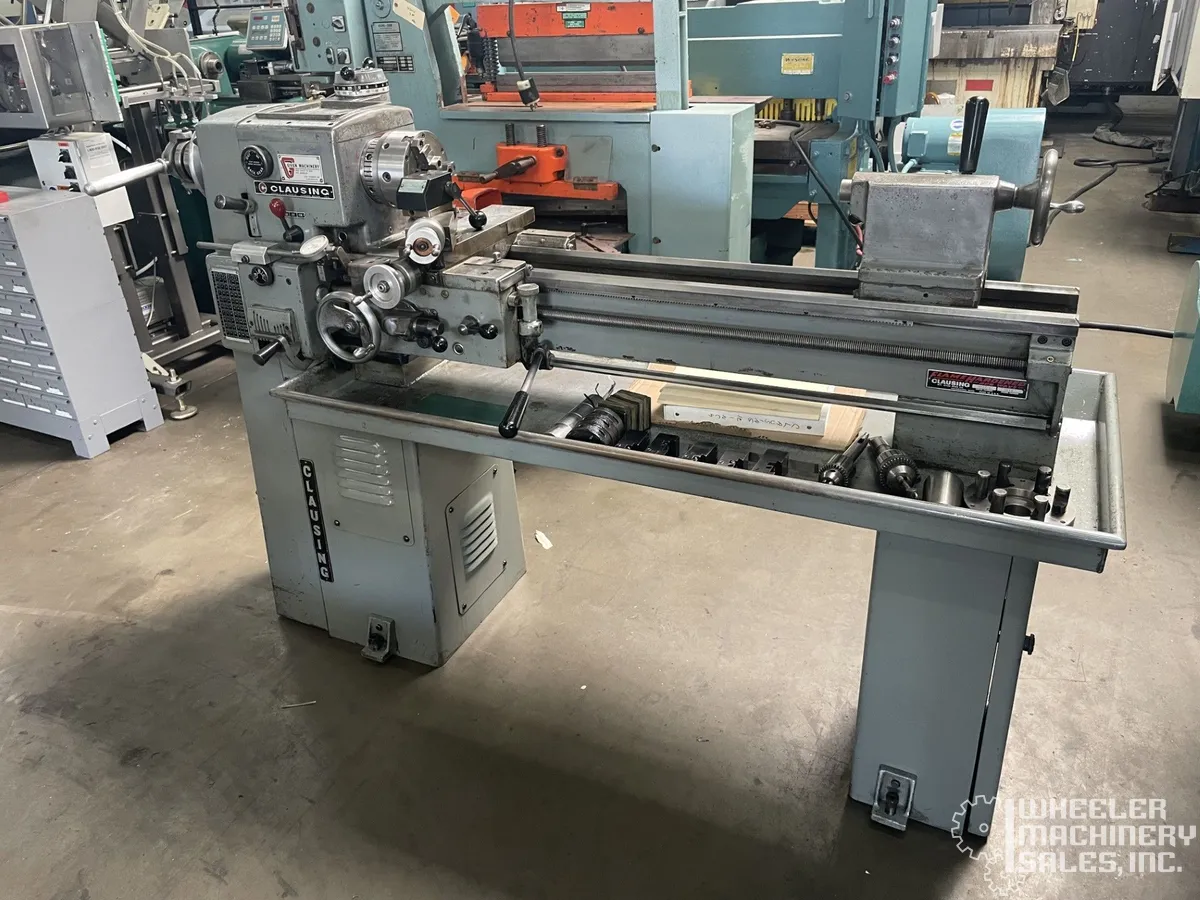

Used Clausing 5914 engine lathe, 12" x 36", offers 12.5" swing over bed, variable speeds from 52-2000 RPM, and a 3 HP direct drive motor. Features power feeds, 220V, 3-phase. Approx. dimensions: 72"L x 32"W x 50"H, weight 2000 lbs.
CLAUSING 5914 ENGINE LATHE 12" x 36" #8351 #1
SPECIFICATIONS:
SWING OVER BED 12.5"
SWING OVER CROSS SLIDE 8"
DISTANCE BETWEEN CENTERS 36"
SPINDLE SPEEDS (VARIABLE) 52 - 2000 RPM
SPINDLE MOTOR 3 HP (DIRECT DRIVE)
SPINDLE BORE 1.50"
POWER FEEDS BOTH CROSS & LONGITUDINAL
CROSS-SLIDE TRAVEL, PLUNGE 4.7"
TOP COMPOUND REST TRAVEL 2.5"
QUILL TRAVEL, TAILSTOCK 3.5"
TAILSTOCK TAPER No. 3 MT
DIMENSIONS, APPROX. 72"L x 32"W x 50"H
WEIGHT, APPROX. 2000 LBS
EQUIPPED WITH:
NIX QUICK CHANGE TOOL POST
TAILSTOCK
3-JAW CHUCK
