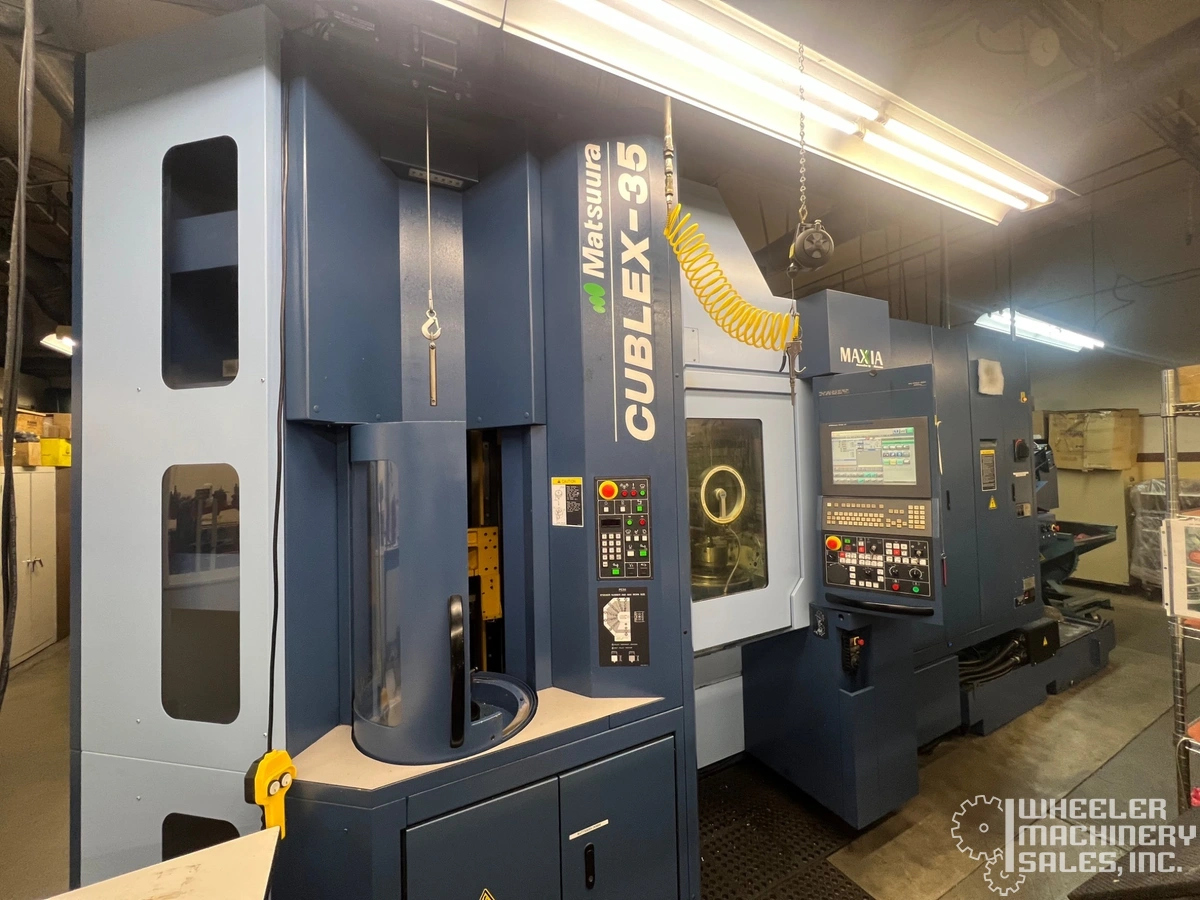

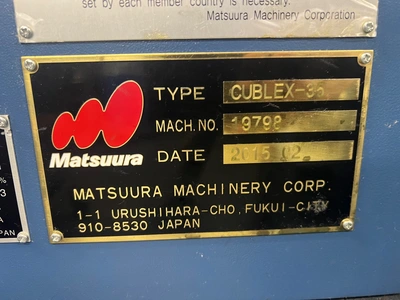

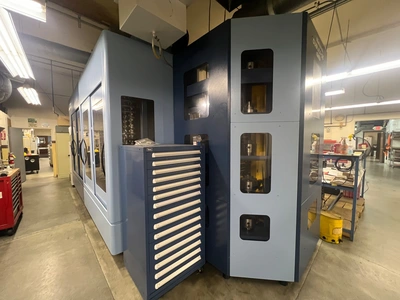

2015 MATSUURA Cublex 35 5-Axis Vertical Machining Center #8349

2015 MATSUURA Cublex 35 5-Axis Vertical Machining Center #8349

SPECIFICATIONS:
X Travel: 21.65"
Y Travel: 17.32"
Z Travel: 22.83"
Spindle Speed: 20,000 rpm
Tool Capacity (ATC): 520
Main Spindle Motor: 25 HP
Spindle Taper: HSK 63
Table Type A-Axis Trunnion Tilt Range: -125° to +65°
Table Type C-Axis Table Rotation: 1 Degree Index
Coolant Thru: Yes
Tool Probe/Auto Tool Length Measurement: Yes
Multiple Pallets: Yes
Palletech System Number of Pallets: 32
B-Axis (Table Swivel): +65 Degree to -125 Degree
Rapid Traverse Rates: 2362 ipm

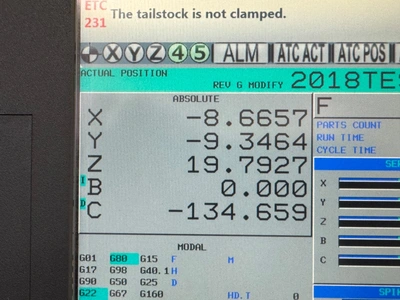

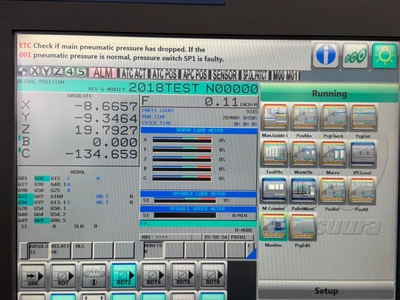

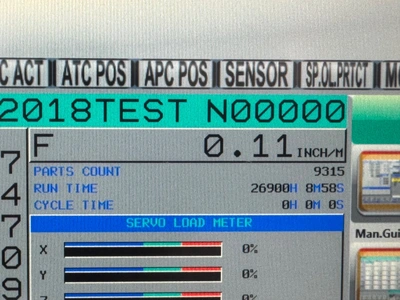

Control: CNC (Matsuura G-Tech 31i)
Max Workpiece Size: Ø 13.77 in × H 12.40 in
Max Loading Capacity: 132 lbs
C-Axis Travel (Rotation): 360° continuous
Turning Spindle Speed (C-Axis): Up to 3,000 RPM via a Direct Drive (DD) motor
for high-speed chuck rotation.
Horsepower 20 HP continuous / 25 HP peak
Max Workpiece Size: Ø 13.77 in × H 12.40 in
Max Loading Capacity: 132 lbs
Pallet System: 32 pallets (Tower Pallet System)

EQUIPPED WITH:

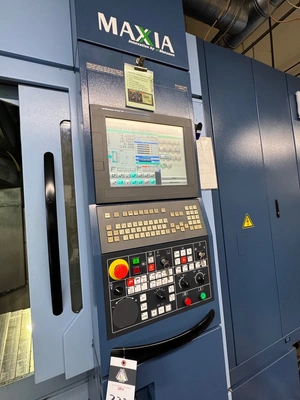

MATSUURA G-TECH 31I CONTROLS
HAND WHEEL
520-STATION TOOL CHANGER
HSK63 SPINDLE TOOLING
20,000 RPM SPINDLE

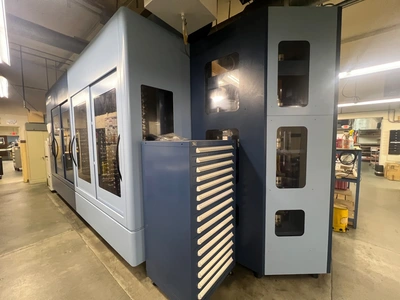

P-32 TOWER PALLET SYSTEM WITH LOAD/UNLOAD STATION AND PALLETS
LASER TOOL SETTING AND BREAKAGE DETECTION, +65 DEGREE TO -125 DEGREE B-AXIS, 360 DEGREE C-AXIS,
PROGRAMMABLE TAILSTOCK
3000 RPM ON C-AXIS
COOLJET COOLANT SYSTEM
CHIP AUGERS
