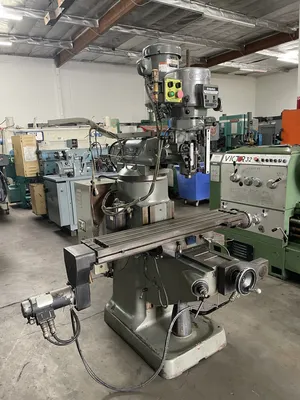

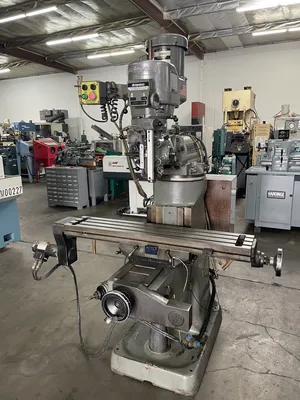

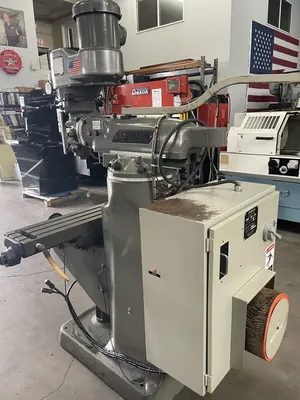

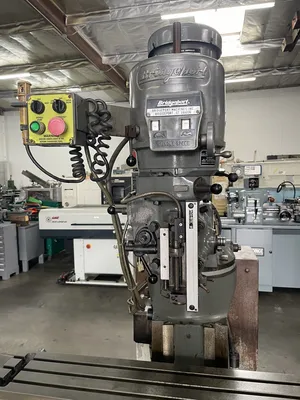

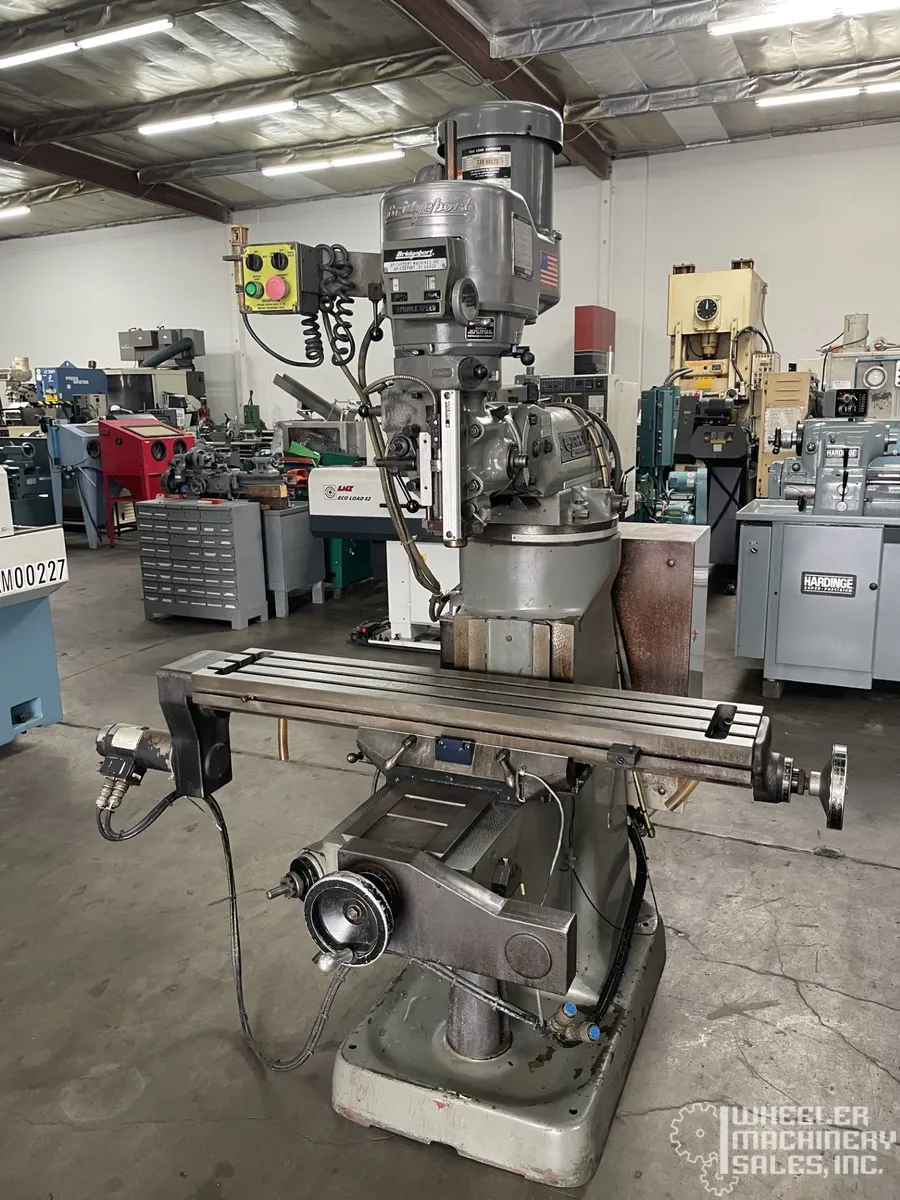

BRIDGEPORT EZ TRAK MANUAL TOOLROOM MILLING MACHNE (No Control) 9" X 48" #8342

BRIDGEPORT EZ TRAK MANUAL TOOLROOM MILLING MACHNE (No Control) 9" X 48" #8342

SPECIFICATIONS:

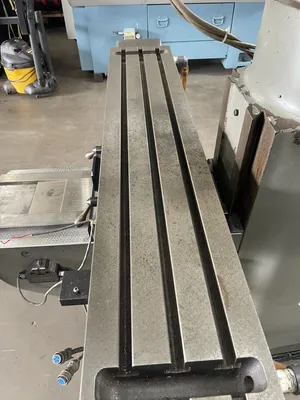

Table Size 9" x 48"
Longitudinal Travel 30"
Cross Travel 12"
Vertical Knee Travel 16"
Spindle Speeds (Variable) 60-4200 RPM
Spindle Taper R-8
Spindle Quill Travel 5"
Positioning Speed (X-Y Axis) 100 IPM
Feed Rate (X-Y Axis, Variable) 0.1-100 IPM
Spindle Quill Feeds (3) 0.0015" - 0.003" - 0.006"
Ram Travel 12"
Distance, Table To Spindle Nose 2 1/2" - 18 1/4"
Throat Distance 6 3/4" - 18 3/4"
Weight 2300 Lbs.

EQUIPPED WITH:
Bijur Spray Mist Coolant System
Auto-Lube System

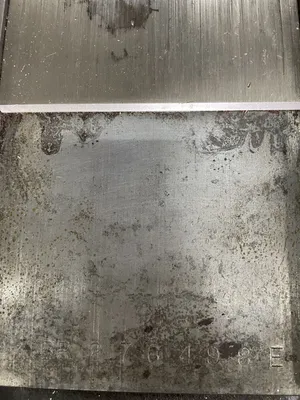

Chrome Ways
2 H.P. Motor
