| Tonnage | 6 T | 5.443 t |
| Dimensions | 44 in L x 34 in W x 92 in H | 44 in L x 34 in W x 92 in H |

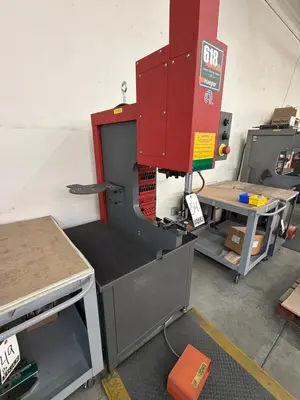

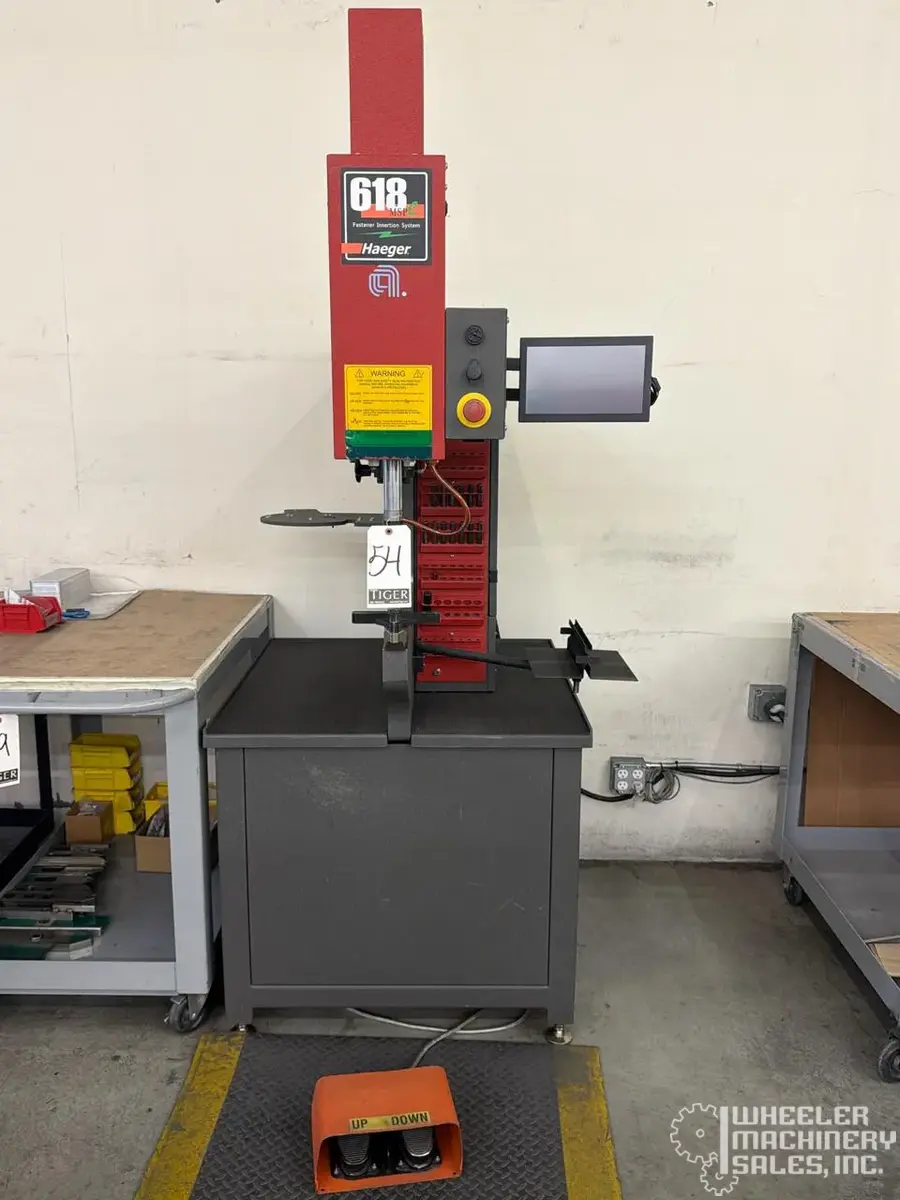

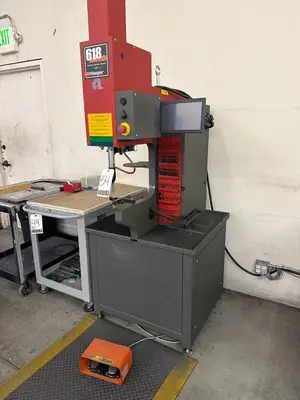

2021 HAEGER 618 MSPe Hardware Insertion Machine w/ Touch Screen Control #8336
Performance & Capacity
Ram Force: 6 Ton - 900 lbs to 12,000 lbs (4 kN to 53 kN) with +/- 2% repeatability
Throat Depth: 18 inches (457.2 mm)
Stroke Length: 0 to 8.0 inches (0 to 200 mm)
Adjustable Up Stroke: 3/8 to 6 inches (10 to 150 mm)
Fastener Range: M2 to M10 (and #2-56 equivalent hardware)
Material Capacity: Up to M8 in mild steel and M6 in stainless steel
System & Utilities
Electrical: 3-phase, 200V to 575V (50 or 60 Hz)
Air Requirements: 90 to 100 PSI (6 to 7 BAR) with a 1/2-inch minimum line flow
Footprint: 44" L x 34" W x 92" H (1143 mm x 467 mm x 2336 mm).
Key Features
Equipped with Haeger's patented safety system
Includes a Tooling Protection System (TPS) and digital batch counter
Touchscreen Control
This equipment has been sold. Similar equipment available now is shown below.
