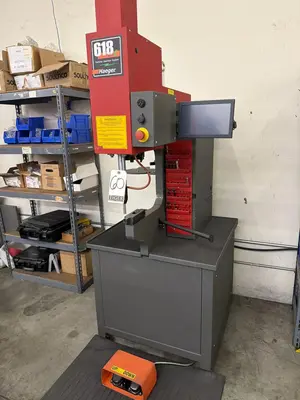

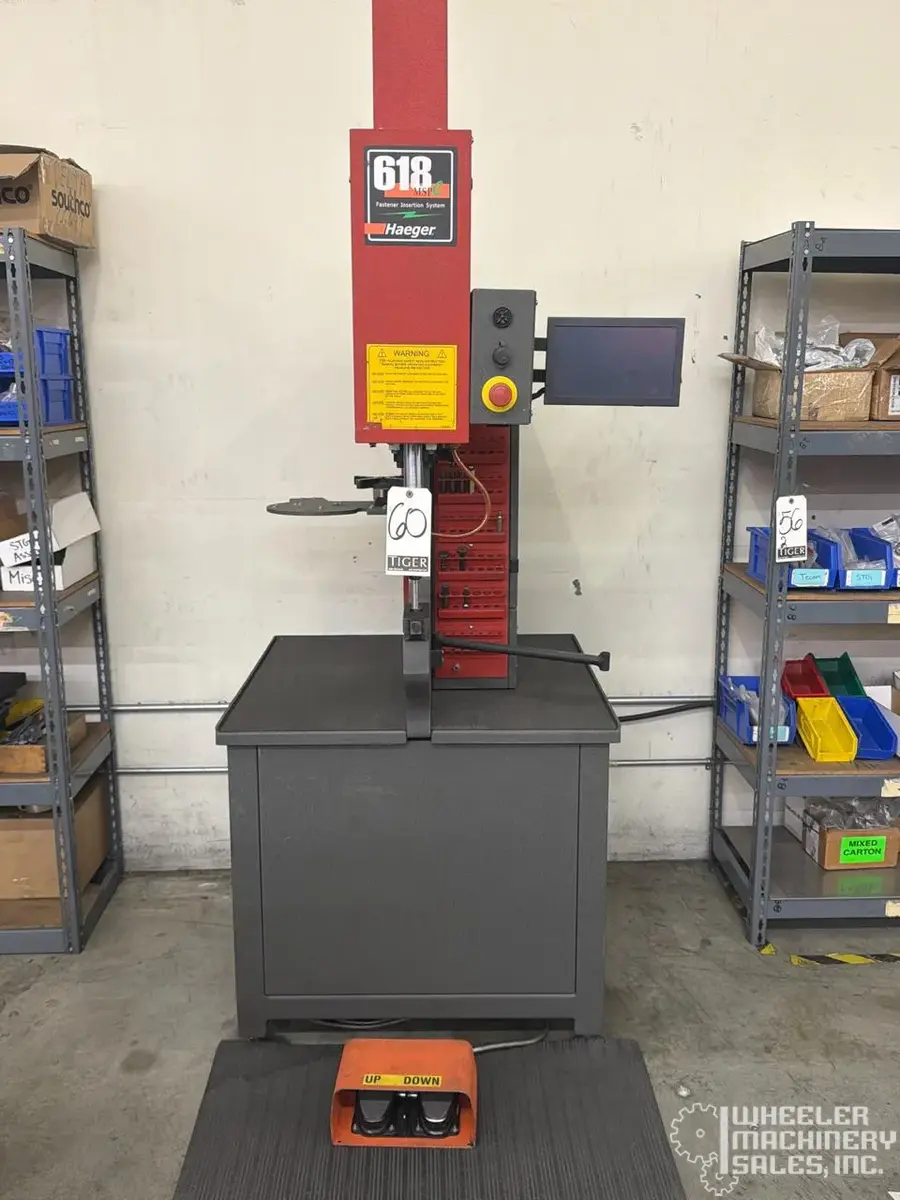

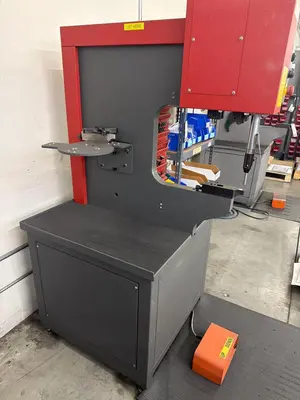

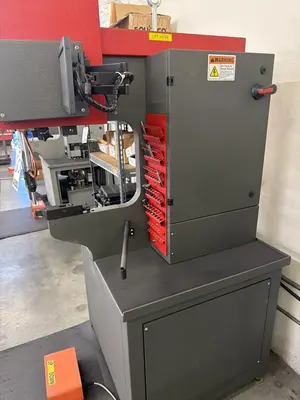

2021 HAEGER 618 MSPe Hardware Insertion Machine w/ Touch Screen Control #8335
Have one to sell?
ConditionUsed
1 available
$27,500.00 USD
2021 HAEGER 618 MSPe Hardware Insertion Machine available, featuring touch screen control. Manufactured by HAEGER, this used insertion press offers reliability in your production line. Ideal for precision insertion tasks.
2021 HAEGER 618 MSPe Hardware Insertion Machine w/ Touch Screen Control #8335
Performance & Capacity
Ram Force: 6 Ton - 900 lbs to 12,000 lbs (4 kN to 53 kN) with +/- 2% repeatability
Throat Depth: 18 inches (457.2 mm)
Stroke Length: 0 to 8.0 inches (0 to 200 mm)
Adjustable Up Stroke: 3/8 to 6 inches (10 to 150 mm)
Fastener Range: M2 to M10 (and #2-56 equivalent hardware)
Material Capacity: Up to M8 in mild steel and M6 in stainless steel
System & Utilities
Electrical: 3-phase, 200V to 575V (50 or 60 Hz)
Air Requirements: 90 to 100 PSI (6 to 7 BAR) with a 1/2-inch minimum line flow
Footprint: 44" L x 34" W x 92" H (1143 mm x 467 mm x 2336 mm).
Key Features
Equipped with Haeger's patented safety system
Includes a Tooling Protection System (TPS) and digital batch counter
Touchscreen Control
