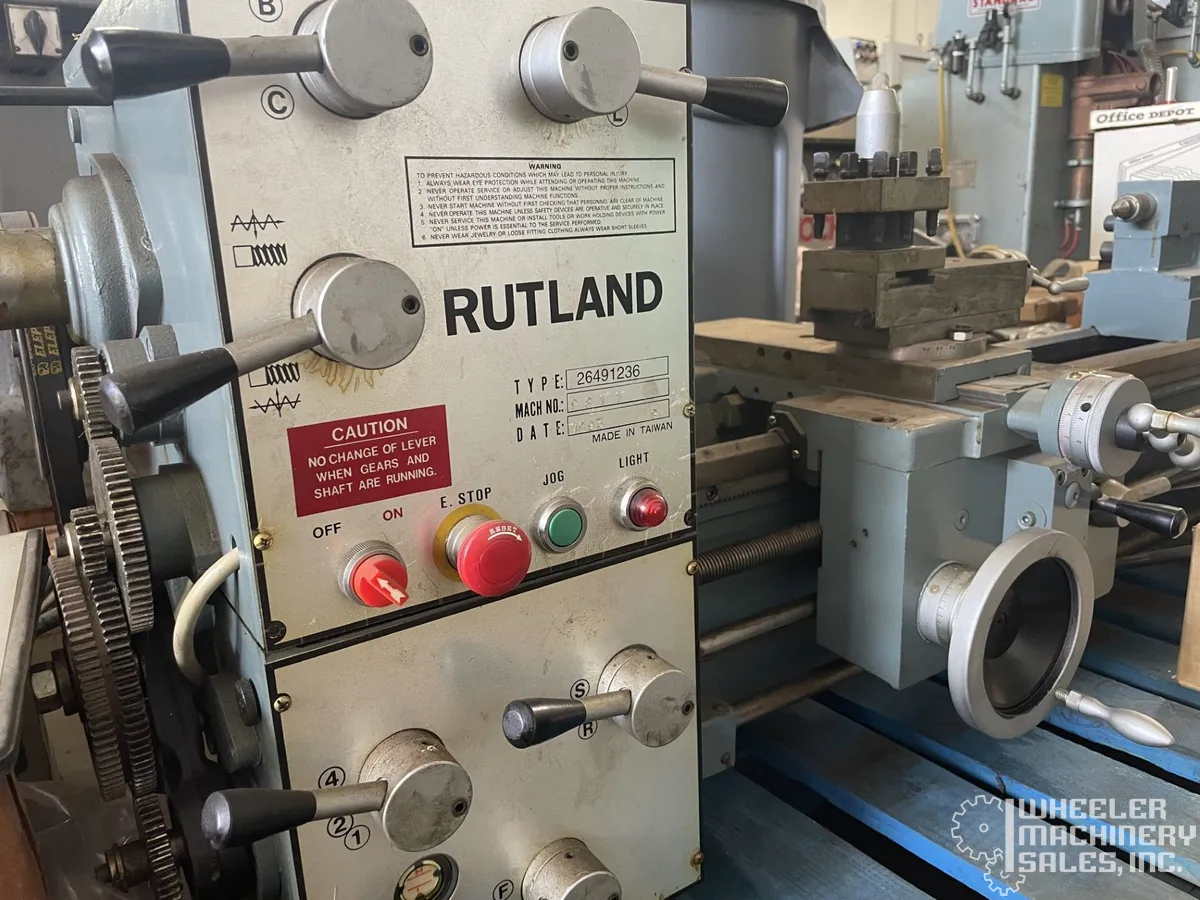

RUTLAND 26491236 Engine Lathe #8323 #1

RUTLAND 26491236 Engine Lathe #8323 #1

Capacities & Dimensions
Swing over bed: 12 inches
Swing over cross slide: 7 inches
Swing through gap: 17.69 inches (with the gap insert removed)
Distance Between Centers: 35 inches
Bed width: 7.06 inches
Overall length: Approx. 65 to 69 inches

Spindle & Headstock
Spindle bore diameter: 1.575 inches (allows passage of up to 1.5" bar stock)
Spindle nose mount: D1-4 cam-lock system
Spindle speeds: 9 total speed settings
Headstock taper: MT5 inside spindle bore

Threading & Feeds
Leadscrew pitch: 8 TPI (threads per inch)
Metric thread range: 0.4 to 7.0 mm pitch
Inch thread range: 4 to 112 TPI (via the universal quick-change gearbox)
Feed types: Powered longitudinal and cross feeds

Tailstock & Electricals
Tailstock barrel taper: MT3 (Morse Taper No. 3)
Tailstock barrel travel: 3.5 inches
Standard motor option: 1.5 HP motor
Power requirement: 220V, single-phase or three-phase setups
