| Swing | 11" | 279.4 mm |
| Centers | 18" | 457.2 mm |
| Threading | 11- 108 TPI | 11- 108 TPI |
| Taper | 4 Degree | 4 Degree |
| Power | 1.5 hp | 1.1 kW |
| RPM | 0 RPM | 0 RPM |
| Dimensions | 71 x 38 x 65 | 71 x 38 x 65 |
| Weight | 1,800 | 1,800 |

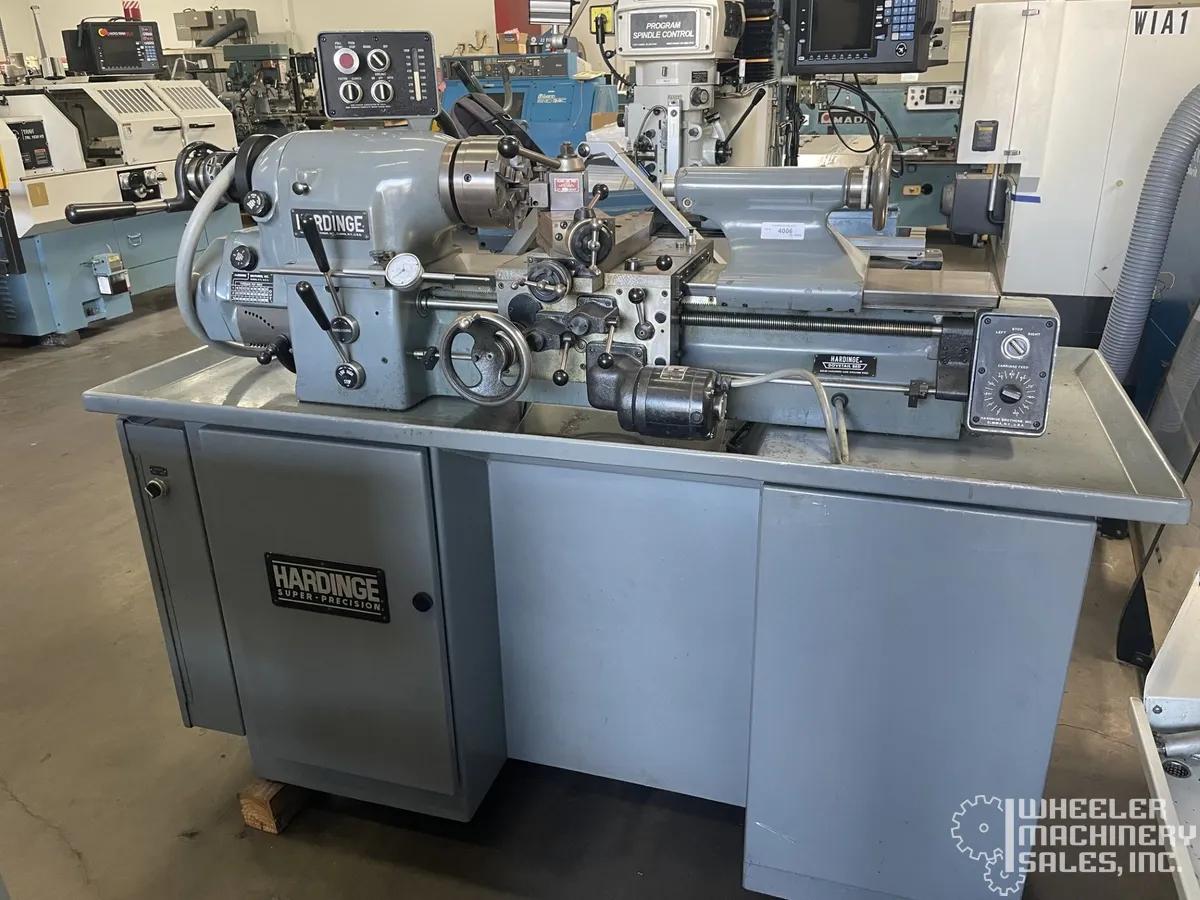

Hardinge HLV-H Precision Tool Room Lathe #8279 #1
SPECIFICATIONS:
Swing Over Bed: 11"
Swing Over Cross Slide: 6"
Distance Between Centers: 18"
Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4"
Threads Inch: 11- 108 TPI
Feeds (Variable): 1/4- 7 IPM
Tailstock Quill Taper: #2 MT
Tailstock Quill Travel: 3 3/4"
Motor: 1 1/2 HP
Dimensions (L x W x H): 71" X 38" X 65"
Weight: 1,800 Lbs.
EQUIPPED WITH:
Tailstock
This equipment has been sold. Similar equipment available now is shown below.
