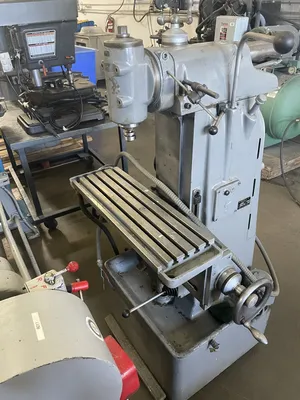

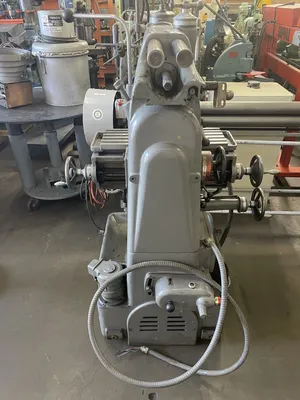

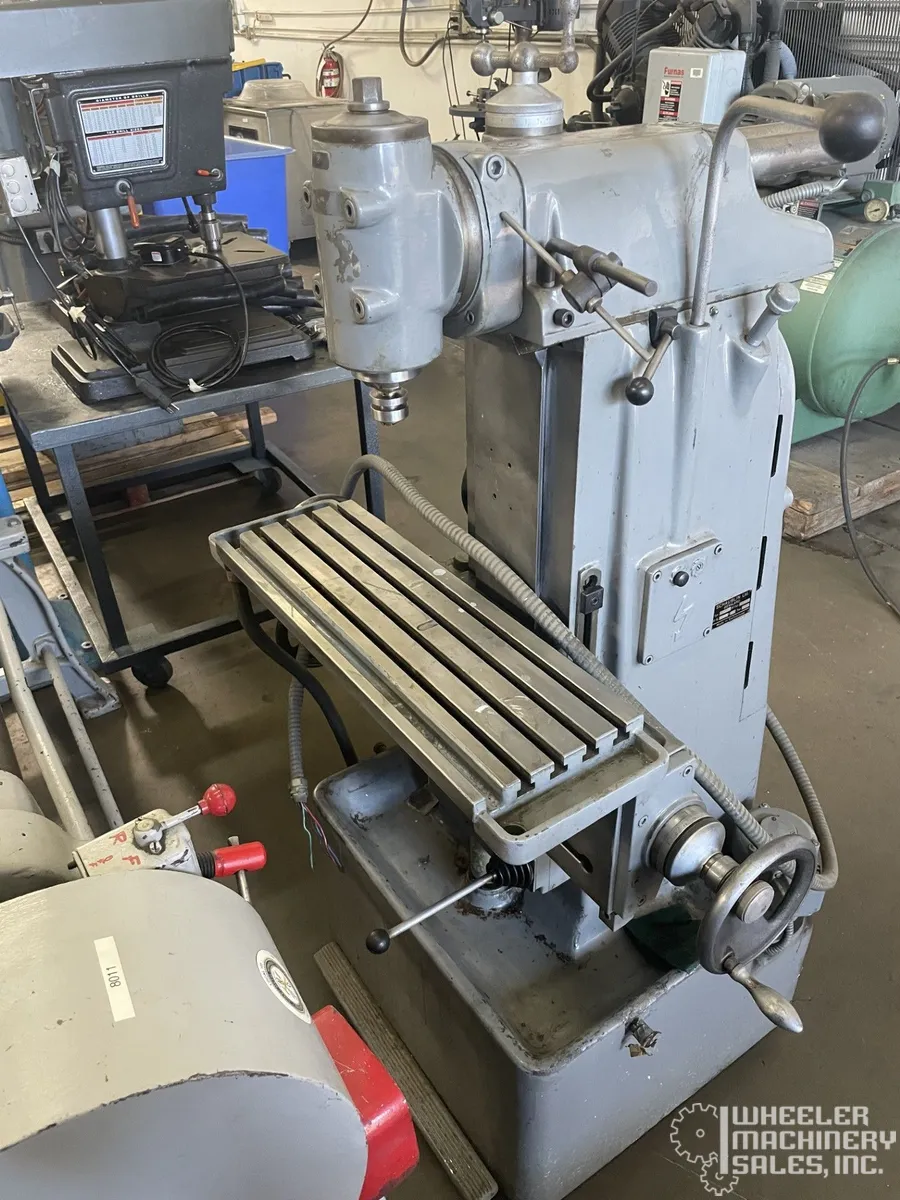

SCHAUBLIN 13 Universal Tool Room Mill #8257 #1
Have one to sell?
ConditionUsed
1 available
$10,500.00 USD
Schaublin 13 Universal Tool Room Mill in used condition. Features a 23.5" × 8.25" table, 10.25" X-axis, 5.9" Y-axis, 12.2"-14.7" Z-axis travel, and ISO 30 spindle taper. Speed adjusts 58-2000 RPM. Compact design: 59" × 43.3" × 63", 1,100 lbs.
SCHAUBLIN 13 Universal Tool Room Mill #8257 #1
Capacity & Travels

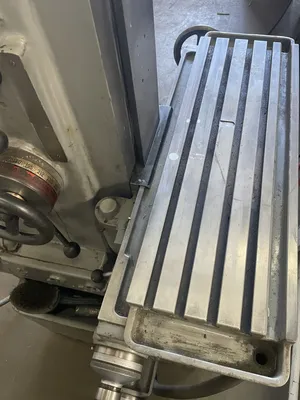

Table Size: 23.5" × 8.25"
X-Axis (Longitudinal) Travel: 10.25"
Y-Axis (Transverse) Travel: 5.9"
Z-Axis (Vertical) Travel: 12.2" to 14.7"
Max Distance (Vertical Spindle to Table): 12.2"
Max Distance (Horizontal Spindle to Table): 16.1"
Spindle & Speed
Spindle Taper: ISO 30
Speed Range: Stepless, continuously adjustable between 58 and 2,000 RPM
Motor Power: 1.5 kW (2 HP)
Dimensions & Weight
Overall Footprint: 59" × 43.3" × 63" (L × W × H)
Weight: 1,100 lbs.
