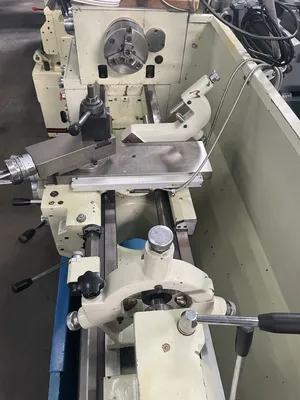

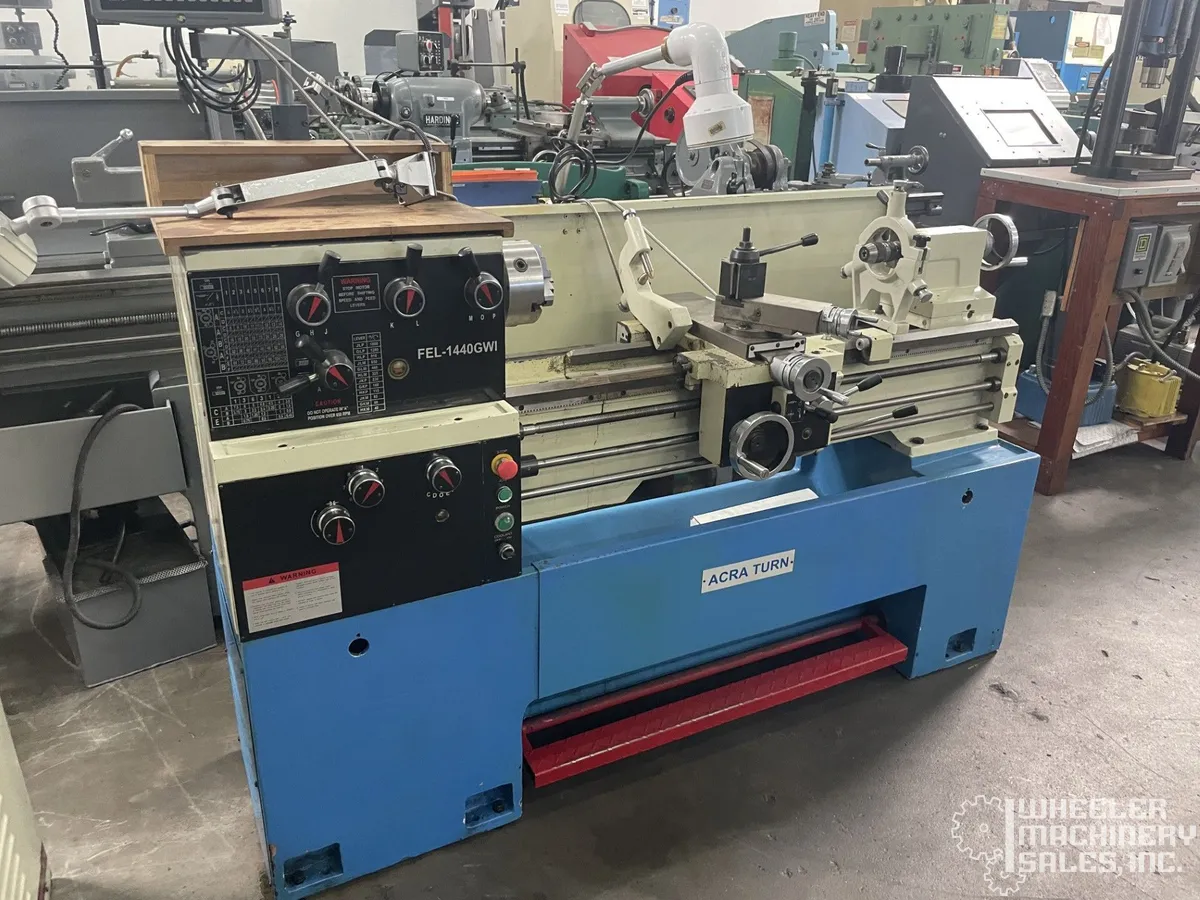

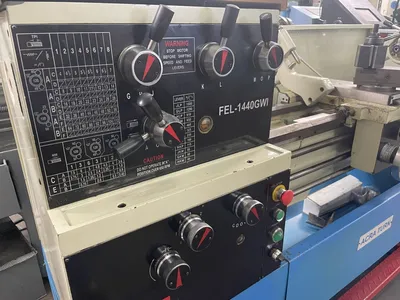

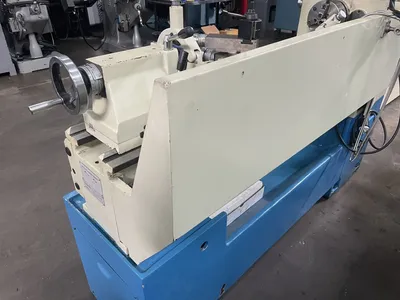

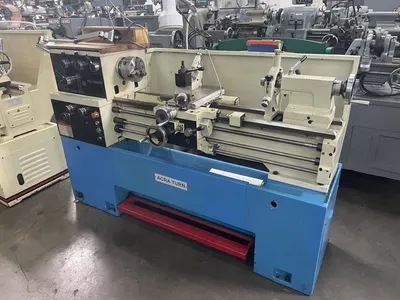

2009 ACRA TURN FEL-1440GW Engine Lathe #8243 #1

2009 ACRA TURN FEL-1440GW Engine Lathe #8243 #1

SPECIFICATIONS:
Capacity: 14″/20″ x 40″
Swing Over Bed: 14″
Swing Over Cross Slide: 8-1/4″
Swing In Gap: 20″
Length of Gap: 9-3/8″
Distance Between Centers: 40″
Spindle Bore: 1-1/2″
Spindle Nose: D1-4
Spindle RPM: 40 – 1,800 (12 Speeds)
Spindle Bearing Type: Taper Roller Bearing
Longitudinal Feeds: 0.0011″~0.0271″/rev.
Cross Feeds: 0.0003″~0.01″/rev
Inch Threads (28): 4-56 TPI
Metric Threads (37): 0.45mm~7.0mm
Maximum Tool Size: 1″ x 1″
Compound Slide Travel: 3-1/2″
Cross Slide Travel: 6″
Carriage Travel: 37″
Tailstock Travel: 4-5/4″
Diameter of Tailstock: 1-7/10″
Tailstock Taper: MT#3
Main Motor: 4 HP
Voltage: 220/440V AC / 3PH
Weight: 2,540 lbs.
Dimensions: 78 × 30 × 60 in

EQUIPPED WITH:
Acra SDS6-2V Digital Read Out
Work Light
Tool Post
Steady Rest
Follow Rest
Tailstock
