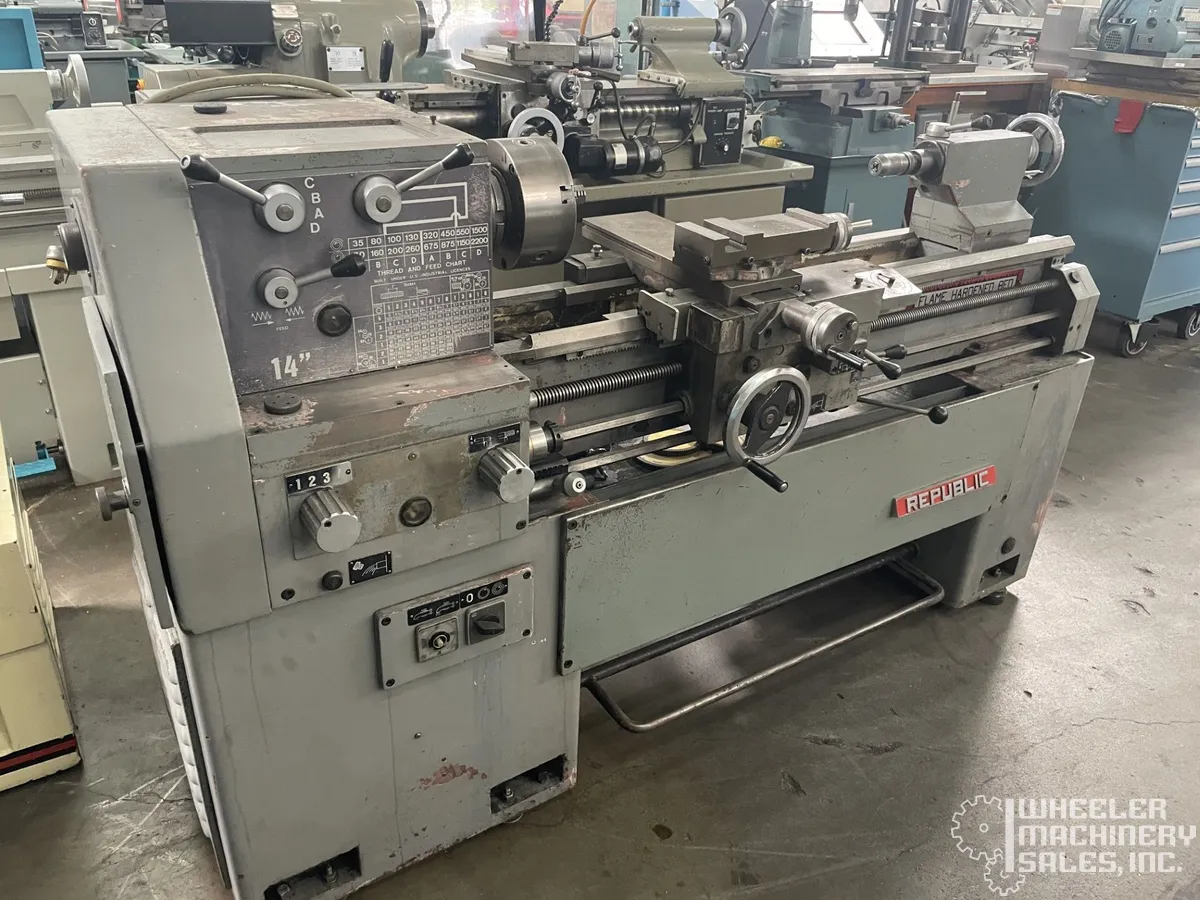

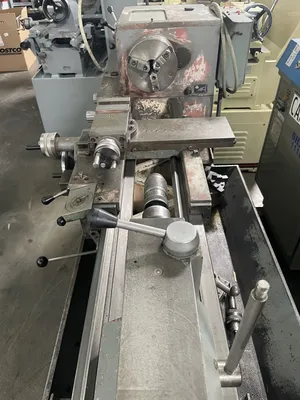

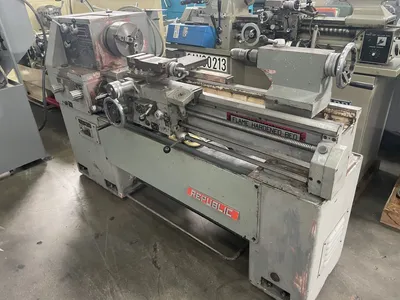

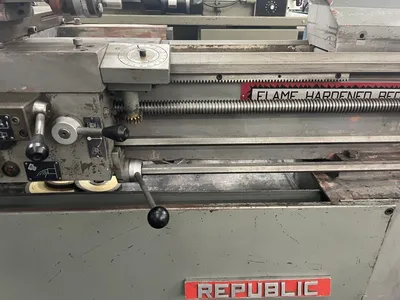

Republic Lagun 14″/20" x 40″ Gap Bed Engine Lathe #8239 #1

Republic Lagun 14″/20" x 40″ Gap Bed Engine Lathe #8239 #1

SPECIFICATIONS:
Swing over bedways: 14"
Swing over cross slide: 8-1/2"
Swing over gap: 20"
Distance between centers: 40''
Spindle nose: D1-6 camlock
Spindle bore diameter: 2"
Spindle speeds: (16) 40-2000 (
Cross slide travel: 9"
Compound slide travel: 5"
Longitudinal feeds: 0.002 to 0.066
Cross feeds: 0.001 to 0.033
Inch threads: (#)2 to 72 TPI (45)
Metric threads: (#)2 to 14 MM (39)
Module Threads: (#)0.3 to 3.5 (18)
Diametral threads: (#)8 to 44 (21)
Tailstock quill diameter: 2"
Tailstock quill travel: 5-1/2"
Tailstock quill taper: #4 MT
Bed width: 10-1/4"
Motor: 5 / 2.5 HP
Motor RPM: 1700 @ 5HP, 860 @ 2.5 HP
Volts: 220 Phase 3
Amps: 13 @ 5HP | 9 @ 2.5 HP
Approximate dimensions: 80"L x 30"W x 53"H
Approximate weight: 2,800 lbs.
