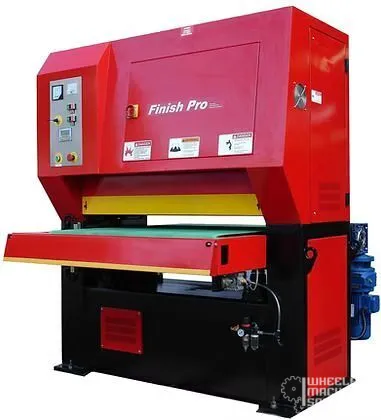

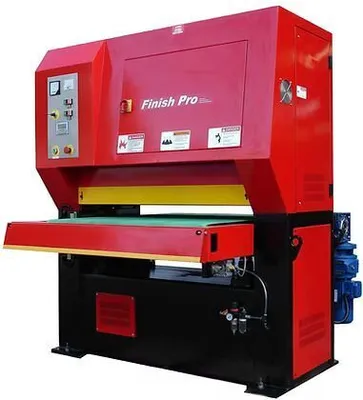

New GMC FP-2560 Heavy Duty Sander

Motorized Table Lift, with digital readout
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts

4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 80 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230, 3-Phase
One year Industrial Warranty for parts
We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Max. Part Width 24"
Abrasive Belt Size 25" x 60"
Contact Roller Size 8" Dia.
Passline Height 31" - 37"
Max. Thickness Capacity 6 1/8"
Min. workpiece length Min 8”, need a fixture for smaller parts 375LBS
Max. workpiece weight

Conveyor Drive Speeds 8 - 40 FPM
Infeed Conveyor Length 20"
Dust Colector Capacity 1,100 CFM
Main Motor 10 HP 3 Phase 45A Prewired: 230VAC

Conveyor Motor 1HP, 230V, 3PH
Table Lifting Motor 1HP, 230V, 3PH
Net Weight, Approx. 2,950 LBS
Machine Dimensions LxWxH 55" x 63" x 69"
Shipping Dimensions: 68" x 52" x 78"
