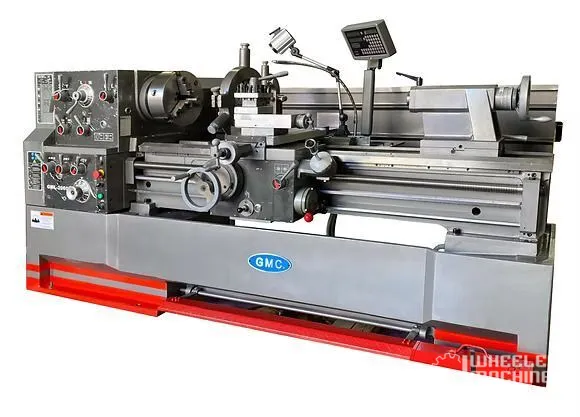

New GMC GML-2060 20 x 60" Bed Gap Metal Lathe | 2-Axis DRO | 3-1/8" Bore
Have one to sell?
ConditionNew
1 available
$25,850.00 USD
New
Discover precision with the new GMC GML-2060 Lathe. Featuring a 20" x 60" bed, 10HP motor, 3-1/8" spindle bore, and 2-axis DRO, this ISO 9001 certified machine offers 16 spindle speeds and a range of threading options for diverse applications.
ISO 9001 certified
Large spindle bore 3-1/8”
Heavy Duty spindle D1-8
Heavy Duty guideway width 12”
Heavy Duty main motor 10HP
16 spindle speeds from 25-1,800 rpm, 12 speeds
4-way rapid traverse on the carriage longitudinal and cross
60 kinds of inch threads, and 41 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
Max. swing over bed 20"
Max. length of workpiece 60"
Max. swing over cross slide 12 1/2"
Max. Swing in gap 29-1/8"
Width of Bed 12"
Effective length in gap to spindle 6"
Effective length in gap to chuck jaws 3 1/2"
Spindle bore 3 1/8" | D1-8
Taper of spindle center M.T.# 7 w/ reducing sleeve MT7/MT5
Spindle speeds 25-1,800 rpm / 12 steps
Longitudinal feeds 0.0011-0.063 IPR, 42 kinds
Cross feeds 0.0003-0.018 IPR, 42 kinds
Inch threads 2-112 TPI, 60 kinds
Metric threads 0.1-14 mm , 41 kinds
Diametral Pitch threads 4-112DP , 50 kinds
Module threads 0.1-7mm, 34 kinds
Max. travel of top slide 5"
Max. travel of cross slide 11 1/4"
Spindle length w/o chuck 17-1/2"
Leadscrew length X TPI 1 1/4" x 4 TPI
Diameter of tailstock quill 2-3/8”
Max. travel of tailstock quill 5-1/8”
Taper of tailstock quill center MT4
Main motor 10 HP 3 Ph.
Prewired: 220VAC / 35A
Optional: 440VAC / 20A
Coolant pump
1/8 HP 3 Ph.
Prewired: 220VAC
Optional: 440VAC
Net weight 5,750 lbs.
Overall dimensions, LxWxH 108" x 43" x 59"
