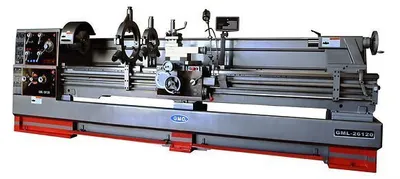

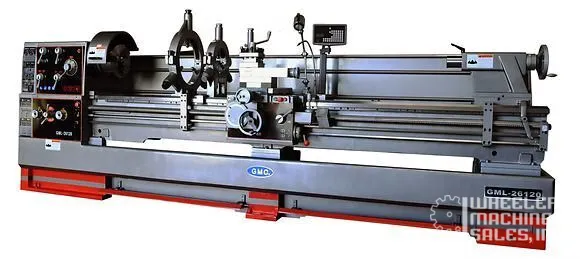

New GMC GML-26160 26 x 160" Metal Lathe with 2-Axis DRO

ISO 9001 certified
Large spindle bore 4-1/8”
Heavy Duty spindle D1-8
4-way rapid traverse on carriage
Heavy Duty guideway width 16”
Heavy Duty main motor 15HP
16 spindle speeds from 25-1,600 rpm, 16 speeds
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial warranty for parts
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
Max. swing over bed 26"
Max. length of workpiece 160"
Max. swing over cross slide 17 1/4"
Max. Swing in gap 35 3/8"
Width of Bed 16"
Effective length in gap to spindle 9"
Effective length in gap to chuck jaws 4 1/2"
Spindle bore 4 1/8" D1-8
Taper of spindle center M.T. #5
Spindle speeds 25-1,600 rpm / 16 steps
Longitudinal feeds 0.0016-0.055 IPR, 25 kinds
Cross feeds 0.0008-0.027 IPR, 25 kinds
Inch threads 80-7/16 TPI, 54 kinds
Metric threads 0.45-120 mm , 54 kinds
Diametral Pitch threads 7/8-160 DP , 42 kinds
Module threads 0.25-60mm, 46 kinds
Max. travel of top slide 9"
Max. travel of cross slide 14 1/2"
Spindle length w/o chuck 20 1/2"
Leadscrew length X TPI 1 1/2" x 2 TPI

Diameter of tailstock quill 3 1/2"
Max. travel of tailstock quill 9 1/4"

Taper of tailstock quill center MT5
Main motor 15HP, 220V/40A or 440V/20A, 3 phase
Rapid traverse motor 1HP, 220V or 440V, 3 phase

Coolant pump 1/8 HP, 220V, or 440V, 3 phase
Net weight 10,850 lbs.
Overall dimensions, LxWxH 227" x 46" x 72"
