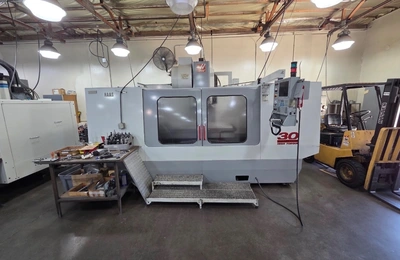

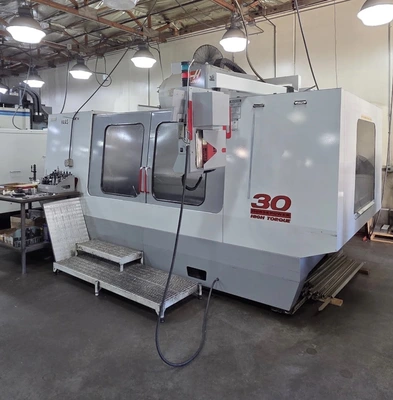

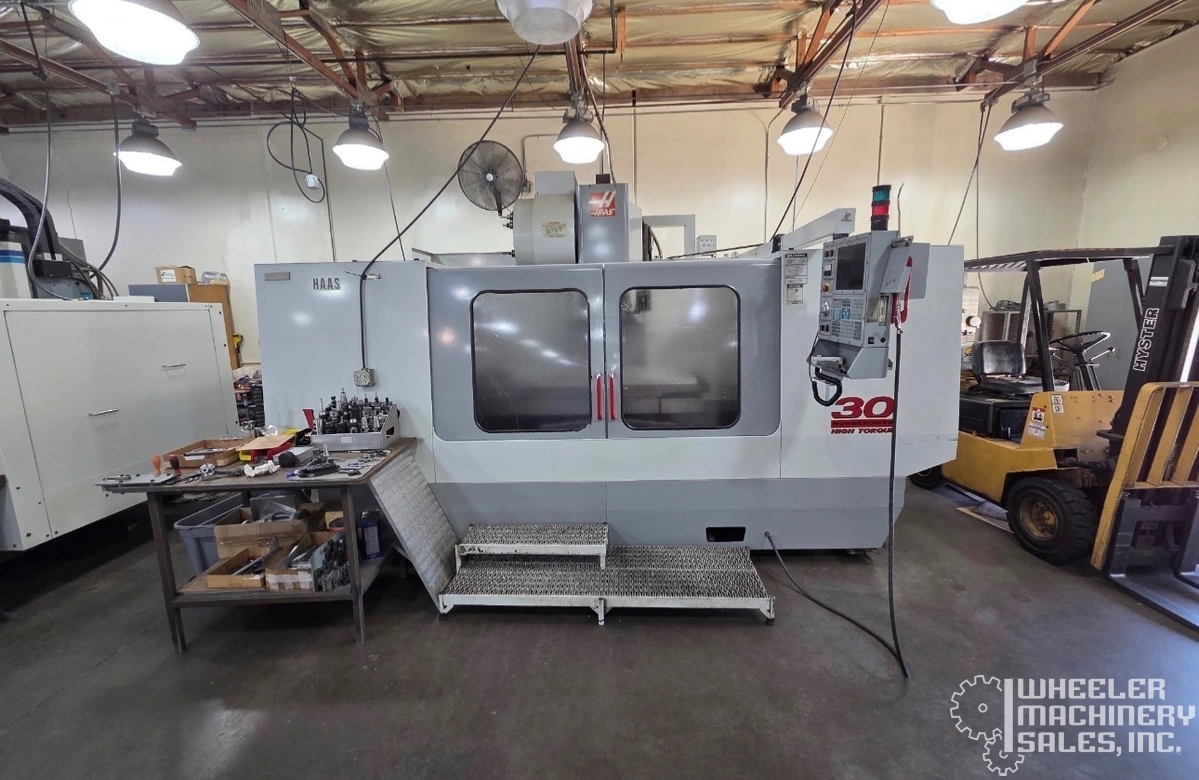

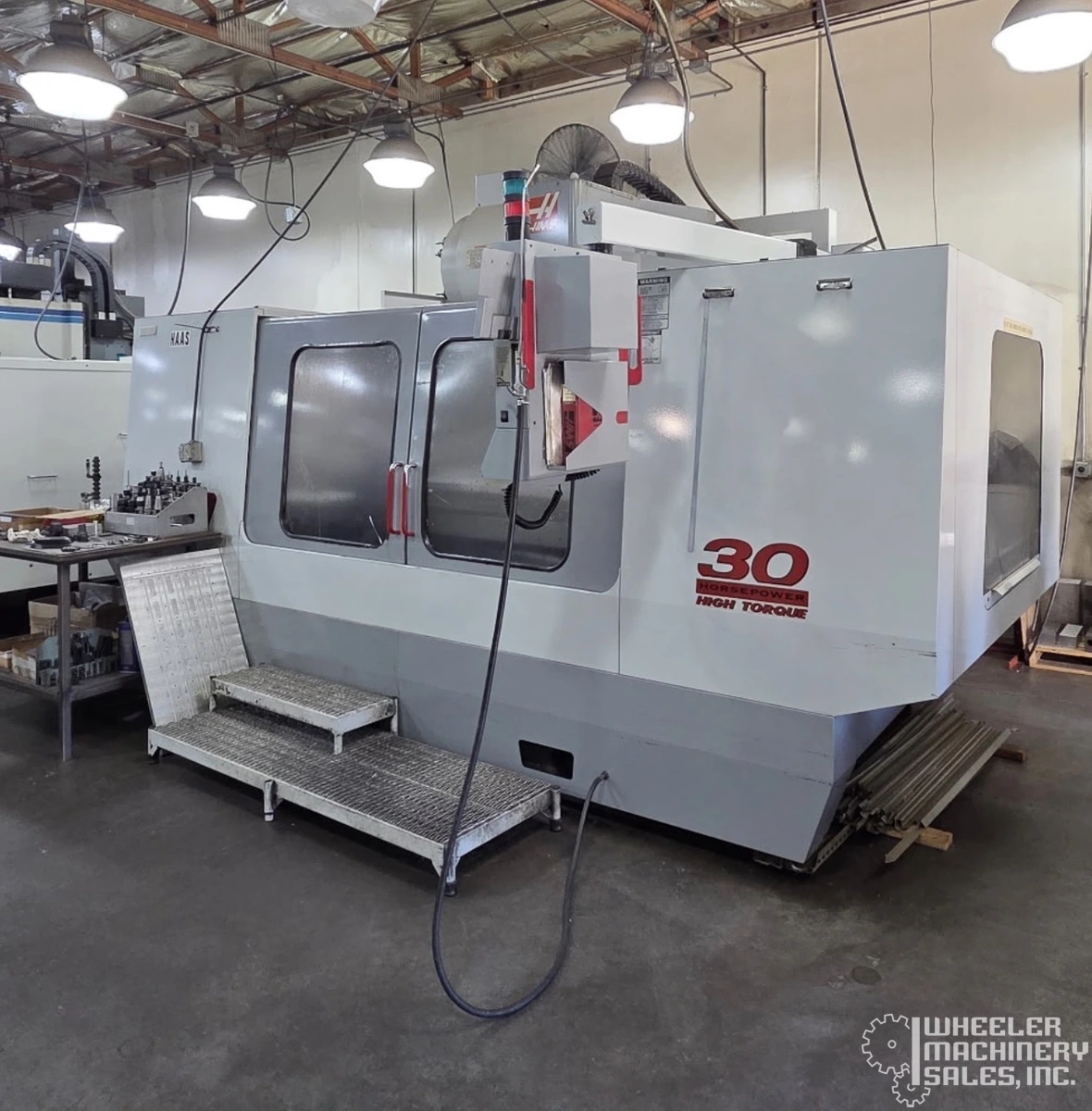

2000 HAAS VF-9/40 Vertical Machining Center #8231
Have one to sell?
ConditionUsed
1 available
$41,500.00 USD
2000 HAAS VF-9/40 Vertical Machining Center available, featuring a 30 hp power, 3-axis system with BT 40 taper, 10,000 RPM, and 25 ATC. Table dimensions of 36" x 84" with X: 84", Y: 40", Z: 30". Ideal for precision machining tasks.
2000 HAAS VF-9/40 Vertical Machining Center #8231
SPECIFICATIONS:
Travels:
X-Axis 84in
Y-Axis 40in
Z-Axis 30in
Table Size 84in x 36in
Spindle Speed 10,000 RPM
Spindle Taper Cat 40
Spindle Nose to Table Top 4in – 34in
Spindle Motor 30 HP
Tools 24+1 Side-Mount ATC
Table Load Capacity 4000 lbs.
Rapid Traverse Rates (X, Y & Z) 600 IPM
Max Tool Diameter 3.5″
Max Tool Weight 12 lbs.
Machine Dimensions (L x W x H) 214″ x 124″ x 128″
Machine Weight 28, 260 lbs.
EQUIPPED WITH:
HAAS CNC CONTROL
3.5″ Floppy Disc Drive
Rigid Tapping
Macros
Rotational & Scaling
M19 Spindle Orientation
4th axis Enabled
16MEG Memory Option
Flood Coolant Nozzles
24 Position Side Mount Tool Changer
Chip Auger
