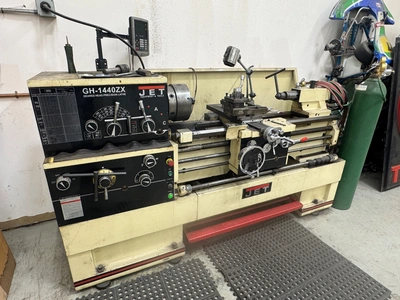

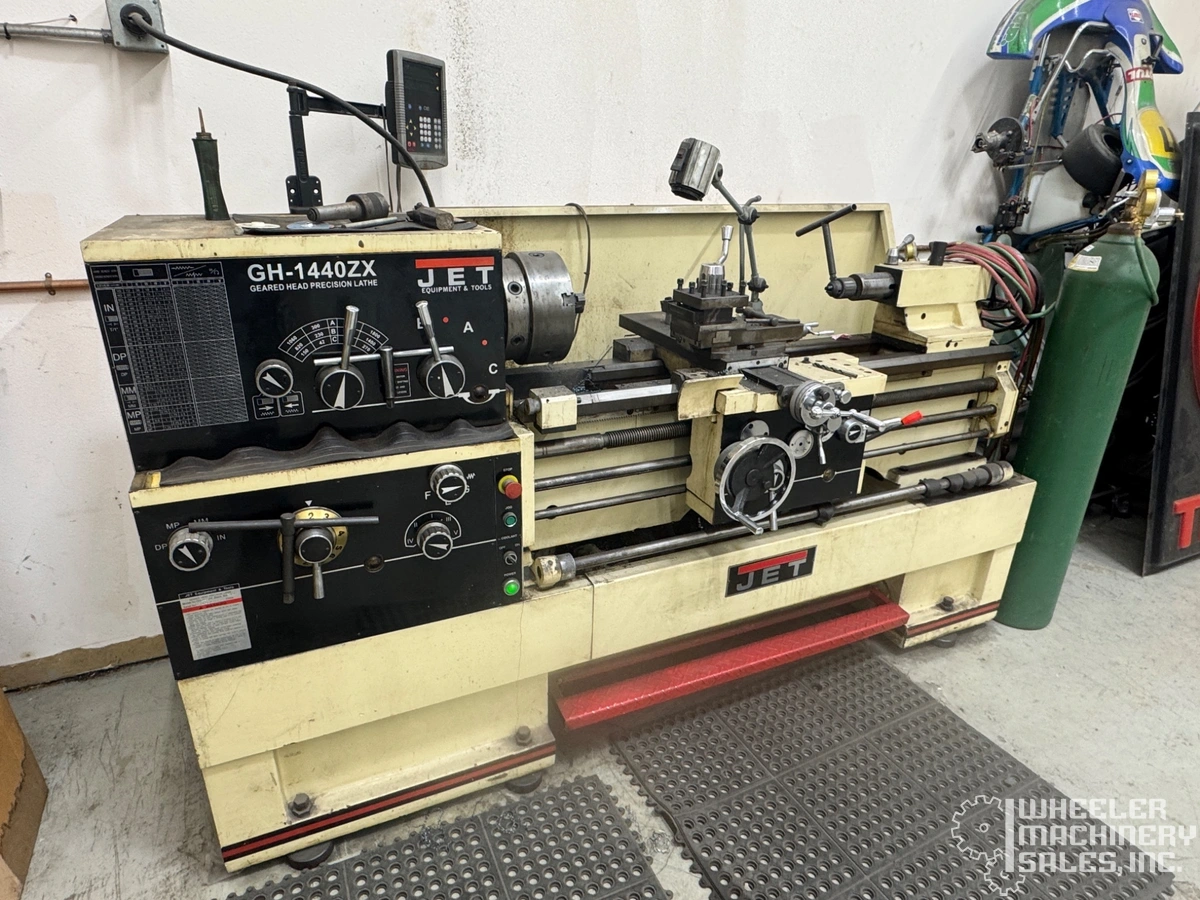

JET GH-1440ZX Engine Lathe #8217 #1

JET GH-1440ZX Engine Lathe #8217 #1

SPECIFCATIONS:
Swing Over Bed: 14"
Swing Over Cross Slide: 7-5/8"
Swing Through Gap: 23-5/8"
Distance Between Centers: 40"
Spindle Bore: 3-1/8"
Motor: 7.5 HP, 230/460V, 3-Phase
Spindle Speeds: 12 speeds, ranging from 42 to 1,800 RPM
Spindle Mount: D1-8 cam lock
Tailstock Taper: 4 MT
Tailstock Travel: 5"
Machine Weight: Approx. 5,187 lbs
Inch Threads: 61 options, 1-5/8 to 72 TPI
Metric Threads: 24 options, 0.5 to 20mm
Longitudinal Feeds (IPR): 0.002" - 0.067"

EQUIPPED WITH:
Steady Rest
Tailstock
2-Axis Digital Readout
in/mm Threading
