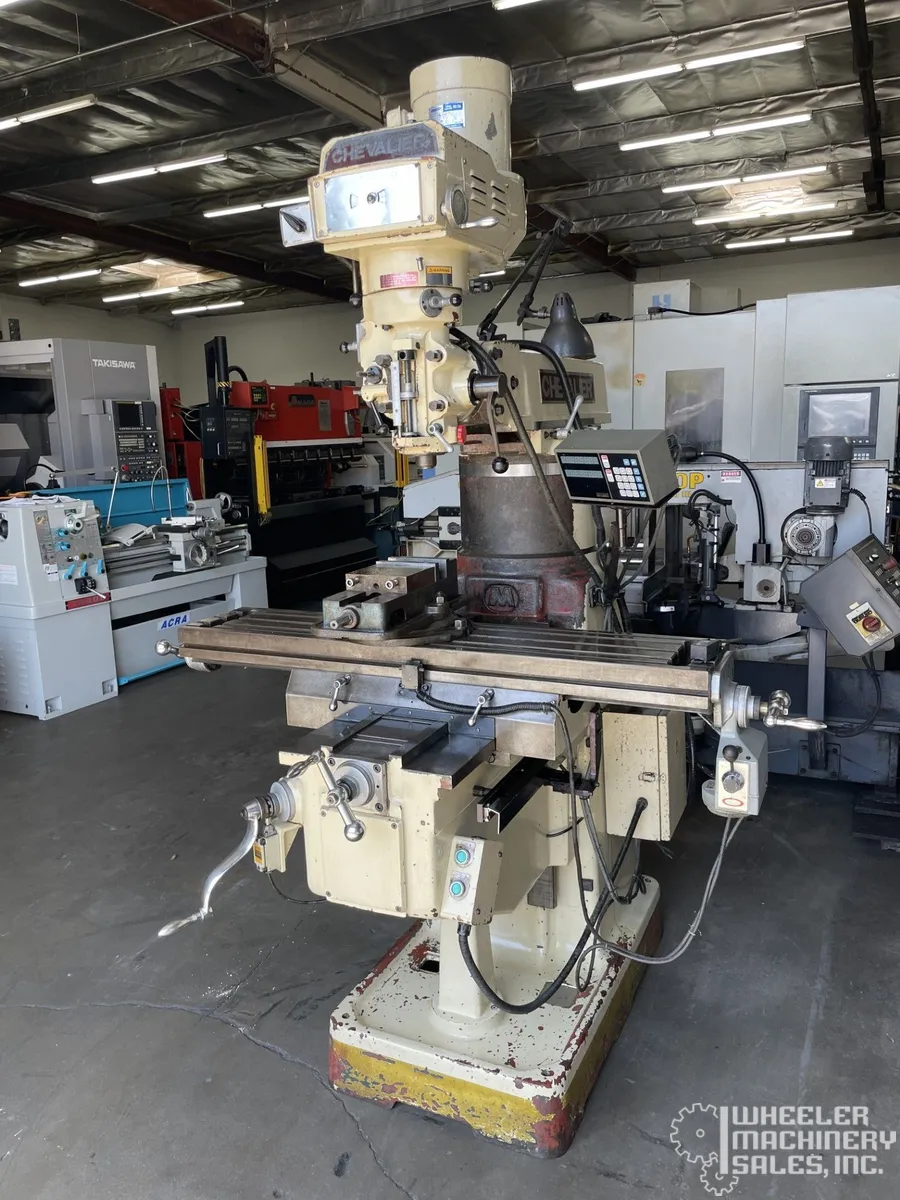

CHEVALIER FM-3KVH Vertical Mill #8094 #1
Have one to sell?
ConditionUsed
1 available
$7,500.00 USD
CHEVALIER FM-3KVH Vertical Mill, Model #8094, available in used condition. Features a 10" x 50" table size, ideal for precision milling tasks. Suitable for various industrial applications.
CHEVALIER FM-3KVH Vertical Mill #8203 #1
SPECIFICATIONS:
TABLE SIZE: 10" x 50"
X-TRAVEL: 32-3/4"
Y-TRAVEL: 16-1/8"
QUILL TRAVEL: 5"
KNEE TRAVEL: 15-1/2"
SPINDLE MOTOR: 3 HP
SPINDLE SPEED: 60 - 4500 RPM
SPINDLE TAPER: R-8
SPINDLE NOSE TO TABLE: 0" - 17-1/4"
WEIGHT (APPROX.): 3,100 LBS.
DIMENSIONS (APPROX.): 104" x 79" x 85"
EQUIPPED WITH:
6" Mill Vise
One Shot Lube
Variable Speed Head
8" Riser
Servo X-Axis Power Feed
Digital Read Out
CHEVALIER FM-3KVH Vertical Mill, Model #8094, available in used condition. Features a 10" x 50" table size, ideal for precision milling tasks. Suitable for various industrial applications.
CHEVALIER FM-3KVH Vertical Mill #8203 #1
SPECIFICATIONS:
TABLE SIZE: 10" x 50"
X-TRAVEL: 32-3/4"
Y-TRAVEL: 16-1/8"
QUILL TRAVEL: 5"
KNEE TRAVEL: 15-1/2"
SPINDLE MOTOR: 3 HP
SPINDLE SPEED: 60 - 4500 RPM
SPINDLE TAPER: R-8
SPINDLE NOSE TO TABLE: 0" - 17-1/4"
WEIGHT (APPROX.): 3,100 LBS.
DIMENSIONS (APPROX.): 104" x 79" x 85"
EQUIPPED WITH:
6" Mill Vise
One Shot Lube
Variable Speed Head
8" Riser
Servo X-Axis Power Feed
Digital Read Out
