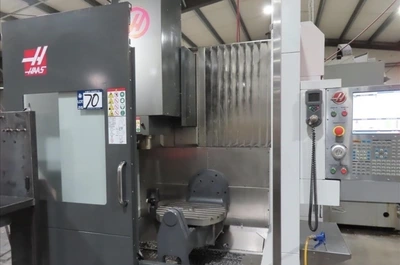

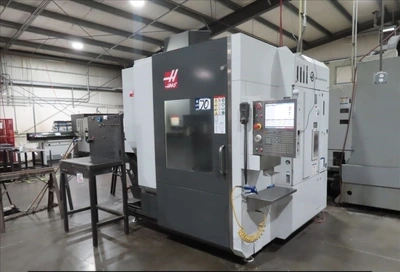

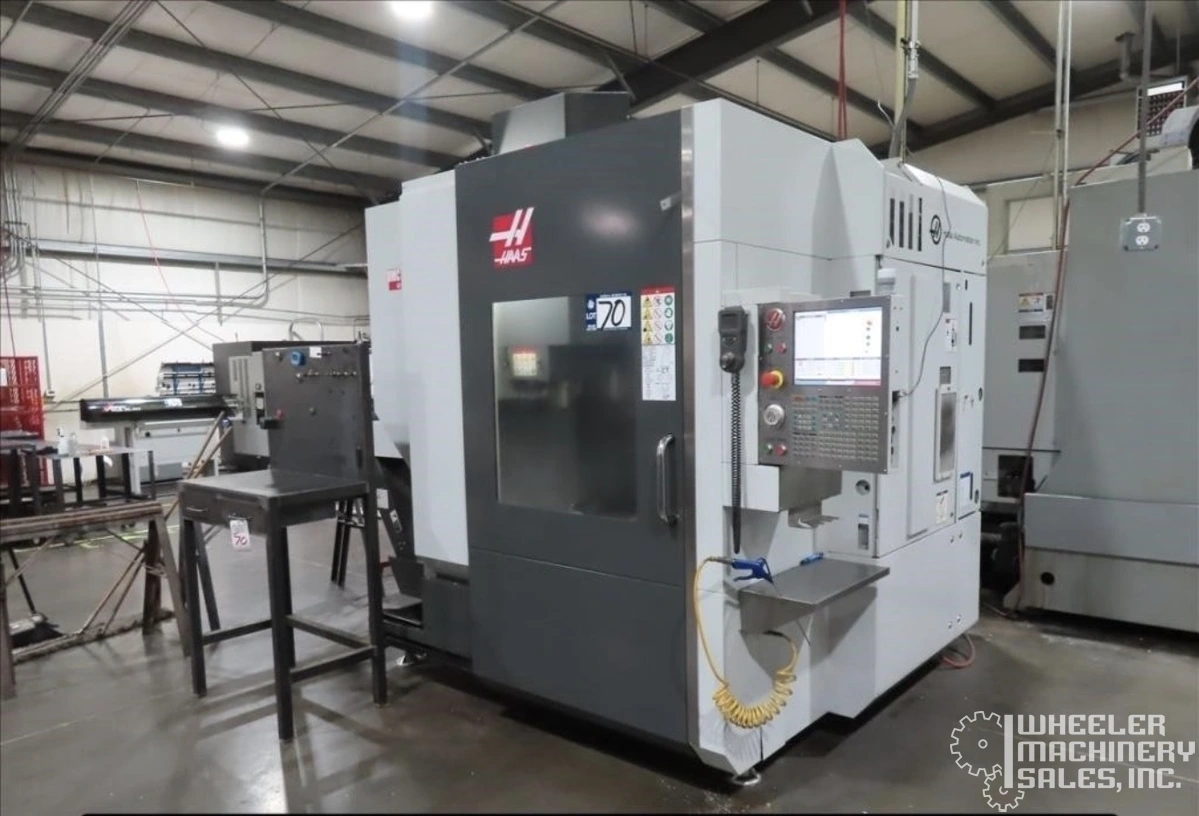

2016 HAAS UMC-750 5-Axis Vertical Machining Center #8193
Have one to sell?
$94,500.00 USD
ConditionUsed
1 available
2016 HAAS UMC-750 5-Axis Vertical Machining Center, Model #8193, ideal for complex geometries. As a used equipment, it's a cost-effective choice for enhancing production capabilities with its advanced multi-axis functionality.
2016 HAAS UMC-750 5-Axis Vertical Machining Center #8193
SPECIFICATIONS:
X-Axis Travel: 30"
Y-Axis Travel: 20"
Z-Axis Travel: 20"
Spindle to Nose Platter: 24"
Spindle Speed: 8,100 RPM
Spindle Motor: 30 HP
Torque: 90 ft-lbf @ 2000 RPM
Taper: CT40 / BT 40 / HSK-A63
B-Axis Tilt
Travel: 120 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 2240 ft-lbf
C-Axis Rotation
Travel: 360 Degrees
Speed: 50 Degree/Second
Torque (Continuous): 1854 ft-lbf
Part Swing: 27"

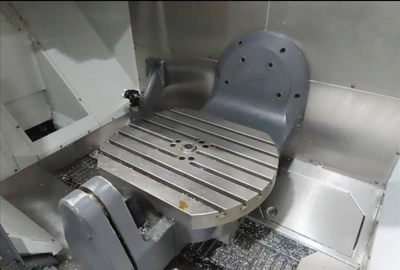

Platter
Platter Diameter: 19.7"
Weight on Platter: 660 lbs
Weight on Platter w/ Pallet Pool: 200 lbs
T-Slot Center Distance: 2.48"
Feedrates
Cutting: 650 IPM
X/Y/Z - Axis: 900 IPM

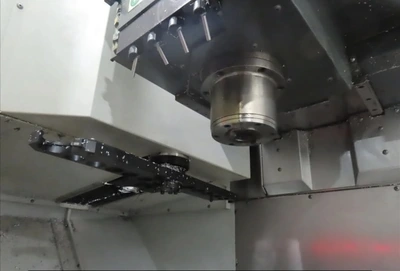

Tool Changer
Capacity: 30+1
Tool Diameter: 2.5"
Tool Diameter: 5"
Tool Length: 12"
Tool Weight: 12 lbs
Machine Dimensions: 168" x 92.5" x 110"
Machine Weight: 14,250 lbs
