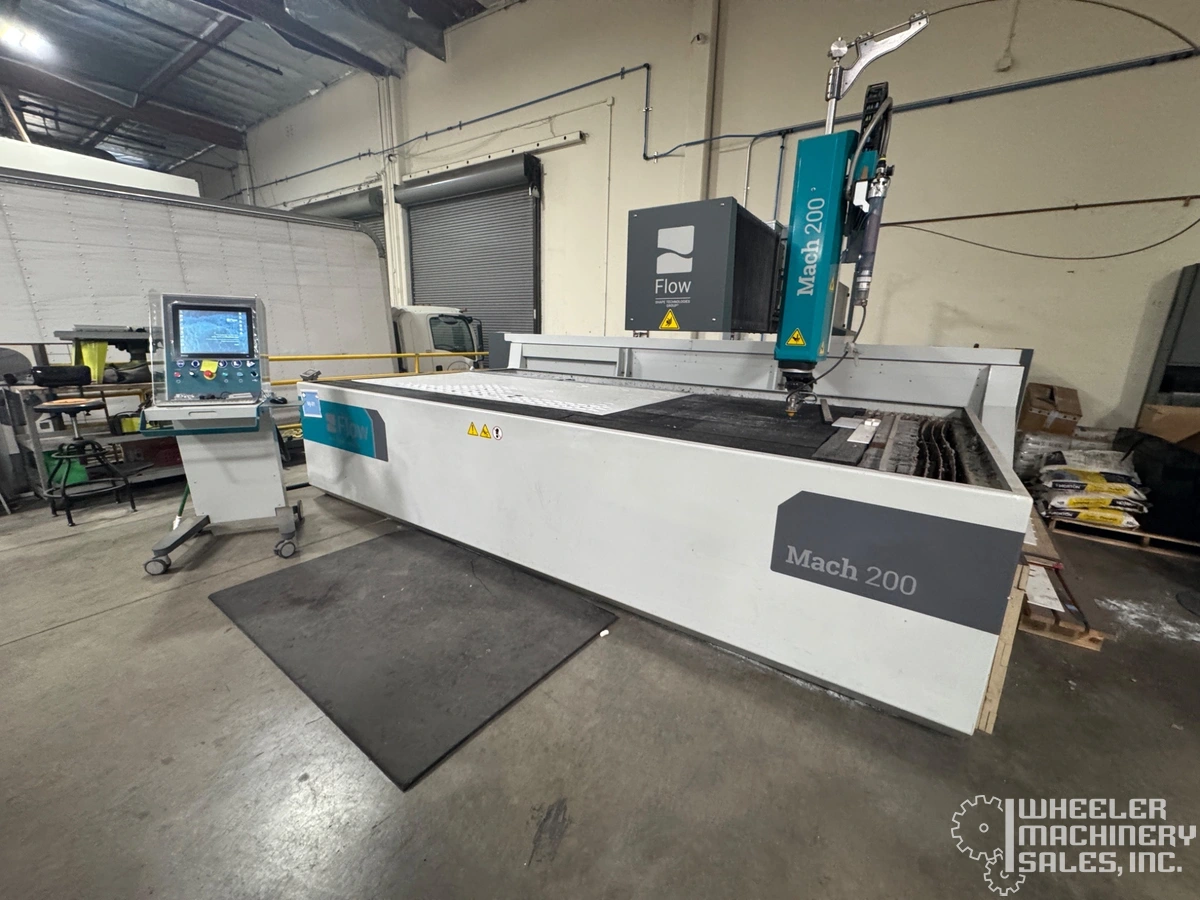

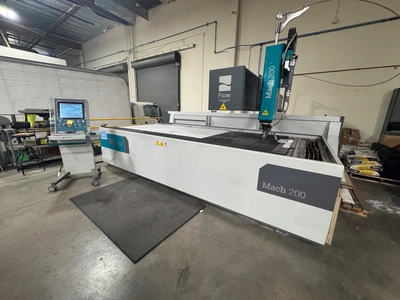

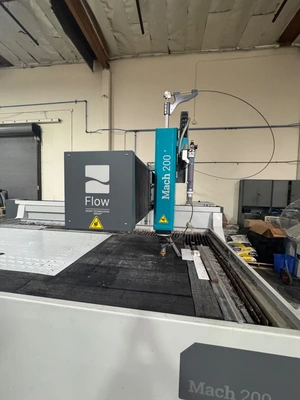

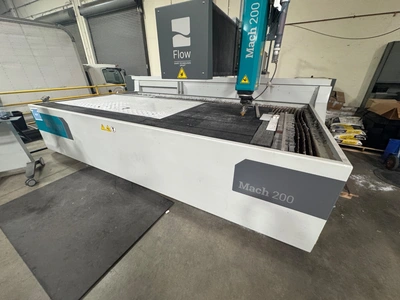

2021 FLOW Mach 200 4020 Pivot CNC Water Jet Cutting System #8186

2021 FLOW Mach 200 4020 Pivot CNC Water Jet Cutting System #8186

Machine Specifications:
Table size: 1828.8 mm x 3962.4 mm (72 in. x 156 in.)
Pump operating pressure: 60,000 psi
Z-axis travel: 203 mm (8 in.)

Catcher tank load rating
Mild steel: 1465 kg/m² (300 lb/ft²)
Stainless steel: 977 kg/m² (200 lb/ft²)
Acceleration: 0.05 G
Contouring speed maximum: 7620 mm/min (300 in./min)
Rapid traverse maximum: 10,160 mm/min (400 in./min)
Ballbar circularity: ± 0.09525 mm (0.00375 in.)
Linear straightness accuracy: ± 0.0991 mm (0.0039 in.)
Repeatability: ± 0.051 mm (0.002 in.)

Operating parameters
Mixing tube for Standard Waterjet: 4 in. length
Mixing tube for Pivot+ Waterjet: 3 in. length
Standoff: 2.54 mm (0.10 in.)
Pivot+ Waterjet: 60° tilt maximum

Electrical
Power supply: 3-phase
Voltage/frequency: 480 VAC/60 Hz
Main circuit breaker size: 20 amp

Equipped With:

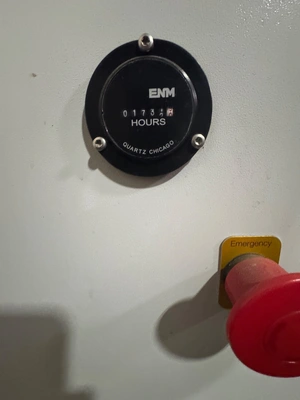

1,732 Hours on Meter

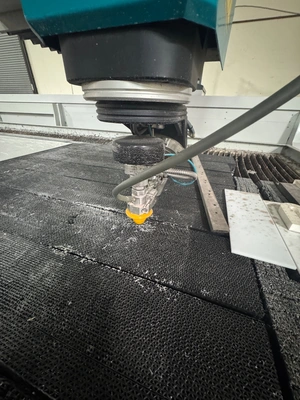

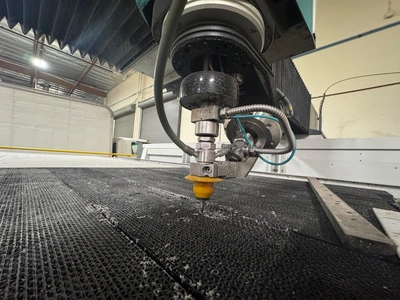

5-Axis Flow Articulating Head
60,000 psi Pump

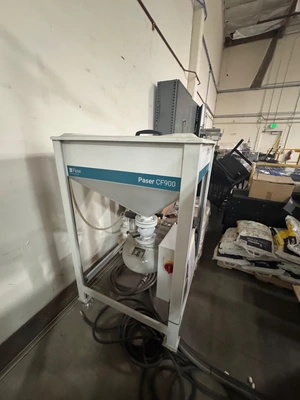

FLow Paser CF900 Garnet Hopper
