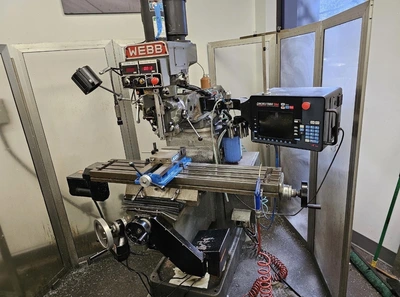

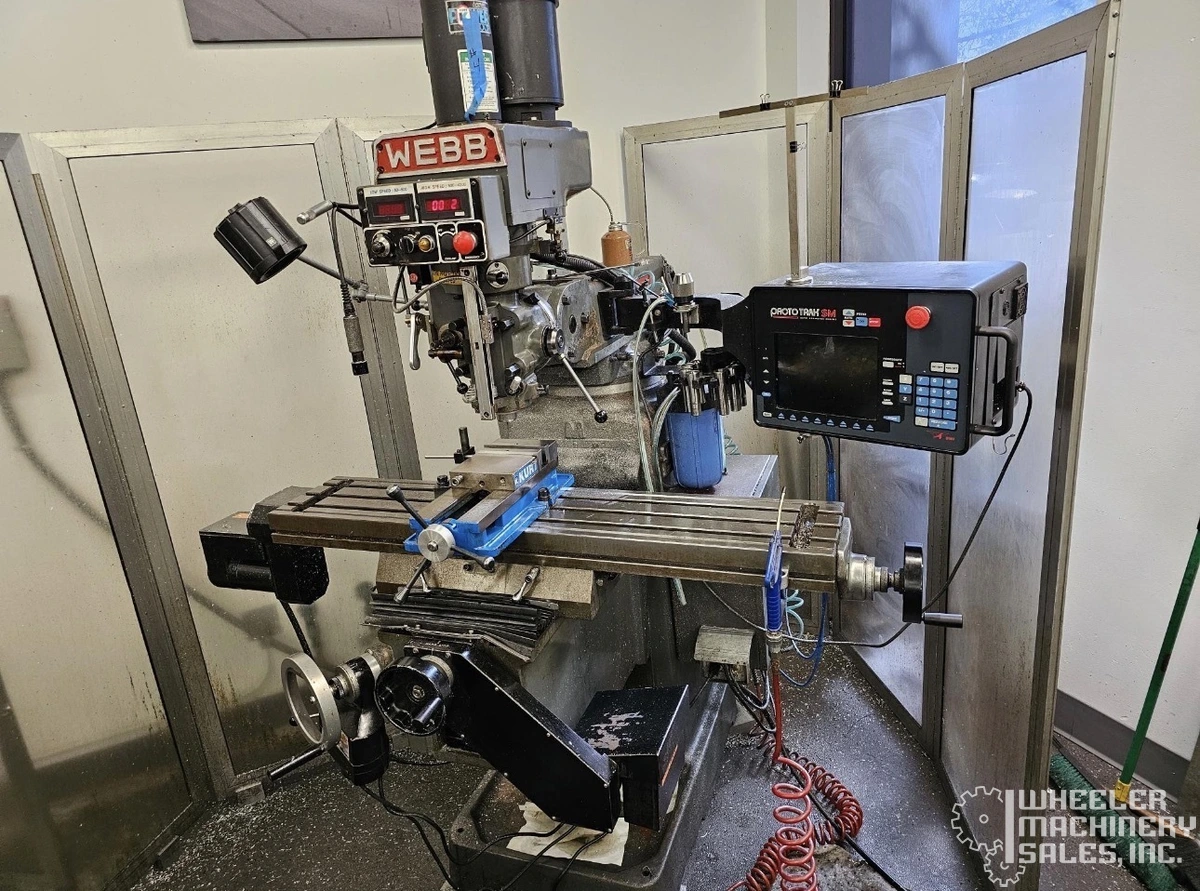

WEBB 3VKF 2-Axis CNC Vertical Mill w/ Prototrak SM Control #8172 #1
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available
WEBB 3VKF 2-Axis CNC Vertical Mill for sale. Used condition; perfect for precision machining needs. Reliable WEBB craftsmanship ensures efficient milling performance. Ideal for workshops seeking high-quality equipment. Don't miss this opportunity.
WEBB 3VKF 2-Axis CNC Vertical Mill w/ Prototrak SM Control #8172 #1
SPECIFICATIONS:
Table Size: 10" x 50"
Table Travel (X-Axis): 32"
Saddle Travel (Y-Axis): 14"
Knee Travel (Z-Axis): 15"
Quill Travel: 4"
Ram Travel: 22"
Spindle Motor: 3 HP
Spindle Speed: AC Frequency Drive Head 60-550-4500 RPM
Spindle Taper: R-8
Quill Diameter: 3.375"
Quill Feed Rate: 0.0015" / 0.003" / 0.006" in/rev
Drilling Capacity (Manual / Power): 0.75" / 0.37" diameter
Boring Capacity: 6" diameter
Milling Capacity: 2.0 in³/min
Maximum Work Load (Center): 850 lbs
Spindle Nose to Table Surface: 2.75" - 17.75"
Spindle Center to Column: 5" - 27"
EQUIPPED WITH:
Prototrak SM Control (2012)
Kurt Power Lock Draw Bar
Quill Scale Through Control
One Button Quick Stop
Frequency Controlled Speed Ranges (60 - 4,200 RPM)
