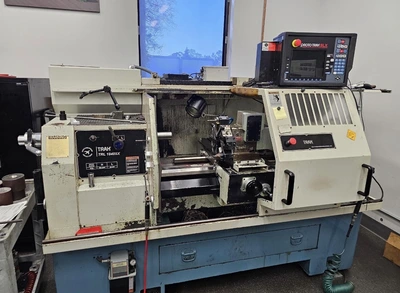

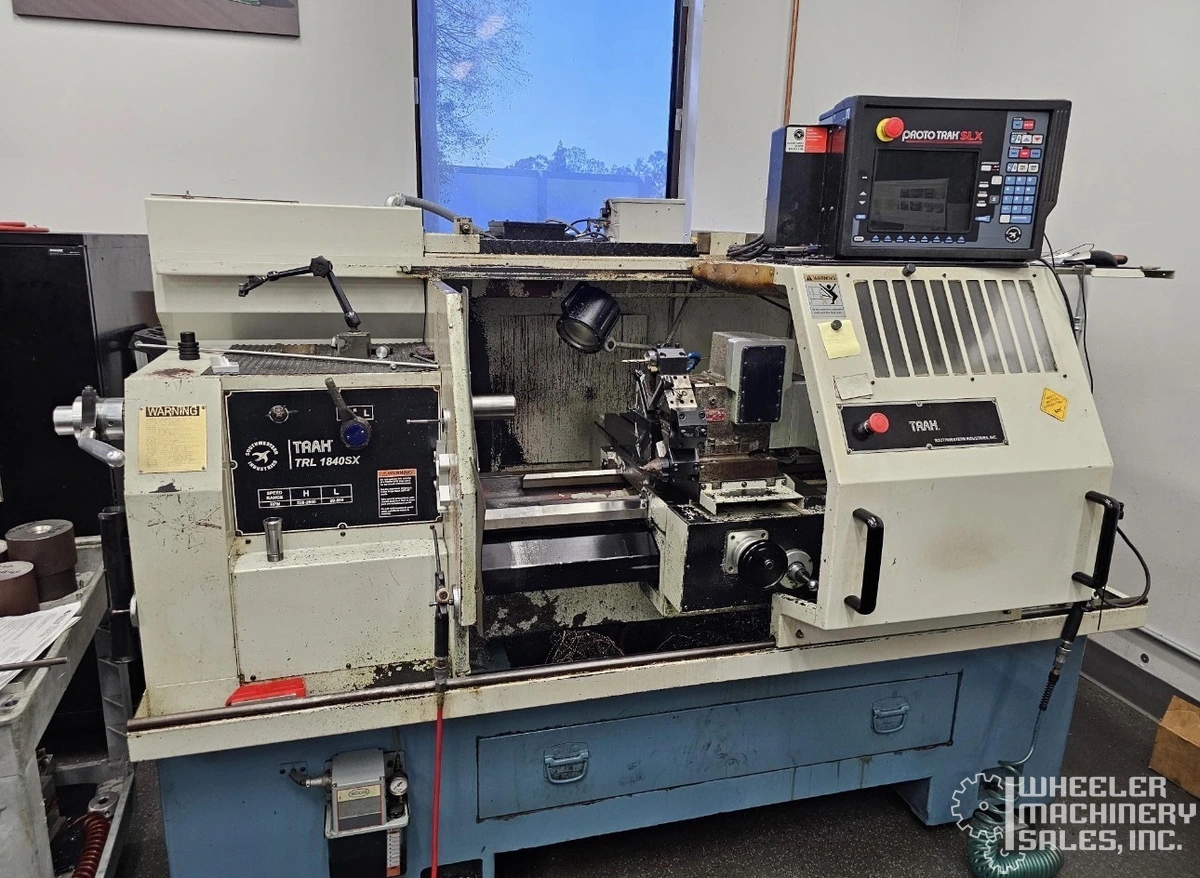

2009 SOUTHWESTERN INDUSTRIES Trak 1840SX CNC Lathe #8171 #1

2009 SOUTHWESTERN INDUSTRIES Trak 1840SX CNC Lathe #8171 #1

SPECIFICATIONS:
Distance Between Centers: 40 1/4″
Swing Over Bed: 18 1/2″
Swing Over Saddle Wings: 17″
Swing Over Cross Slide: 9″
Cross Slide Travel: 13″
Spindle Nose: D1-6
Spindle Though Hole: 2.36″
Spindle Taper: MT #6
Spindle Speed: 80-2500 RPM
Spindle Motor: 10 HP
Tailstock Quill Diameter: 2.96″
Tailstock Quill Stroke/Center: MT#5
Rapid Feed Rates:
(X): 75 (Max)
(Z): 150 (Max)
Dimensions: 91″L x 53″W x70″H
Machine Weight: 4,500 lbs

EQUIPPED WITH:
ProtoTrak SLX CNC Controls
Dorian Smartdex 25N Turret
Tailstock
