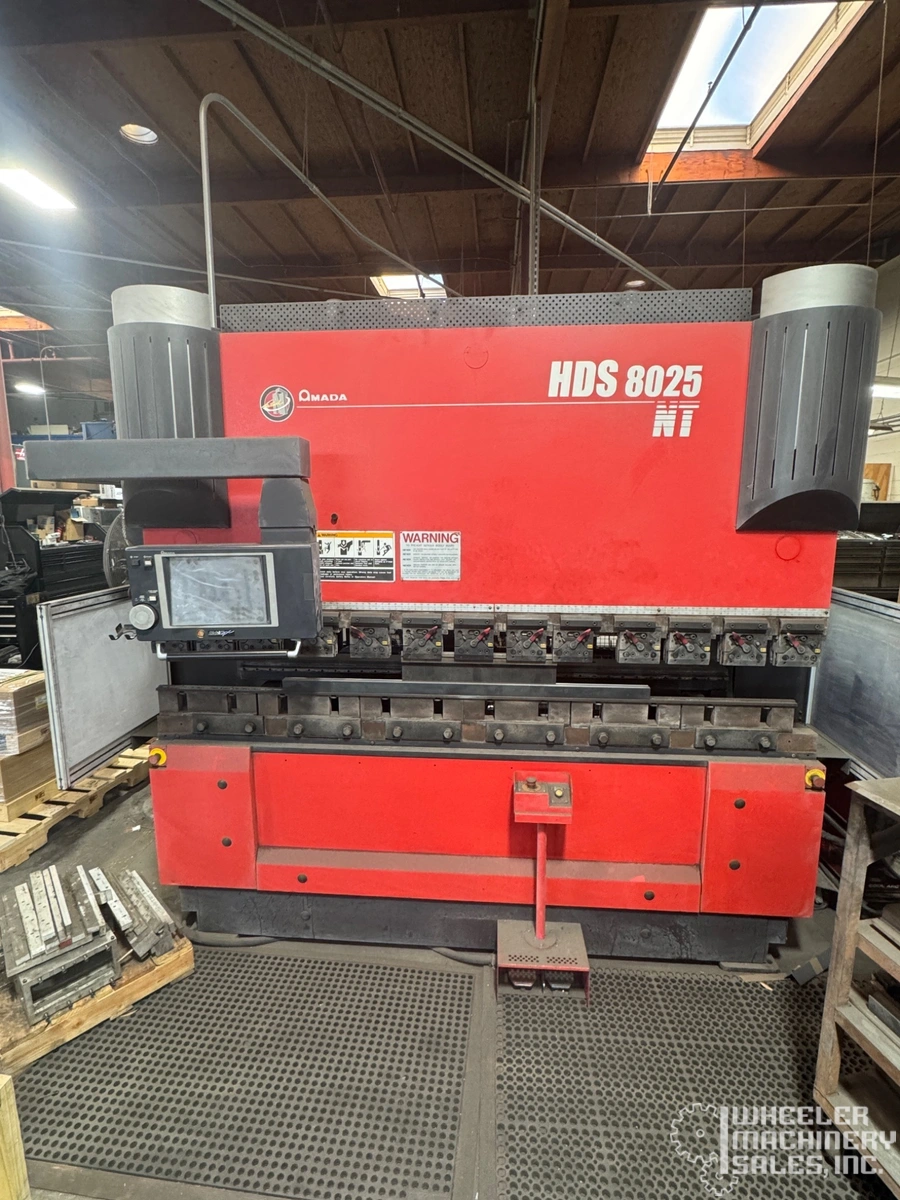

2008 Amada HDS 8025NT Servo-Hydraulic Press Brake #8158 #2

2008 Amada HDS 8025NT Servo-Hydraulic Press Brake #8158 #2

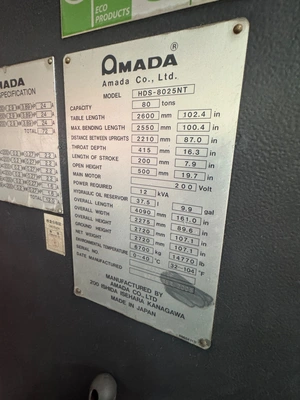

GENERAL SPECIFICATIONS
Table Length: 102.4”
Maximum Bending Length: 100.4”
Distance Between Housings: 8”
Throat Depth: 16.3”
Length of Stroke: 7.9”
Open Height: 19.7”
Backgage Travels: 7.55”
Fast Approach Speed: 472 IPM
Slow Bend: 47 IPM
Fast Return: 474 IPM
Approximate Dimensions: 161” X 89” X 107” H
Approximate Weight: 14,770 Lbs

EQUIPPED WITH:

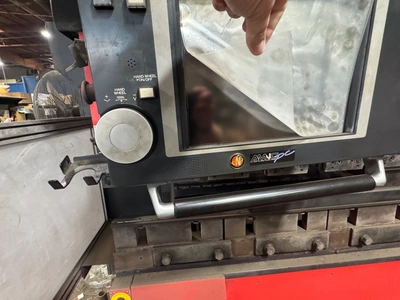

AMNC-PC Controls
5 - Axis Backgauge with 4 Input Methods (2-D Graphics Mode, Angle Mode Depth Mode and 3-D Mode)
Hybrid Drive System Incorporating AC Servo Motor & High-Efficiency Pump System

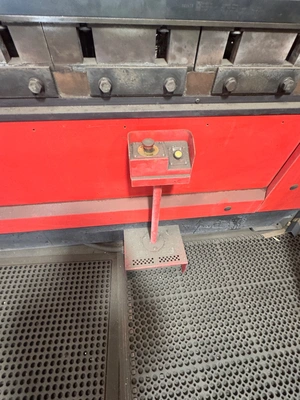

Portable Foot Pedal w/ Emergency Stop and Upper Die Clamps
