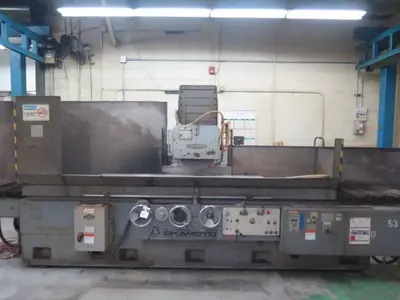

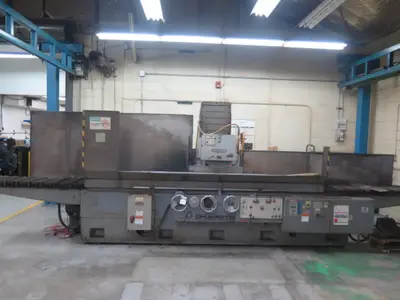

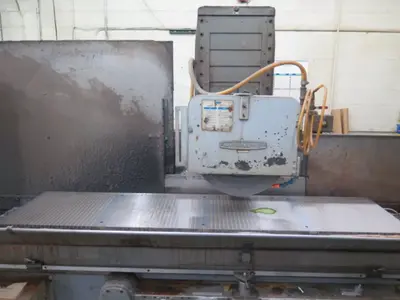

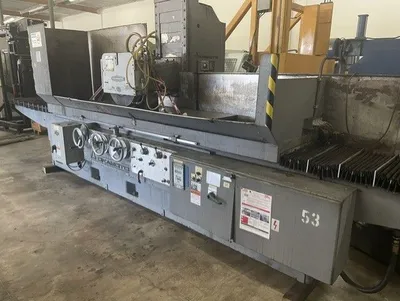

OKAMOTO PSG-205 3-Axis Surface Grinder #8157 #2
Have one to sell?
$42,500.00 USD
ConditionUsed
1 available

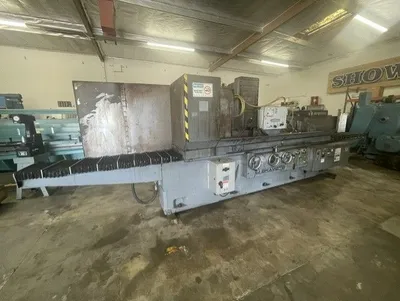

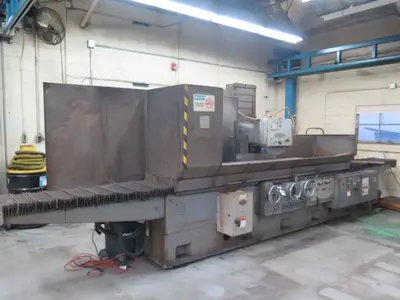

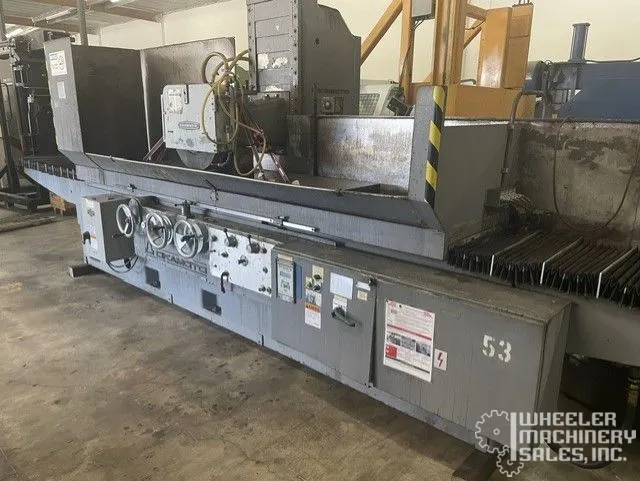

Used OKAMOTO PSG-205 3-Axis Surface Grinder for sale. Features a 20" x 80" table, horizontal orientation, 10 hp power, and a 20" grinding wheel diameter. Ideal for precise grinding tasks. Contact for more details.
OKAMOTO PSG-205 3-Axis Surface Grinder #8157 #2
SPECIFICATIONS:
Table Working Surface: 80.71" x 19.7"
Max Cross Travel of Column: 20.86"
Maximum Longitudinal Travel of Table: 84.64"

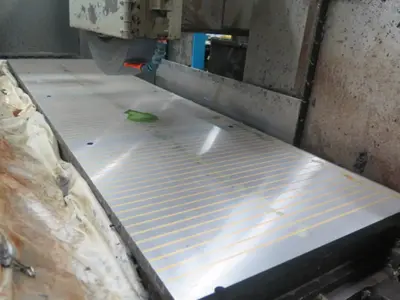

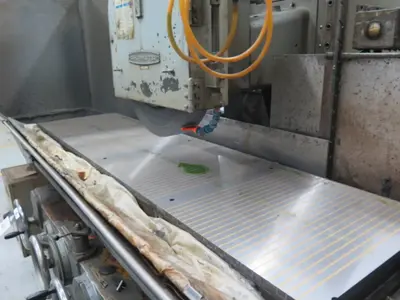

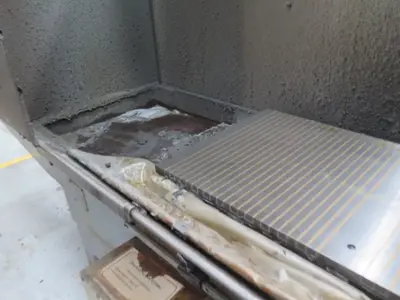

Max Chuck Size: 80" x 20"
Auto Longitudinal Feed Rate: 1 to 100 FPM
Max Distance Spindle / Wheel to Table: 23.4" (Under 20" Wheel)
Max Wheel Size : 20" x 2" x 5"
Wheel Speed: 1100 RPM
Cross Feed Automatic Increments: .20" to 1.37" (Intermittent) / 1-16.4'/Min (Continuous per Minute)
Automatic Feed per Column Reversal: .00002" to .002"
Vertical Rapid Feed: 12" / Minute

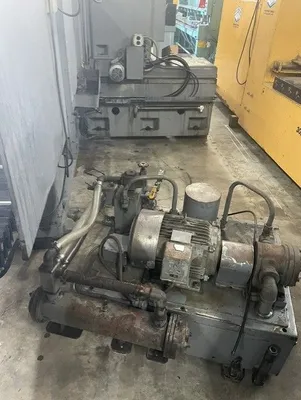

Hydraulic Motor: 7-1/3HP
Spindle Drive: 10HP
