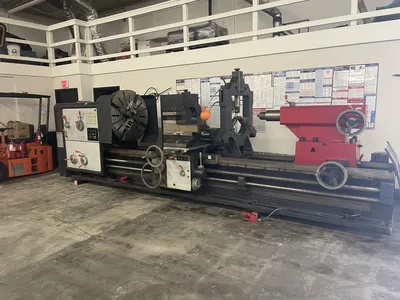

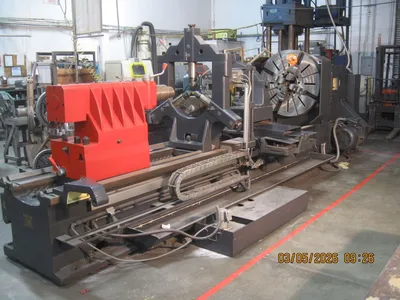

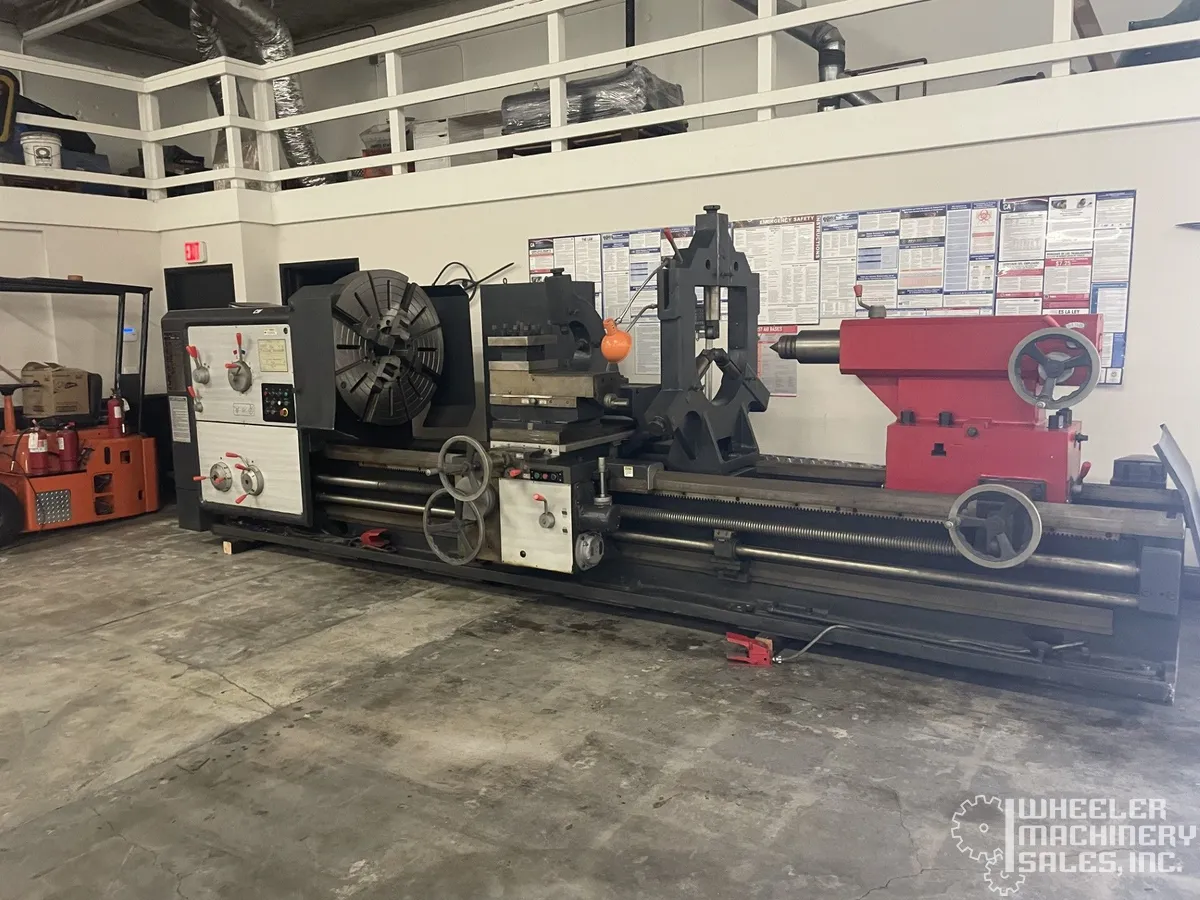

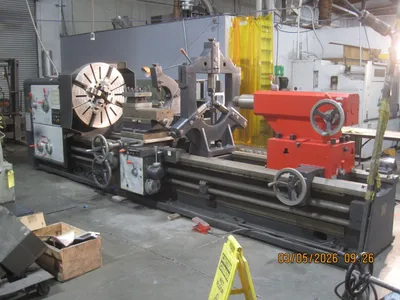

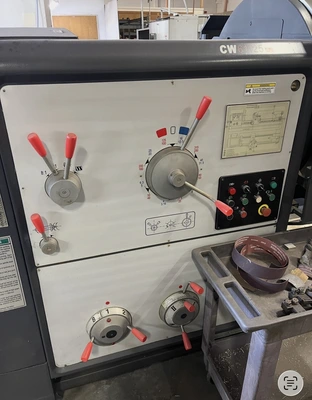

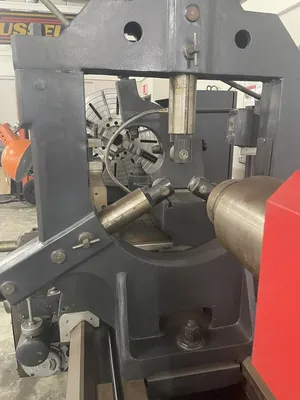

2013 SHENYANG 61125B Large Engine Lathe #8153 #2
Have one to sell?
$49,500.00 USD
ConditionUsed
1 available
2013 SHENYANG 61125B Large Engine Lathe. Model CW61125B, this used engine lathe offers sturdy, reliable performance for various machining needs. Ideal for workshops requiring heavy-duty lathe capabilities. Perfect addition for enhancing productivity.
2013 SHENYANG 61125B Large Engine Lathe #8153 #2
SPECIFICATIONS:
Swing over bed: 49.21 inches (1250 mm)
Distance between centers: 118.11 inches (3000 mm)
Swing over cross slide: 35 inches (890 mm)
Spindle bore diameter: 5.11 inches (130 mm)
Front taper of spindle hole: 5.51 (inches) Metric 140
Number of forward spindle speeds: 21
Number of reverse spindle speeds: 12
Range of tool post feed per spindle revolution: 56
Longitudinal feeds: 0.0039 - 0.47 inches (0.1 - 12 mm)
Cross feeds: 0.0019 - 0.23 inches (0.05 - 6 mm)
Upper tool post feed: 0.00098 - 0.118 inches (0.025 - 3 mm)
Metric thread pitch range: 44 kinds, 0.039 - 4.72 inches (1 - 120 mm)
Inch thread range: 31 kinds, 24 - 1/4 t.p.i
Module thread range: 45 kinds, 0.019 - 2.36 inches (0.5 - 60 mm)
Diametral pitch thread range: 38 kinds, 1/2 - 56 DP
Saddle travel: Workpiece length minus 1.96 inches (50 mm)
Cross travel of lower tool post: 20.47 inches (520 mm)
