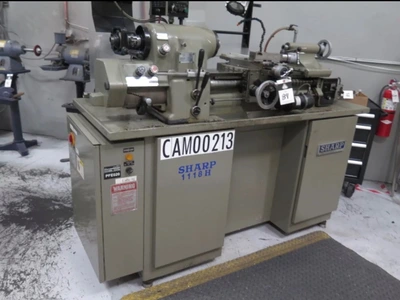

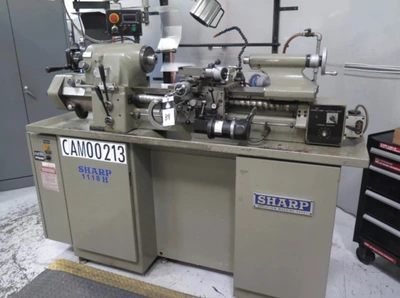

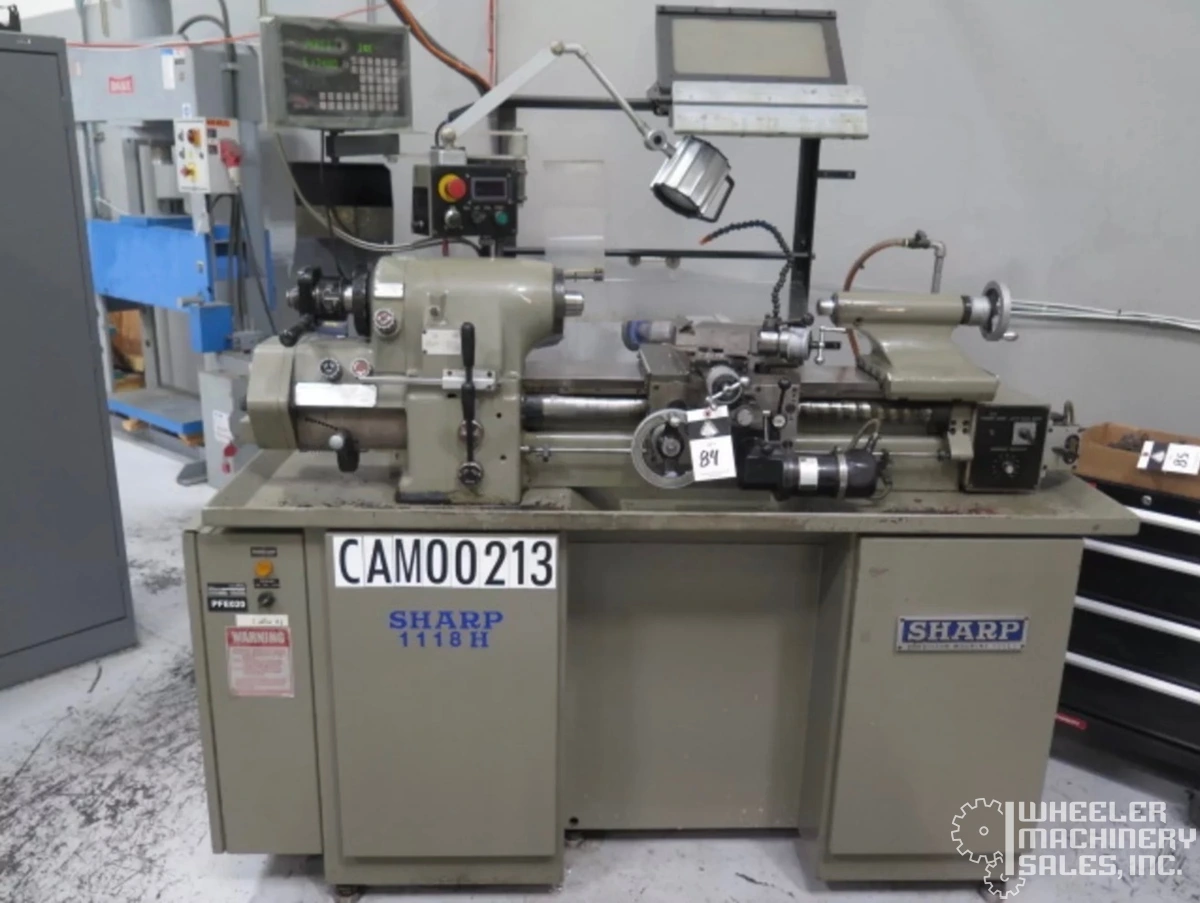

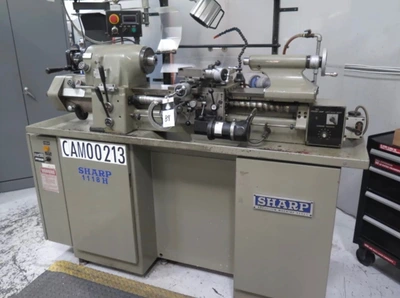

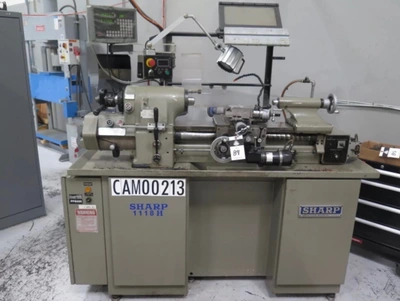

2003 SHARP 1118H Precision Toolroom Lathe #8142 #2

2003 SHARP 1118H Precision Toolroom Lathe #8142 #2

SPECIFICATIONS:
Capacity:
Swing over bed: 11”
Swing over carriage: 9”
Swing over cross slide: 6”
Distance between centers: 18”

Spindle:
With round 5C collets: 11/16”
With hexagon 5C collets: 7/8”
With square 5C collets: ¾”
With expanding chucks: 3”
With step chucks: 1-1/16 – 6”
With jaw chucks: 5”
Spindle speed range (infinitely variable): 130-4,000 rpm
Spindle nose taper (inside): 5C (10°)
Spindle nose taper (outside): 4°
Spindle bore: 1 “

Travel & Feed Range:
Cross slide travel: 6”
Compound slide travel: 3”
Quick-action compound slide travel: 0.1”
Carriage power feed range: 5/16-7”
Cross slide power feed range: 5/16-4”

Threading:
Leadscrew pitch, diameter: 8 tpi, 1”
Inch threads (36): 11-108
Metric threads (36): 0.275-2.7

Tailstock:
Tailstock spindle diameter: 1.358”
Tailstock spindle taper: MT #2
Tailstock spindle travel: 3.75”

General:
Main motor: 5HP (digital variable speed)
Coolant pump motor: 0.25 hp
Feed Motor (DC): 75 watt, 110 volt
Coolant tank: 5 gallon
Dimensions: (WxDxH): 73” x 30” x 75”
Net weight (approximately): 2,300 lbs.
