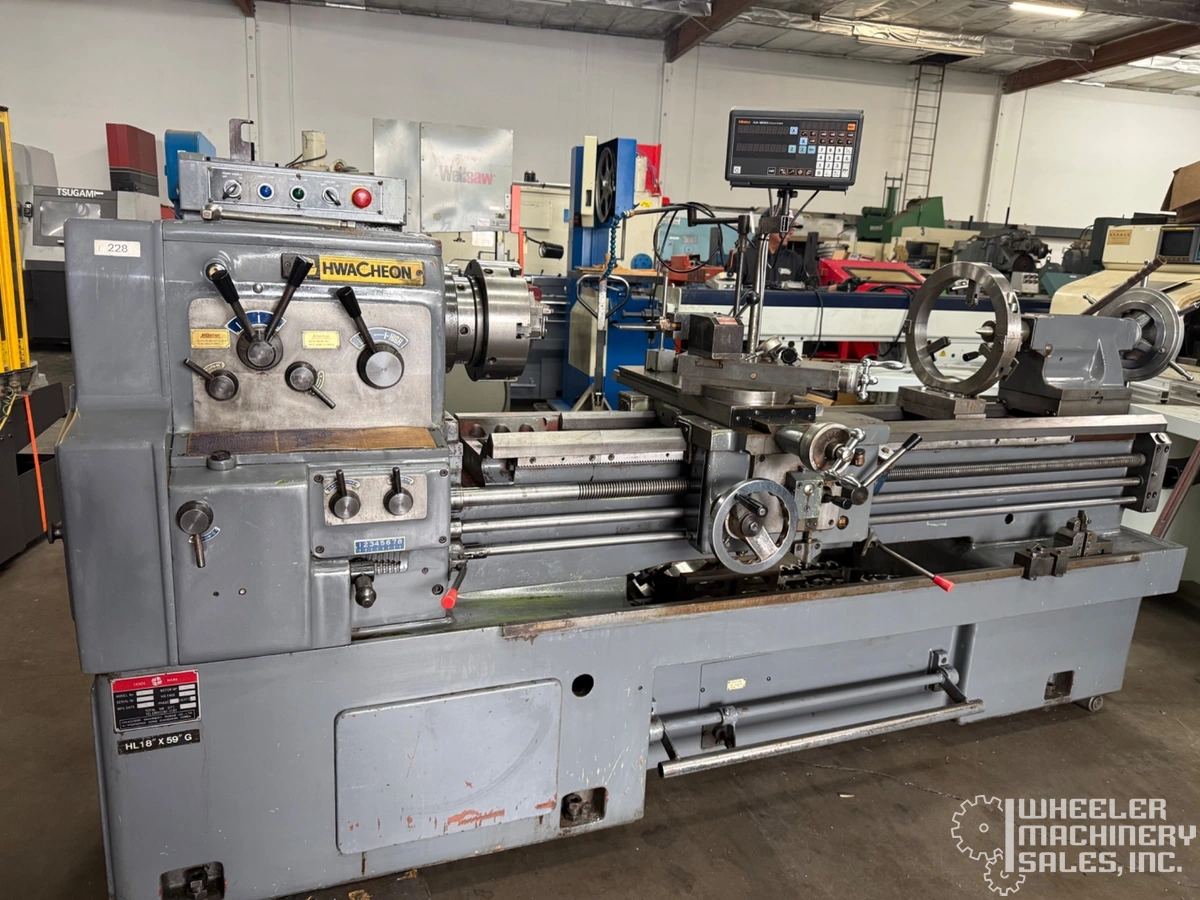

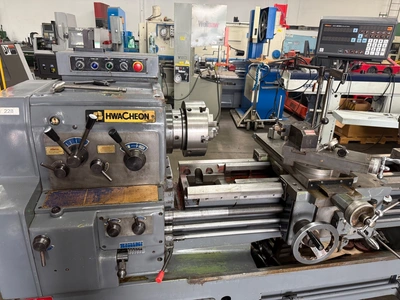

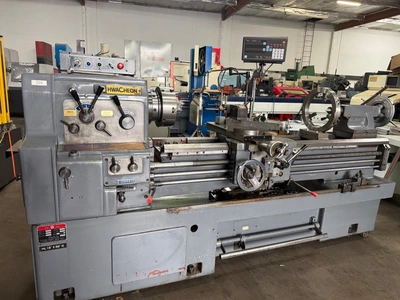

1995 HWACHEON HL18X59G Engine Lathe #8093 #1
Have one to sell?
$18,500.00 USD
ConditionUsed
1 available

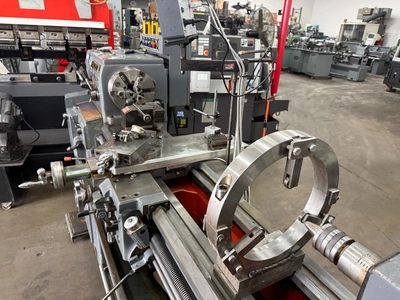

Used HWACHEON HL-18 Engine Lathe, featuring an 18" swing, 60" centers, and a 3.062" spindle bore. Powered by 7.5 hp with up to 1,800 RPM. Swing over cross slide is 12.5". Ideal for precision tasks.
1995 HWACHEON HL18X59G Engine Lathe #8093 #1
SPECIFICATIONS:
Swing over bed: 18"
Swing over cross slide: 11"
Swing over gap: 25"
Distance between centers: 594"
Spindle nose: D1-6
Spindle bore: 2-3/64"
Taper of spindle bore: MT no. 6
Taper of center: MT no. 4
Number of spindle speeds: 12
Range of spindle speeds (RPM): 32, 62, 82, 112, 160, 200, 285, 395,
510, 710, 1010, 1800
Number of feed changes: 40
Cross slide travel: 10"
Gap width: 7-7/8"
Bed width: 13-3/4"
Inch threads: 4 to 80 TPI
Metric threads: .5 to 7 mm
Weight approx. 5,200 lbs.
Overall dimensions approx. 114" L-R x 42" F-B x 55" H
EQUIPPED WITH:

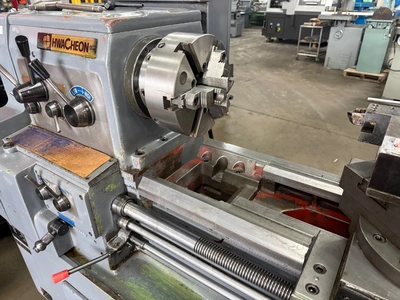

3 & 4 jaw chucks
Mitutoyo digital readout
Selector switch for on - off
Coolant pump with control
Emergency stop treadle
Approx. 7.5 HP 240 volts motor
