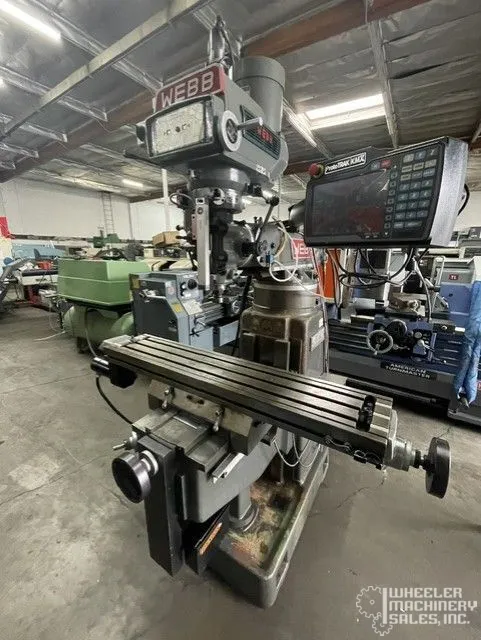

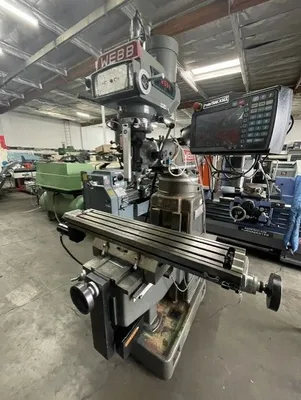

Webb Champ 4VH Vertical Mill w/ Prototrak KMX Control #8092 #1
SPECIFICATIONS:

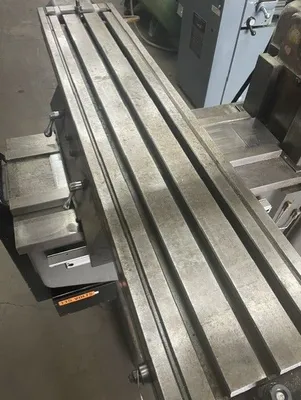

Table size (3) t-slots: 10" x 50"
Travels:
Longitudinal (X): 36"
Cross (Y): 16"
Vertical (Z) (knee): 16"
Ram: 24"
Quill: 5"

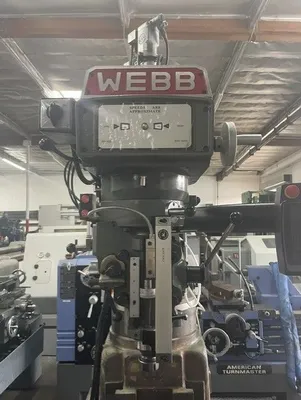

Spindle:
Spindle speeds (2 ranges) (varible): 60 - 4200 RPM
Spindle feeds (3): .0015, .003, .006 IPM
Spindle taper: 30 Taper
Dimensions:
Overall dimensions (est): 50"LR x 80"FB x 83"H
Weight (est): 2,500 lbs
Motor

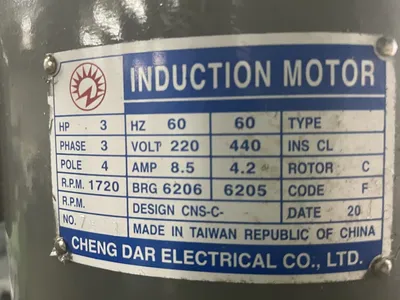

3 HP 220/440 3/60 Spindle motor
EQUIPPED WITH:
Prototrak 2-Axix KMX Control
Auto Lubrication
This equipment has been sold. Similar equipment available now is shown below.
