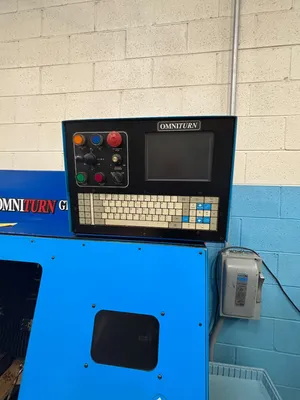

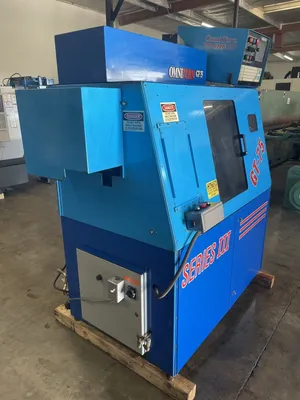

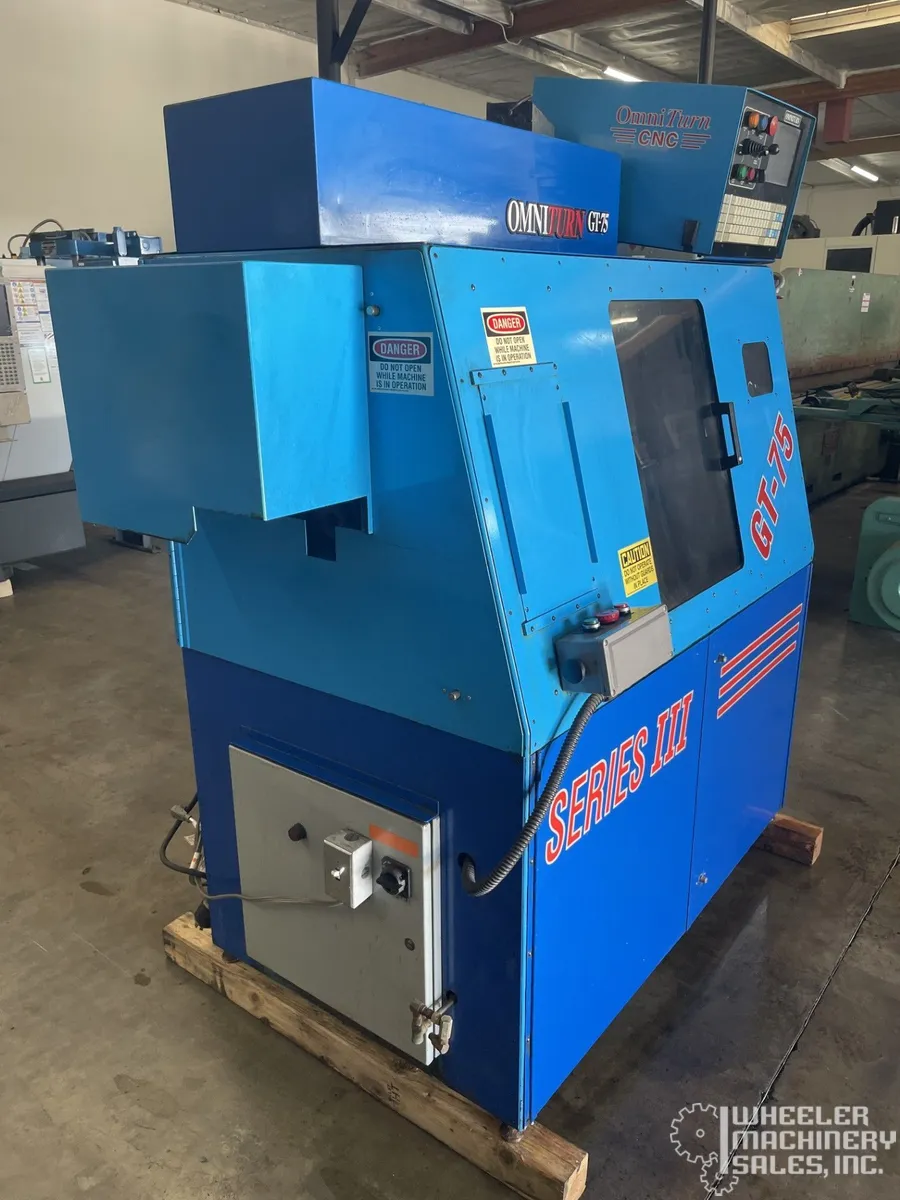

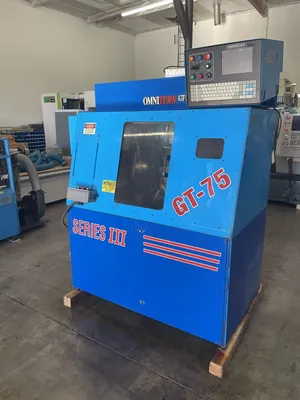

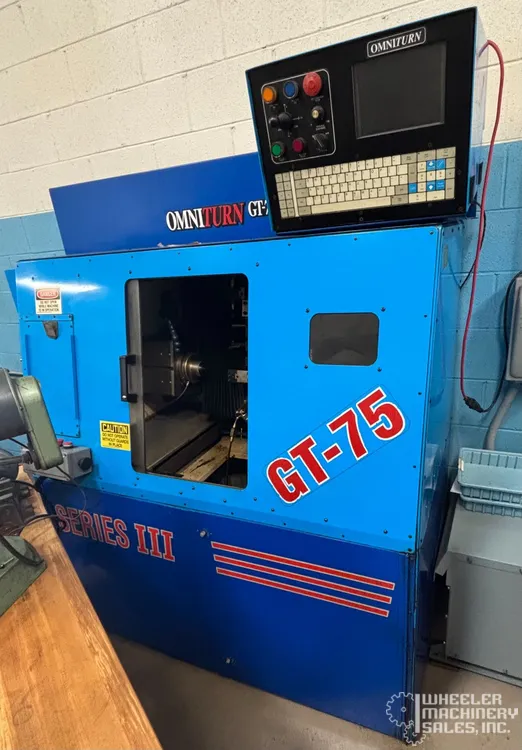

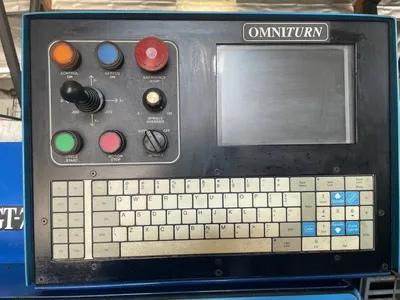

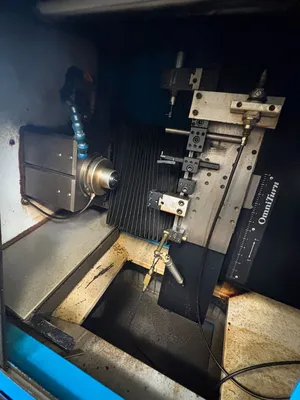

OMNITURN GT75 SERIES III CNC GANG LATHE #8078 #2

OMNITURN GT75 SERIES III CNC GANG LATHE #8078 #2

SPECIFICATIONS:
Capacities
Workholding: 5C Collet
Max. Cutting Diameter: 6”
Max. Bar Diameter: 1.06”

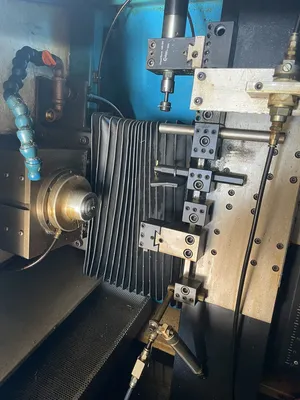

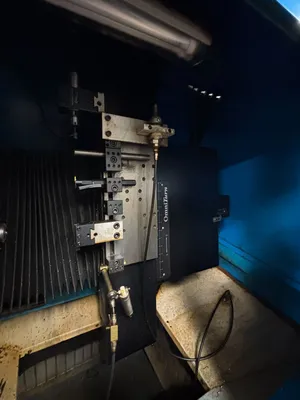

Tooling Plate: 6” x 14” with 3/8” T-Slot
Tooling height center of spindle to tool plate: .5”

Spindle
Max Speed: 4,000 rpm
Max Rating: 5 hp
Spindle Nose: 5C w/4° camlock
Drawtube Bore: 1.125”
C-Axis 3HP servo motor: .001 – 4000 rpm
Positioning resolution: .01 degree

Construction
Ways: Precision Linear Guides
Ball Screws: Precision-ground, Zero Backlash
Base Billet: MJ7 Composite Casting
Headstock: Mehanite
Coolant Pump: 1/8hp 5gpm (1/4hp 20gpm opt.)

Travels & Feed rates
X-Axis: 12”
Z-Axis: 9”
Resolution of Slide Travel: 0.00005”
Repeatability of Slide Travel: 0.0001”
Threading: 240tpi to 0.5tpi (2”pitch)
Axes Thrust: 500lbs cont. 750lbs int.
Max Rapid: 300ipm
Max Cutting: 300ipm

General
Machine Weight: 1,650 lbs.
Air Required: 3 scfm @ 60 - 100 psi
Electrical: 208 - 240 VAC, 3 phase @ 20A
Floor Space: 34” x 66” (75” high)
