| Capacity (ga) | 14 gauge | 14 gauge |
| Overall Length | 10' | 3 m |

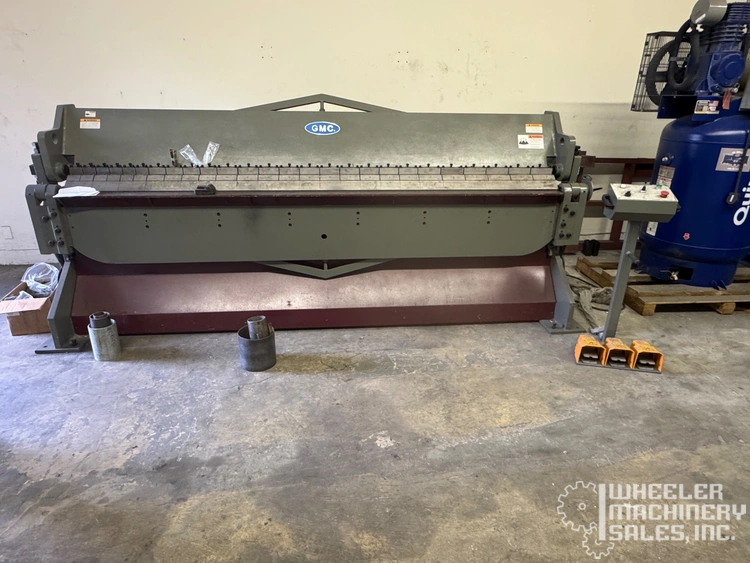

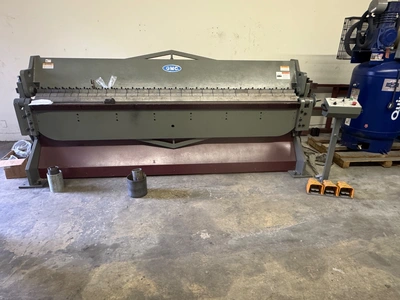

2021 GMC HBB-1014, 10 ft Hydraulic Sheet Metal Brake 14 Gauge
Max Bending Length:
10'
Bending Capacity:
Mild Steel(hot roll), 60k PSI
Stainless Steel 85k PSI
Soft aluminum 28k PSI
14 Ga.
16 Ga.
10Ga.
Open hem max thickness x 10’
Close hem max thickness x 10
22Ga
28Ga
Bend Degree:
135
Max. Box Depth:
153mm=6.02”
Large Beam Opening:
3"
Manual Back Gauge:
26”
Oil Tank Gal.
17 Gal
Hydraulic Oil:
Shell #68 or equivalent
Main Motor
5 HP 3 Phase
Prewired: 220VAC 20A
Optional: 440VAC 10A
Weight
6,850 lbs.
Shipping Weight:
6,950 lbs.
Overall Dimensions
142" x 46" x 66"
Shipping Dimensions:
153” x 41” x 67”
