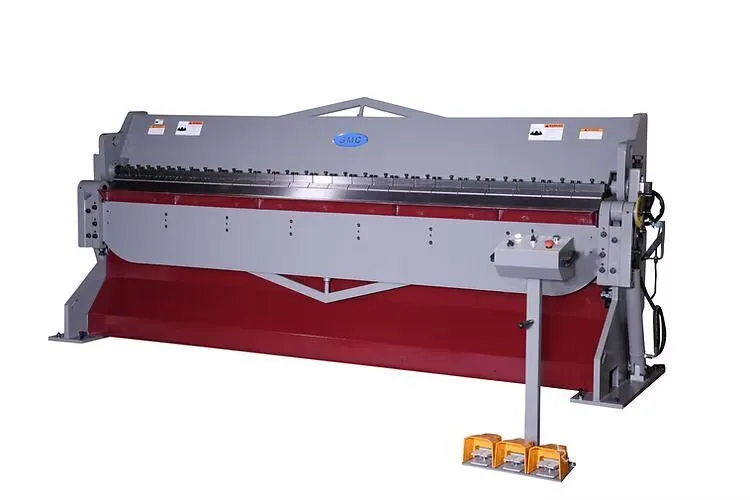

Discover precision with the new GMC HBB-1014 Hydraulic Brake. It offers a 10-foot length, 14-gauge capacity, and features like hydraulic clamping and a manual back gauge. Ideal for bending mild steel, aluminum, and stainless steel.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Max Bending Length: 10'
Bending capacity:
mild steel(hot roll), 60K PSI 10’x 14Ga
stainless steel, tensile 85K PSI 10’x 16Ga
soft aluminum, tensile 28KPSI 10’ x 10Ga
Minimum material thickness 26GA
Open hem max thickness x 10’ 22GA
Close hem max thickness x 10’ 28GA
Straight Finger Lenght: 10'1"
Bend Degree: 135
Max. box & pan depth with 4" Optional sort of fingers
Large Beam Opening: 3"
Manual Back Gauge: 26”
Oil Tank Gal. 17 Gal.
Hydraulic Oil: Shell #68 or equivalent
Main Motor 5 HP 3 Phase Prewired: 220VAC 20A Optional: 440VAC 10A
Weight 6,850 lbs.
Shipping Weight: 6,950 lbs.
Overall Dimensions 142" x 46" x 66"
Shipping Dimensions: 153” x 41” x 67”
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
