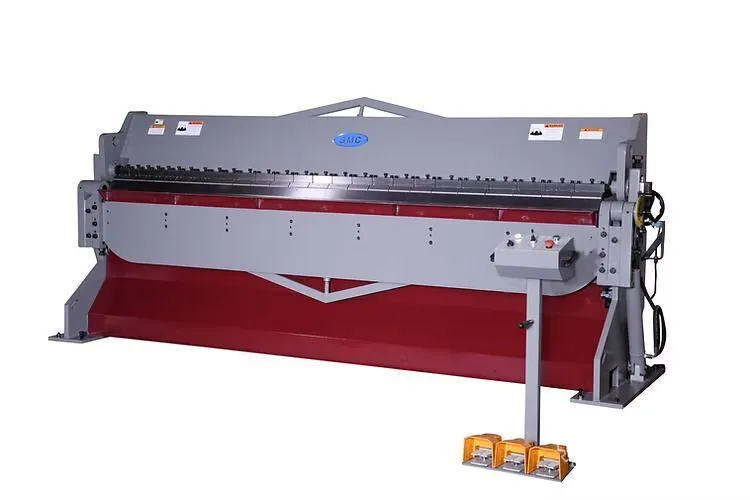

New GMC HBB-0610 6ft Sheet Metal Hydraulic Box and Pan Brake

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Max Bending Length: 6’
Bending Capacity:
Mild Steel (hot roll) 60k PSI 10 Ga.
Stainless Steel 85k PSI 12 Ga.
soft aluminum 28K PSI 1/4"
Minimum material thickness 26Ga.
Opening hem max thickness 20Ga x 6'
Closing hem max thickness 22Ga x 6'
Bend Degree: 135
Max. Box Depth: 153mm=6.02”
Large Beam Opening: 3"
Manual Back Gauge: 26”
Oil Tank Gal. 12 Gal.
Hydraulic Oil: Shell #68 or equivalent
Main Motor 5 HP 3 Phase Prewired: 220VAC 15A Optional: 440VAC 10A
Weight 5,000 lbs.
Shipping Weight: 5,050 lbs.
Overall Dimensions 91" x 46" x 67"
Shipping Dimensions: 105” x 40” x 66”
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode

This machine is not made to Hem over 22 GA.
This machine can hem light duty gauge up to 24 GA. with the purchase of a one piece finger.
