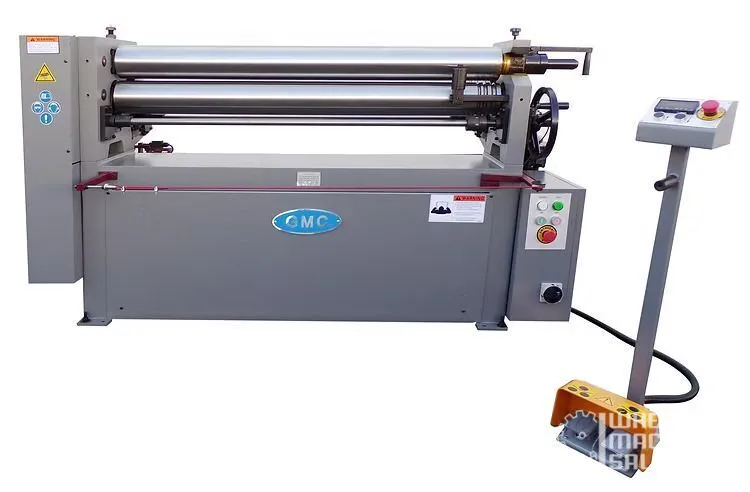

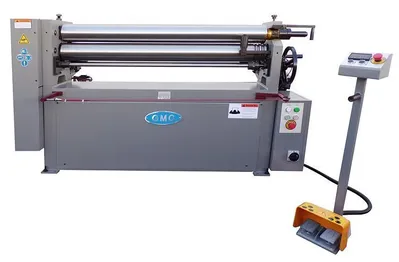

New GMC PBR-0425E Power Bending Rolls offer robust rolling capabilities with a motorized system. Handle mild steel, stainless steel, and aluminum effortlessly, with adjustable cone attachment and safety features. Ideal for precise, efficient operations.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us
Capacity:
Mild Steel 4'3" x 1/4"
Stainless Steel 4’3” x 3/16"
soft aluminum 4’3” x 1/2"
min. thickness 26Ga.
Roll Dia. 6 1/4"
Min. Bending Dia. Inch 8 1/4"
Pre-bend inch 0.25"
Rolls Speed ft/min 20
Rolls Opening 1/2"
Main Motor 4HP 3PH 220V or 440V
Weight 3,850 lbs.
Overall Dimensions 78" x 33" x 52"
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
