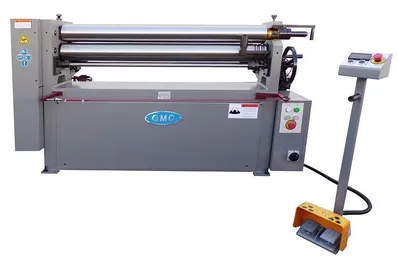

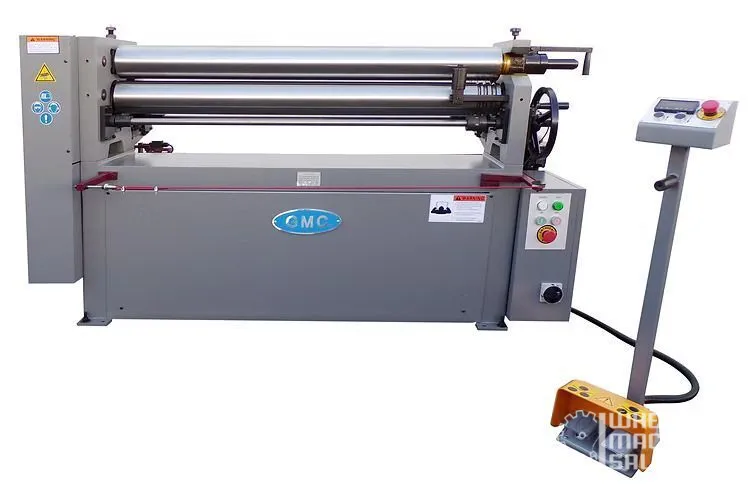

New GMC PBR-04316E Power Bending Rolls 4' x 3/6"
Have one to sell?
$15,850.00 USD
ConditionNew
1 available
New
Upgrade your workshop with the new GMC PBR-04316E Power Bending Rolls. Boasting a 4'3" x 3/16" mild steel capacity, 20 ft/min roll speed, motorized controls, and more, it's essential for precise metalwork. Contact us for information and support.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us
Capacity:
Mild Steel 4'3" x 3/16"
stainless steel 4’3” x 10Ga
soft aluminum 4'3" x 5/16”
Min. thickness 26GA
Roll Dia. 4 3/4"
Min. Bending Dia. Inch 6"
Pre-bend inch 0.16"
Rolls Speed ft/min 20
Rolls Opening 1/2"
Main Motor 3HP 3PH 220V or 440V
Weight 2,750 lbs.
Overall Dimensions 78" x 30" x 52"
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
