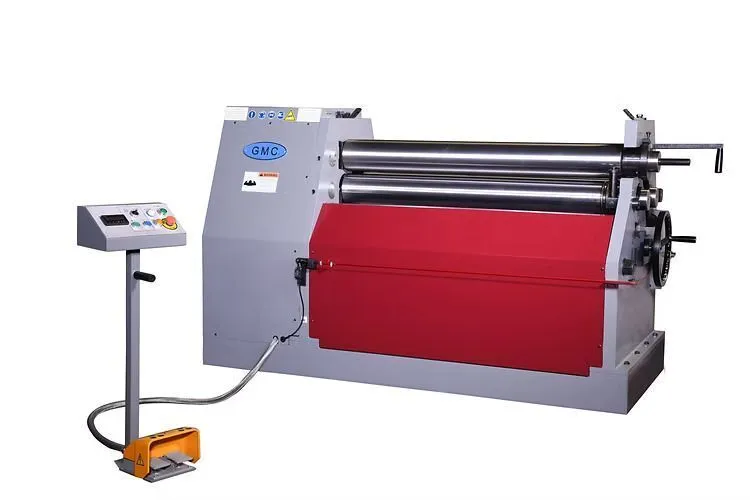

New GMC HBR-0525 5' x 1/4" Plate Rolls - Metal Rolling Machines
Have one to sell?
$25,850.00 USD
ConditionNew
1 available
New
Discover the new GMC HBR-0525 5' x 1/4" Plate Rolls, perfect for your metal rolling needs. With a robust design, roll mild steel, stainless, or aluminum effortlessly at a speed of 5 RPM. Weighing 5150 lbs with dimensions 102"x38"x58". Contact for details.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us
Roll Capacity:
Mild Steel 5' x 1/4"
stainless steel 5' x 3/16"
soft aluminum 5' x 3/8"
min. thickness 22GA
Min. Roll dia. 9"
Rolls Length 5' 2"
Rolls Dia. 7"
Pre-bend 0.18"
Rolls speed 5 RPM
Rolls Opening 1 1/2"
Oil Tank Cap. 45L = 12 Gal
Main Motor 5-1/2 HP,20 A/220V or 10A/440V
Weigth 5150lbs.
Dimensions 102" x 38" x 58"
