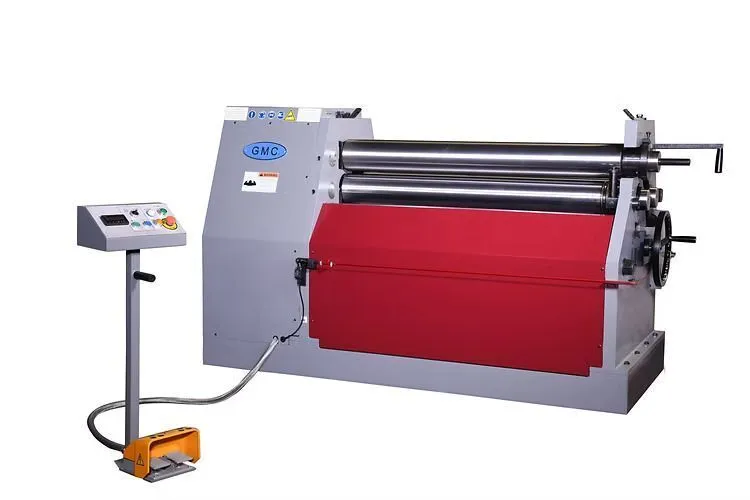

Discover precision with the new GMC HBR-0808 Plate Rolls, boasting an 8' length and 8-gauge capacity. Features include an LED position indicator, safety foot pedal, and a cone attachment. Compatible with phase converter for seamless operation.
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us
Roll Capacity:
Mild Steel 8' x 8Ga.
stainless steel 8' x 12 Ga.
soft aluminum 8' x 1/4"
min. thickness 22Ga.
Min. Roll dia. 7 1/2"
Rolls Length 8' 4"
Rolls Dia. 6 1/2"
Pre-bend 0.12"
Rolls speed 5 RPM
Rolls Opening 2 1/32"
Oil Tank Cap. 245L = 12 Gal
Main Motor 7 1/2 HP 25A/220V or 15A/440V
Weigth 8,150 lbs.
Dimensions 142" x 38" x 58"
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box
Cone attachment (to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
