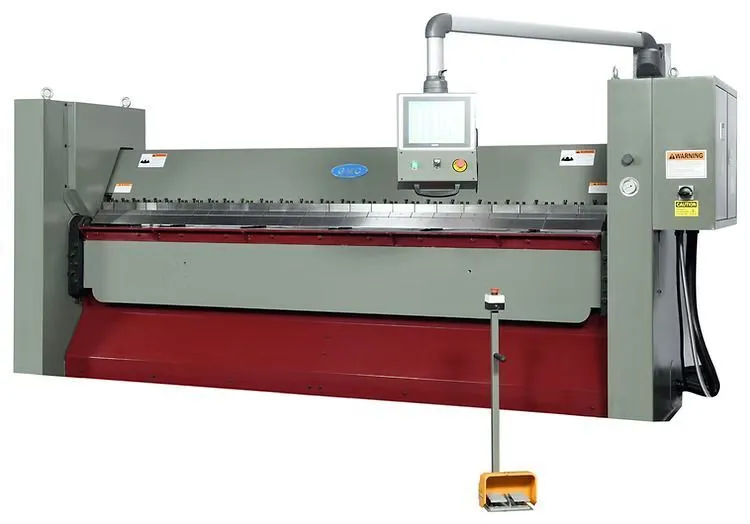

New GMC HBB-1010NC 10 ft. Hydraulic Box and Pan Brake with NC Controller

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Capacity:
Mild Steel(hot roll)60K PSI 10 Ga.
Stainless Steel 85 K PSI 14 Ga.
Soft aluminum 28K PSI 1/4"
Hemming max thickness: 22 Ga.
Bending length capacity 10'
Bend Angel Degree, programmable 135 degree
Max. Box Depth 153mm=6.02”
Large Beam Opening/Clamping Opening 3"
Beam front/back adjustment 1"
Min. Reverse Bend 1"
Max. Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/4"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Assorted fingers 3" 4" 5" 6"
Main Motor 10HP,220V/208V, 3ph (35amps)
Servo Motor for back gauge 1HP
Hydraulic Oil Tank Capacity: 32 Gal.
Recommended hydraulic oil: Shell #68 or equivalent
Machine Weight: 11,550 lbs.
Shipping weight: 11,850 lbs.
Machine Dimensions: 175" x 93" x 76"
Shipping Dimensions: 163" x 85" x 78"
