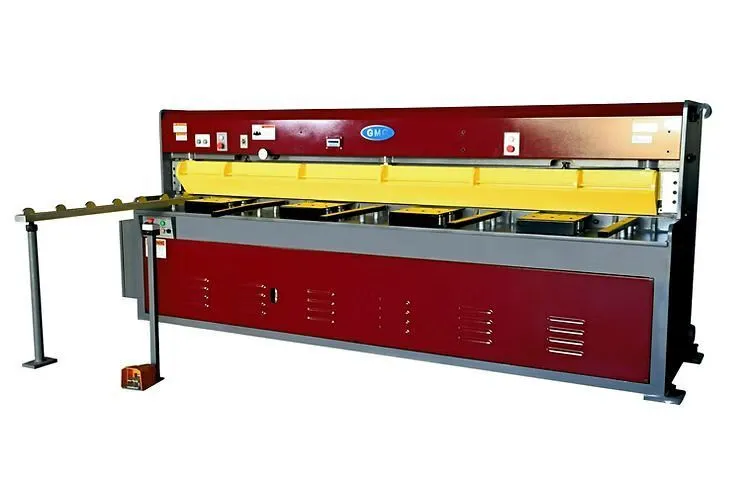

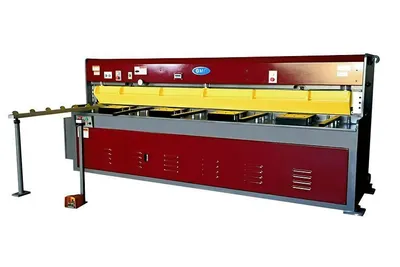

New GMC HS-0825E 8' x 1/4" Hydraulic Plate Shear - Electric Backgauge

Cutting capacity:
Mild steel 8’ x 1/4"
Stainless steel 8’ x 10 Ga.
soft aluminum 8' x 3/8"
min. thickness 20 Ga
Blade length 8' 2" = 98"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 36" SIKO powered B.G.
Blade rake angle 2 degree
Oil tank cap. 32 Gal
Main Motor 20 HP, 220V/70A - 440V/35A, 3 Phase
Powered B.G. Motor 1 HP, 220V/440V, 3 Phase
Machine weight 12,850 LBS
Machine dimensions 157" x 99" x 65"

36” German SIKO Front Operated Power Back Gauge
with micro adjustment , accuracy 0.004” inch/metric digital display.

1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
