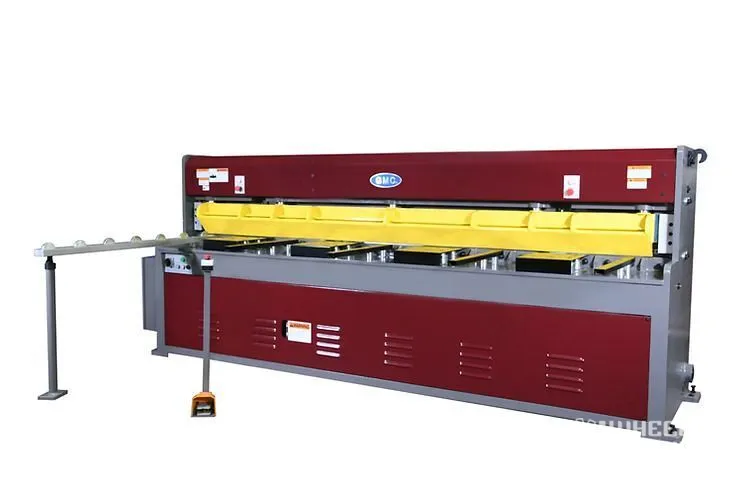

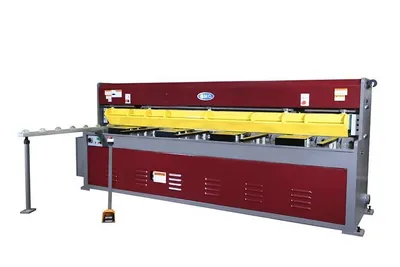

New GMC HS-1010M-10' x 10 Ga. Hydraulic Metal Shear - Shearing Machines

Cutting capacity:
Mild steel 10’ x 10 Ga.
Stainless steel 10’ x 14 Ga.
soft alumnium 10'x 1/4"
min. thickness 24 Ga
Blade length 10' 1" = 121"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 24" Manual B.G.
Blade rake angle 2 degree
Oil tank cap. 26 Gal
Main Motor 7 1/2 HP 3 Phase Prewired: 220V/35A Optional: 440V/20A
Machine weight 8,850 LBS
Machine dimensions 178" x 67" x 65"

HS-1010M comes with 24” manual back gauge, one side handwheel operate )
adjustment 0.004” , inch/mm digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
